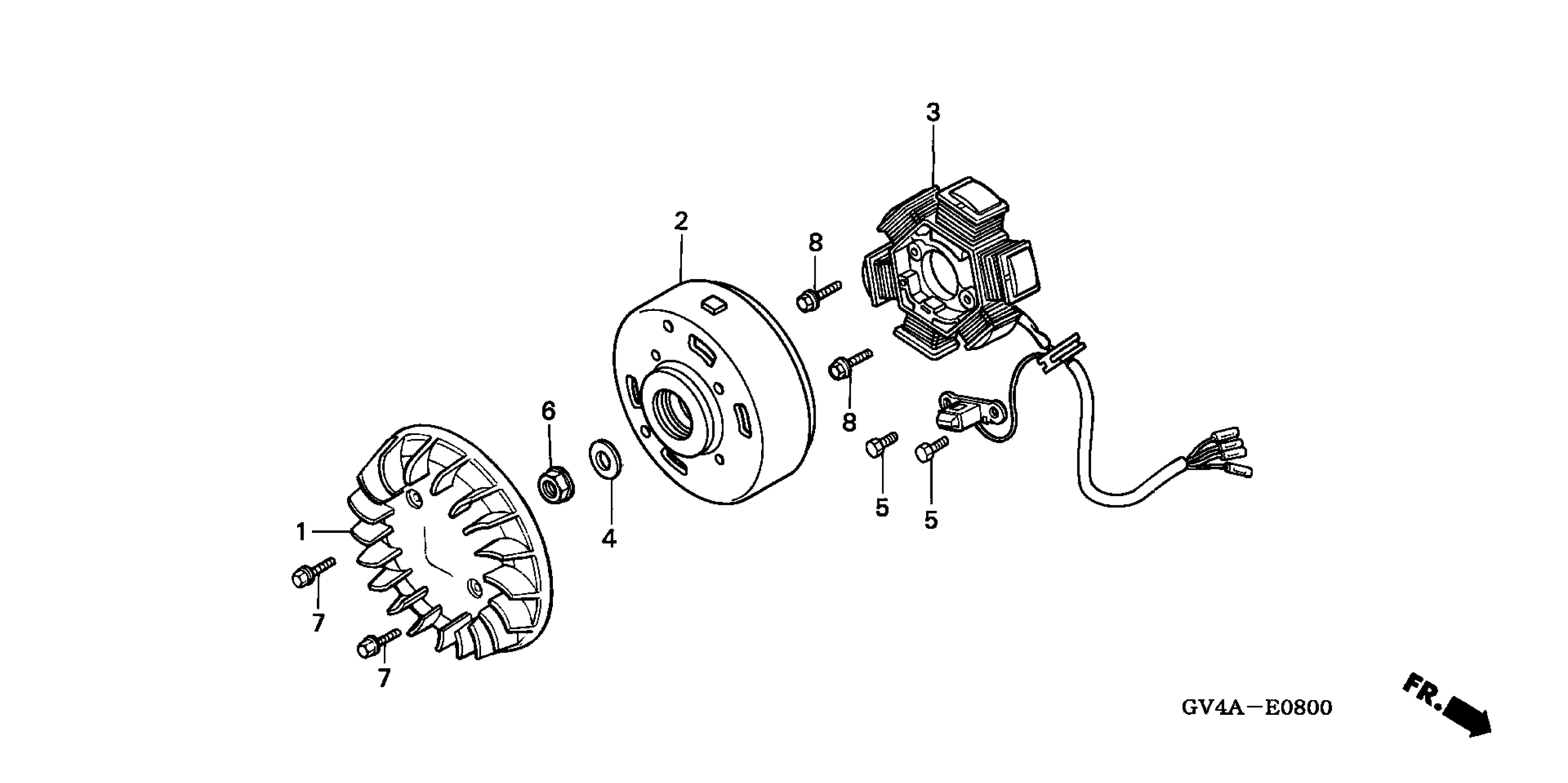

Honda CH80A (07) ELITE 80, MEX, VIN# 3H1HF030-7D200001 ALTERNATOR Diagram

#

Description

Price

1

FAN, COOLING

19520-GE1-711

Unavailable

2

FLYWHEEL (C.D.I.) (MITSUBA)

31110-GV4-A41

Unavailable

3

STATOR (C.D.I.) (MITSUBA)

31120-GV4-A41

Unavailable

4

WASHER, MAGNET FIXING

90426-035-000

$2.57

5

BOLT, HEX. (5X8)

92101-05008-0A

$1.49

6

NUT, FLANGE (10MM)

94050-10000

$1.59

7

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

8

BOLT, FLANGE (6X18)

96001-06018-00

$1.80
