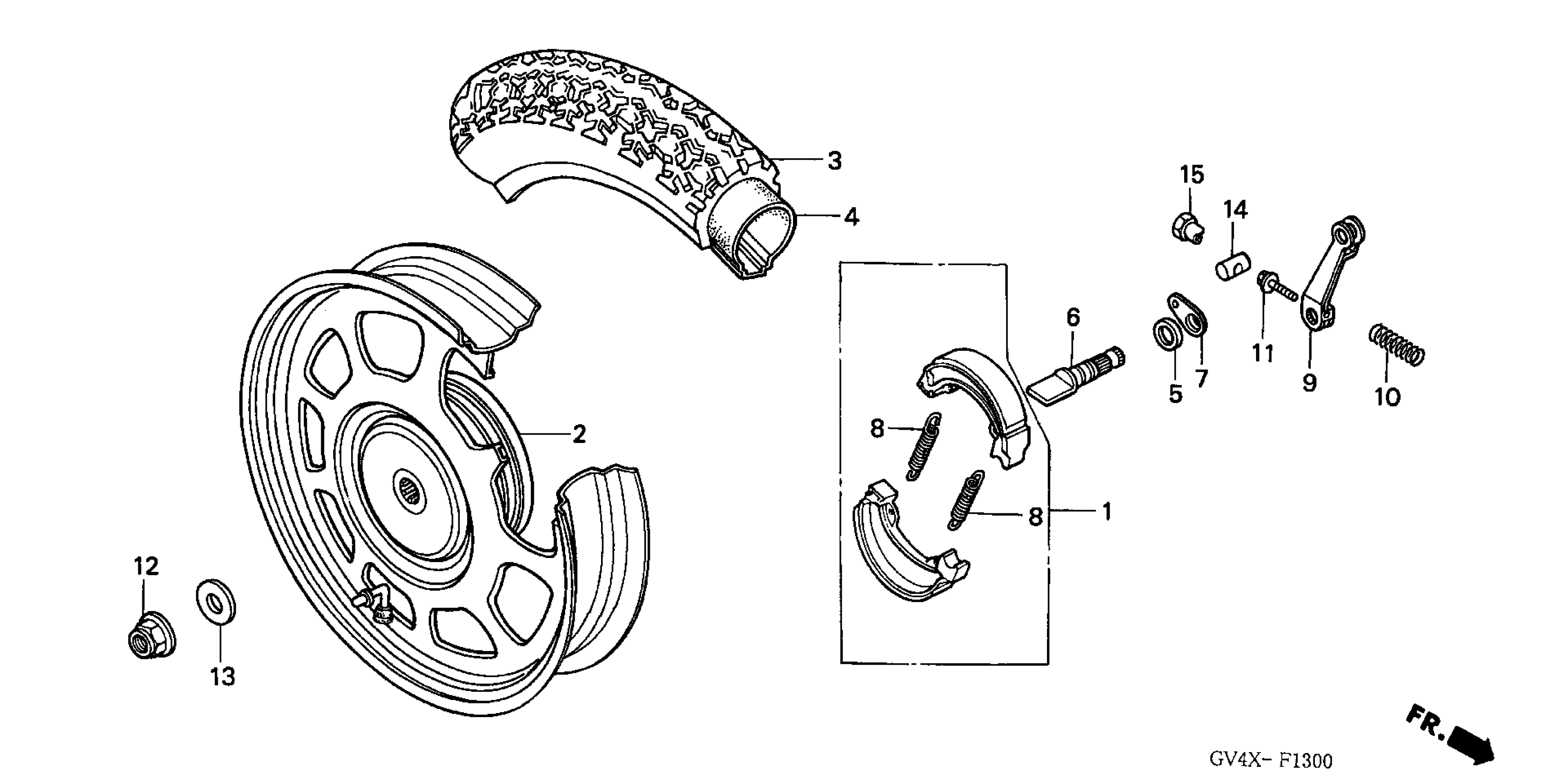

Honda CH80A (06) ELITE 80, MEX, VIN# 3H1HF030-6D100001 TO 3H1HF030-6D199999 REAR WHEEL Diagram

SHOE SET, BRAKE (ASK)

06430-GCW-000

$27.00

WHEEL, RR. *NH35M* (CLOUD SILVER METALLIC)

42650-GE1-772ZA

Unavailable

TIRE (3.50-10) (4PR/51J 3R) (IRC) This part replaces 42711-GC8-676.

42711-GC8-679

Unavailable

TIRE (3.50-10) (4PR/51J 3R) (IRC)

42711-GC8-679

Unavailable

TUBE, TIRE (3.50-10) (INOUE)

42712-GC8-005

Unavailable

SEAL, BRAKE CAM

43134-196-000

$2.33

CAM SET, RR. BRAKE

43140-GE0-711

$19.12

INDICATOR, RR. BRAKE

43145-GN2-000

$3.90

SPRING, BRAKE SHOE

43151-GC4-000

$4.45

ARM, RR. BRAKE

43410-GK1-010

Unavailable

SPRING, RR. BRAKE ARM

43472-KG8-000

$3.48

BOLT, FLANGE (5X25)

90112-GG2-900

$4.20

NUT, U (16MM)

90305-GW2-711

$14.71

WASHER (16MM)

90501-KBN-900

$11.15

JOINT A, BRAKE ARM

95015-31001

$1.46

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.28
