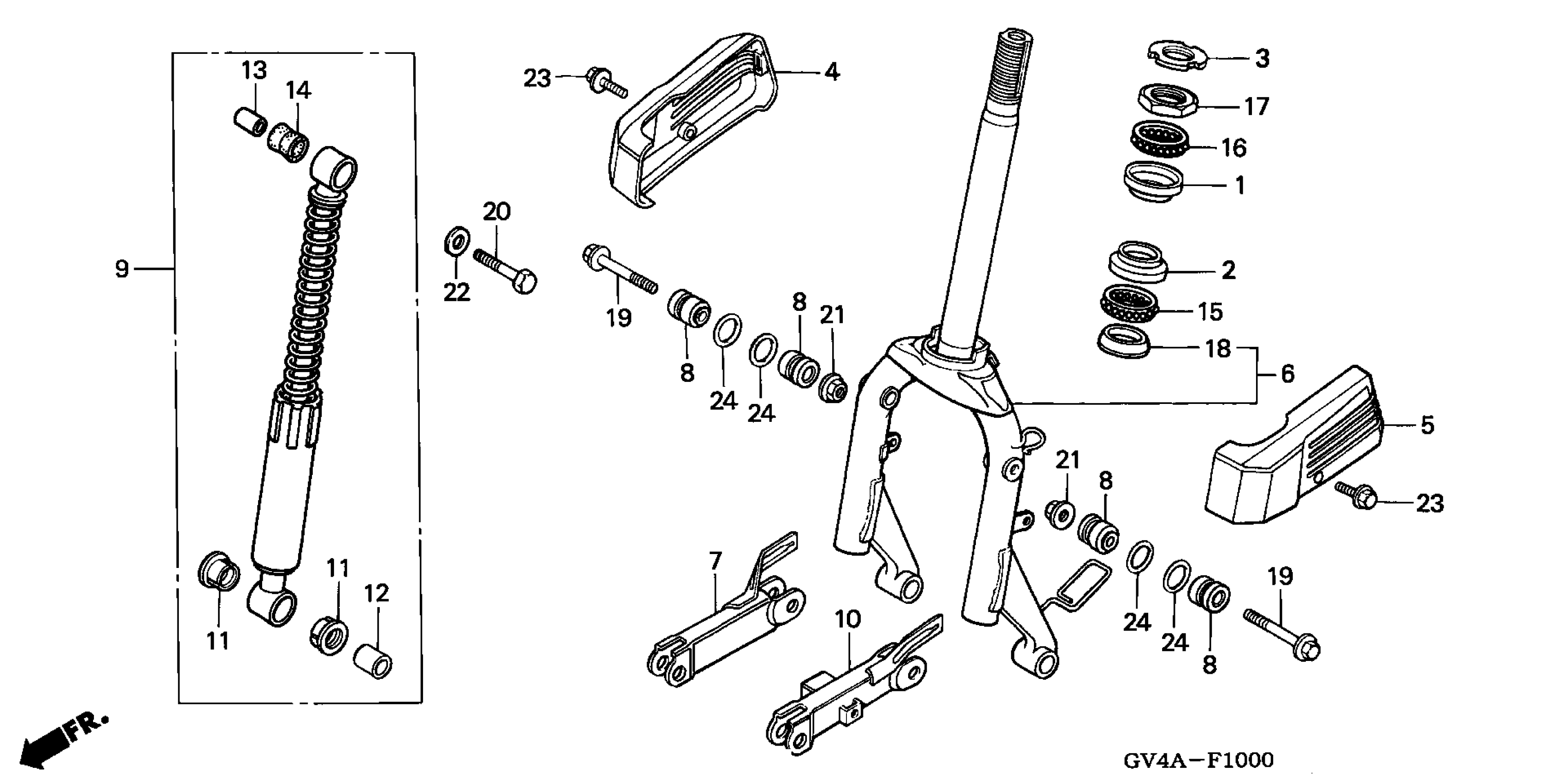

Honda CH80A (06) ELITE 80, MEX, VIN# 3H1HF030-6D100001 TO 3H1HF030-6D199999 FRONT FORK Diagram

#

Description
Price

1

RACE, STEERING BALL (UPPER) (MITSUBOSHI)

50301-147-003

$12.16

1

RACE, STEERING BALL (UPPER)

50301-GM0-000

$12.16

2

RACE, STEERING BALL (LOWER)

50305-GC8-003

$11.64

3

NUT, STEERING STEM LOCK (MITSUBOSHI)

50306-147-003

Unavailable

4

COVER, R. PIVOT ARM

51103-GE0-700

$22.38

5

COVER, L. PIVOT ARM

51104-GE0-700

$23.03

6

FORK SET, FR. *NH1* (BLACK)

51110-GV4-305ZA

$171.00

7

ARM, R. FR. PIVOT *NH1* (BLACK)

51311-GC8-000ZA

Unavailable

8

BUSH, PIVOT ARM This part replaces 51314-GA7-000.

51314-GR1-003

Unavailable

8

BUSH, PIVOT ARM

51314-GR1-003

Unavailable

9

FORK ASSY., FR.

51400-GV4-901

Unavailable

10

ARM, L. FR. PIVOT *NH1* (BLACK)

51411-GC8-000ZA

Unavailable

11

BUSH, FR. FORK (LOWER) (SHOWA)

51413-GC8-003

$10.46

12

COLLAR, RUBBER BUSH (SHOWA)

51486-GC8-003

$4.48

13

COLLAR, CUSHION RUBBER BUSH (SHOWA)

52486-074-000

$3.77

14

RUBBER A, JOINT (SHOWA)

52489-331-003

$2.03

15

BALL ASSY., STEERING STEEL

53210-GG2-751

$15.03

16

BALL ASSY., STEERING STEEL

53210-GR1-751

$16.79

17

RACE, STEERING TOP CONE

53211-GC8-003

$14.68

18

RACE, STEERING CONE (LOWER) (MITSUBOSHI)

53212-GC8-003

$7.95

19

BOLT, FLANGE (8X48)

90111-GC3-000

$6.64

20

BOLT, HEX. (8X32)

90121-GC8-000

$4.93

21

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

21

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

22

WASHER, SPECIAL (8MM)

90443-GC8-000

$2.66

23

BOLT, FLANGE (5X9)

90508-GC8-000

$4.35

24

O-RING (16.8X1.9)

91347-PY3-000

$2.68

24

O-RING (16.8X1.9) This part replaces 91351-GA7-000.

91347-PY3-000

$2.68
