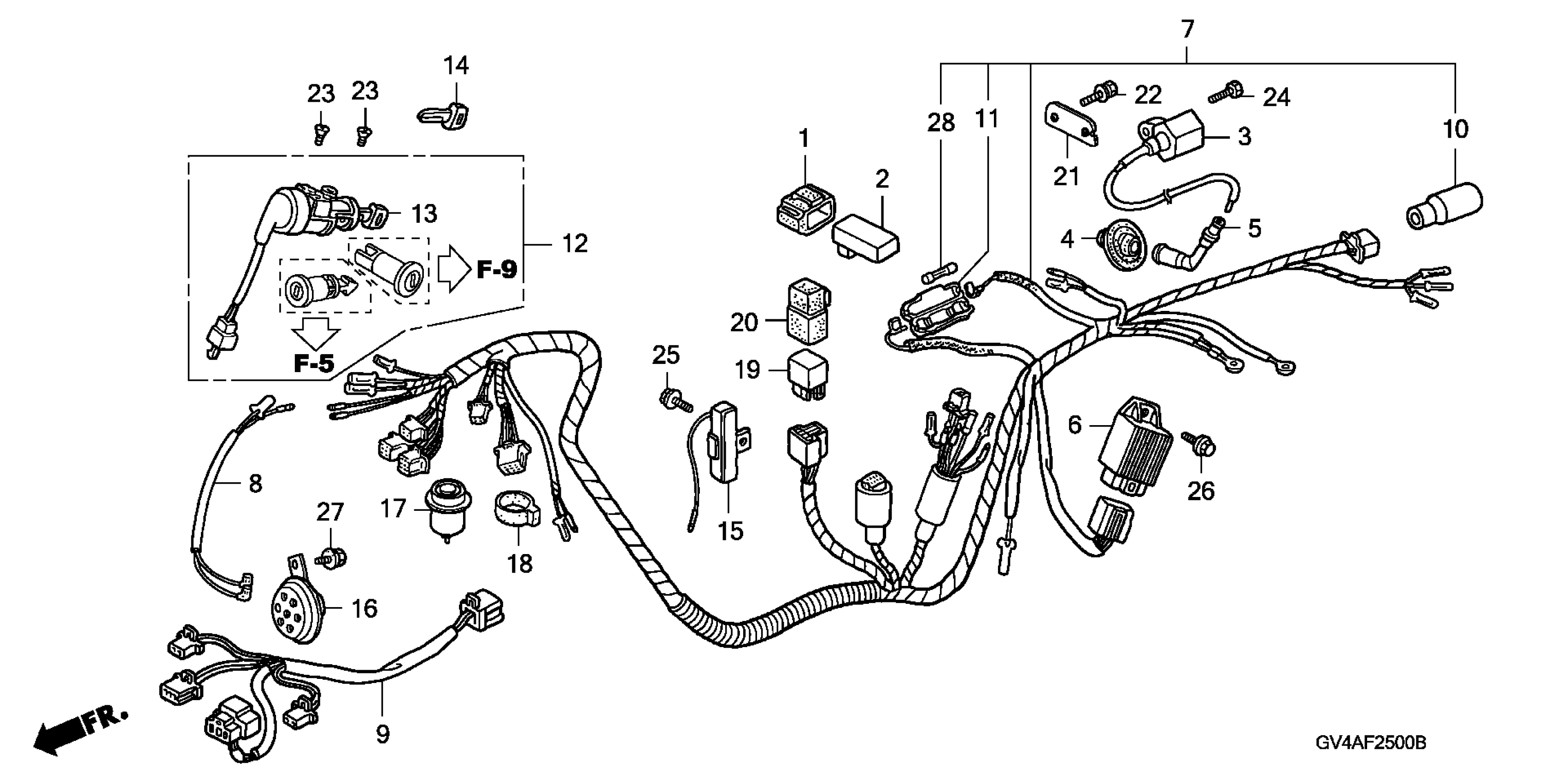

Honda CH80A (04) ELITE 80, MEX, VIN# 3H1HF030-4D900001 TO 3H1HF030-4D999999 WIRE HARNESS Diagram

#

Description
Price

1

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-GB6-000

$5.17

2

MODULE, IGNITION CONTROL (CDI)

30410-GE1-670

Unavailable

3

COIL, IGNITION This part replaces 30510-GE1-770.

30510-GE1-771

Unavailable

3

COIL, IGNITION

30510-GE1-771

Unavailable

4

SEAL, IGNITION

30605-GK1-000

Unavailable

5

CAP ASSY. This part replaces 30700-GK1-010.

30700-MG7-003

$14.30

5

CAP ASSY. This part replaces 30700-MG7-000.

30700-MG7-003

$14.30

6

RECTIFIER, REGULATE (SHINDENGEN)

31600-GW0-004

Unavailable

7

WIRE HARNESS

32100-GE1-770

Unavailable

8

SUB-WIRE HARNESS A

32101-GE1-670

Unavailable

9

SUB-HARNESS B

32105-GV4-A40

$28.75

10

COVER, WIRE HARNESS CONNECTOR

32108-003-000

$4.95

11

CASE, FUSE (10A)

32126-463-770

$10.51

12

LOCK SET

35010-GV4-901

Unavailable

13

SWITCH ASSY., COMBINATION & LOCK

35100-GE1-741

$83.21

14

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-MM8-811.

35121-MR1-770

$9.74

14

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-MR1-770

$9.74

14

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-402-811.

35121-MR1-770

$9.74

14

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-MM8-811.

35122-MR1-770

$9.74

14

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-MR1-770

$9.74

14

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-402-811.

35122-MR1-770

$9.74

15

RESISTOR ASSY.

35400-166-611

Unavailable

16

HORN (HIGH) This part replaces 38110-GJ1-731.

38110-KY0-621

Unavailable

16

HORN (HIGH) This part replaces 38110-KE5-601.

38110-KY0-621

Unavailable

16

HORN (HIGH) This part replaces 38110-KE8-601.

38110-KY0-621

Unavailable

16

HORN (HIGH)

38110-KY0-621

Unavailable

16

HORN (HIGH) This part replaces 38110-MB2-621.

38110-KY0-621

Unavailable

16

HORN (HIGH) This part replaces 38110-413-000.

38110-KY0-621

Unavailable

17

RELAY, TURN SIGNAL

38301-KM1-832

Unavailable

18

SUSPENSION, TURN SIGNAL RELAY

38306-292-000

$3.76

19

RELAY, STARTER (DENSO)

38501-KG8-003

$69.80

20

SUSPENSION, STARTER RELAY (DENSO)

38506-KG8-003

$8.08

21

STAY, IGNITION COIL

50175-GE1-670

Unavailable

22

BOLT-WASHER (5X14)

90101-SA7-000

$6.95

23

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

24

BOLT, HEX. (5X22)

92101-05022-0A

$1.49

25

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

26

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

27

BOLT, FLANGE (8X14)

95701-08014-00

$1.49

28

FUSE A (10A)

98200-11000

$1.80
