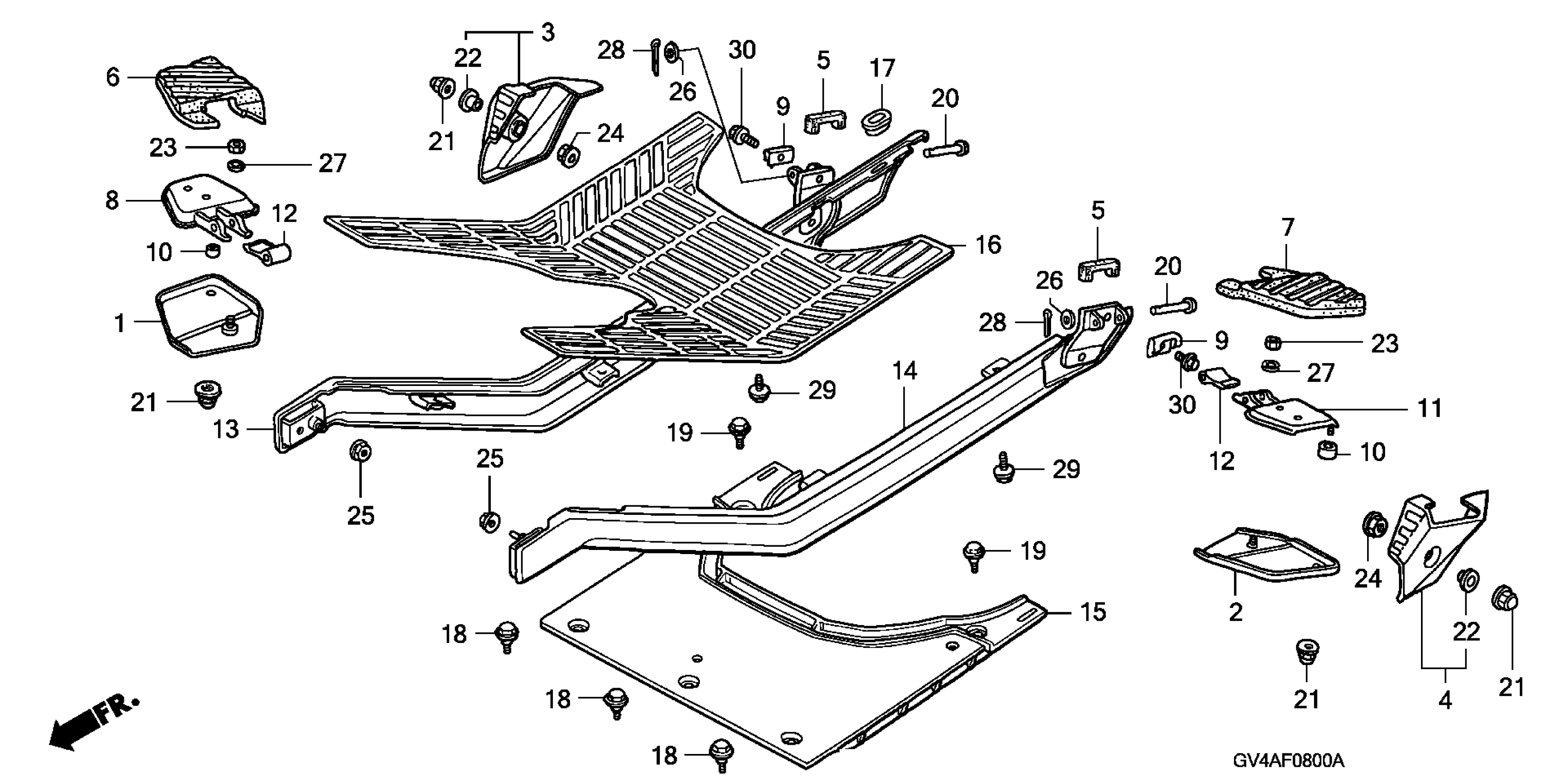

Honda CH80A (04) ELITE 80, MEX, VIN# 3H1HF030-4D900001 TO 3H1HF030-4D999999 FLOOR PANEL Diagram

#

Description
Price

1

COVER, R. PILLION STEP *NH138* (SHASTA WHITE)

50619-GV4-900ZH

$89.82

1

COVER, R. PILLION STEP *NH1* (BLACK)

50619-GV4-900ZG

$12.97

2

COVER, L. PILLION STEP *NH138* (SHASTA WHITE)

50620-GV4-900ZH

$71.00

2

COVER, L. PILLION STEP *NH1* (BLACK)

50620-GV4-900ZG

$75.69

3

COVER, R. PILLION STEP (LOWER) *NH138* (SHASTA WHITE)

50621-GE1-670ZD

Unavailable

3

COVER, R. PILLION STEP (LOWER) *NH1* (BLACK)

50621-GE1-670ZG

$11.17

4

COVER, L. PILLION STEP (LOWER) *NH138* (SHASTA WHITE)

50622-GE1-670ZD

Unavailable

4

COVER, L. PILLION STEP (LOWER) *NH1* (BLACK)

50622-GE1-670ZG

$21.11

5

RUBBER, PILLION STEP STOPPER

50623-GE1-670

Unavailable

6

RUBBER, R. STEP *NH158R* (CARBON GRAY)

50710-GV4-900ZC

Unavailable

7

RUBBER, L. STEP *NH158R* (CARBON GRAY)

50712-GV4-900ZC

Unavailable

8

BASE, R. PILLION STEP

50715-GV4-900

$31.49

9

SPRING, PILLION STEP

50716-GE1-000

Unavailable

10

SPACER, PILLION STEP

50717-GE1-000

$2.92

11

BASE, L. PILLION STEP

50718-GV4-900

$36.44

12

COVER, STEP BASE

50719-GE1-000

Unavailable

13

RAIL, R. SIDE *NH138* (SHASTA WHITE)

64306-GV4-900ZG

$173.69

13

RAIL, R. SIDE *NH1* (BLACK)

64306-GV4-900ZF

$194.77

14

RAIL, L. SIDE *NH138* (SHASTA WHITE)

64307-GV4-900ZG

$51.93

14

RAIL, L. SIDE *NH1* (BLACK)

64307-GV4-900ZF

$60.10

15

PANEL, FLOOR

64310-GE0-000

$87.52

16

FLOOR MAT *NH158R* (CARBON GRAY)

64315-GV4-900ZC

$59.57

17

GROMMET, COVER SETTING

83503-GE0-000

$4.25

18

BOLT, FLANGE (6MM)

90111-147-000

$2.75

19

BOLT, FLANGE (6MM)

90111-187-000

$5.59

20

PIN, PILLION STEP

90131-GE1-670

$4.30

21

NUT, CAP (6MM)

90201-GE1-670

Unavailable

22

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

23

NUT, HEX. (4MM)

94001-04000-0S

$1.49

24

NUT, FLANGE (6MM)

94050-06000

$1.49

25

NUT-WASHER (6MM)

94070-06080

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

26

WASHER, PLAIN (6MM)

94101-06800

$1.49

27

WASHER, SPRING (4MM)

94111-04800

$1.49

28

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

28

PIN, COTTER (1.6X25)

94201-16250

$1.49

29

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

30

BOLT, FLANGE (6X12) This part replaces 95700-06012-07.

95701-06012-07

$1.62

30

BOLT, FLANGE (6X12)

95701-06012-07

$1.62
