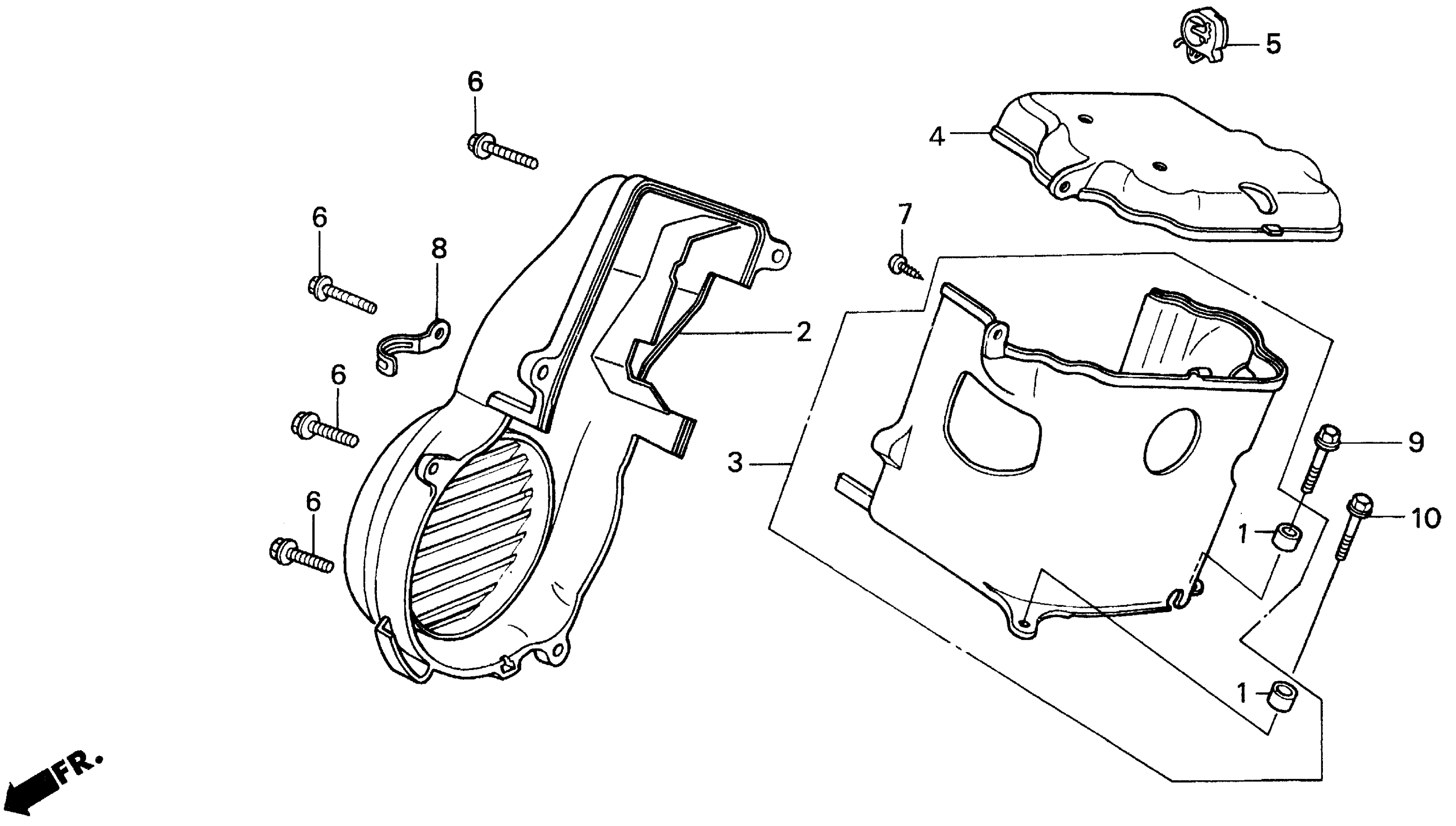

Honda CH80A (00) ELITE 80, MEX, VIN# 3H1HF030-YD500001 FAN COVER Diagram

COLLAR, RADIATOR COVER

19033-415-000

$2.92

COVER, FAN

19610-GE1-771

Unavailable

SHROUD (A)

19620-GE1-772

$37.61

SHROUD (B)

19630-GE1-711

Unavailable

CLIP, HARNESS This part replaces 19635-GE0-711.

90684-ZA0-601

$2.93

CLIP, HARNESS

90684-ZA0-601

$2.93

BOLT, FLANGE (6X20) (NSHF)

90005-GHB-650

$4.59

BOLT, FLANGE (6X20) (NSHF) This part replaces 90014-GK1-000.

90005-GHB-650

$4.59

SCREW, TAPPING (4X12)

93903-44310

$1.49

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
