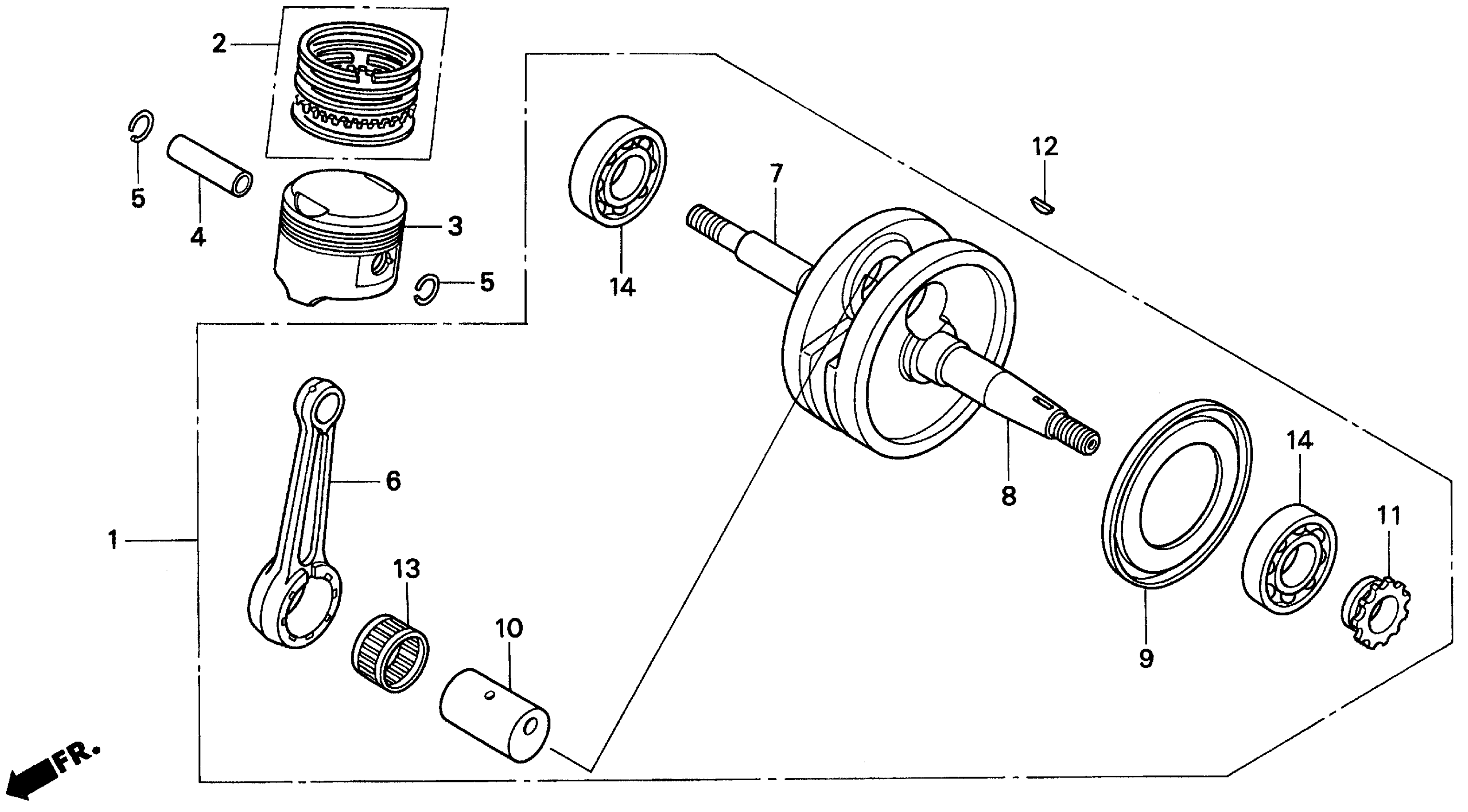

Honda CH80A (00) ELITE 80, MEX, VIN# 3H1HF030-YD500001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT

13000-GE1-711

Unavailable

2

RING SET, PISTON (STD)

13011-GE1-307

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.25) | (Optional).

13021-GE1-307

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.50) | (Optional).

13031-GE1-307

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.75) | (Optional).

13041-GE1-307

Unavailable

2

RING SET, PISTON (1.00) | (Optional).

13051-GE1-307

Unavailable

3

PISTON (STD)

13101-GE1-830

Unavailable

3

PISTON (0.25) | (Optional).

13102-GE1-307

$52.21

3

PISTON (OVER SIZE) (0.50) | (Optional).

13103-GE1-307

Unavailable

3

PISTON (OVER SIZE) (0.75) | (Optional).

13104-GE1-307

Unavailable

3

PISTON (1.00) | (Optional).

13105-GE1-307

Unavailable

4

PIN, PISTON

13111-GB0-910

$11.67

4

PIN, PISTON This part replaces 13111-087-000.

13111-GB0-910

$11.67

5

CLIP, PISTON PIN (13MM) This part replaces 13115-001-000.

94601-13000

$1.49

5

CLIP, PISTON PIN (13MM)

94601-13000

$1.49

6

ROD, CONNECTING

13201-GE1-710

Unavailable

7

CRANKSHAFT, R. (NOT AVAILABLE)

13311-GE1-711

Unavailable

8

CRANKSHAFT, L. (NOT AVAILABLE)

13321-GE1-711

Unavailable

9

PLATE, R. CRANK SIDE

13371-GE1-710

Unavailable

10

PIN, CRANK

13381-GE1-710

Unavailable

11

SPROCKET, TIMING (13T)

14311-GE1-710

$16.82

12

KEY, WOODRUFF (3MM)

90741-035-000

$4.19

13

BEARING, CONNECTING ROD (RED) (NOT AVAILABLE)

91101-GB4-681

Unavailable

13

BEARING, CONNECTING ROD (BLUE)

91102-GB4-681

Unavailable

13

BEARING, CONNECTING ROD (WHITE)

91103-GB4-681

$23.20

14

BEARING, RADIAL BALL (6204) (TOYO)

91102-GE1-711

$19.89
