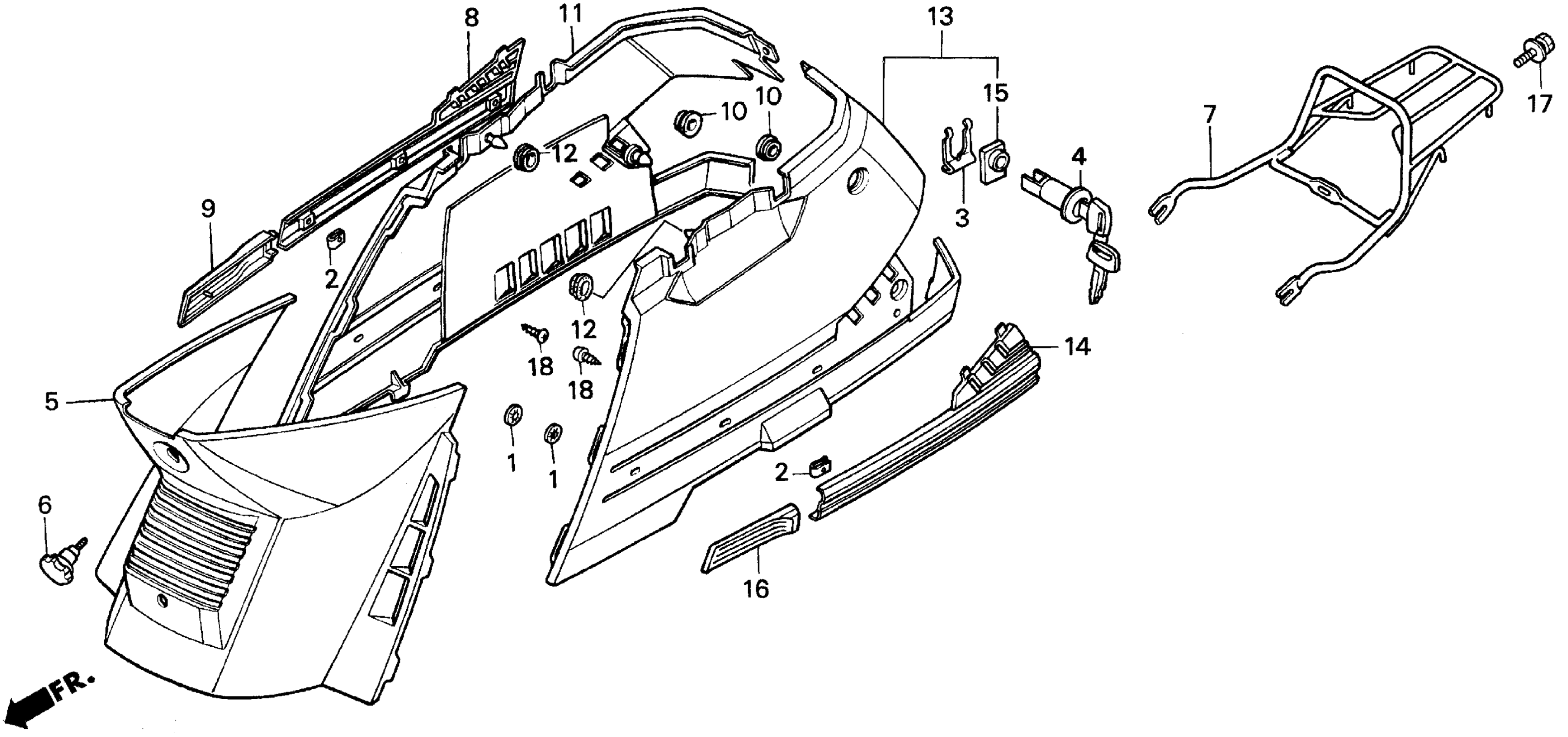

Honda CH80A (00) ELITE 80, MEX, VIN# 3H1HF030-YD500001 CENTER COVER Diagram

#

Description
Price

1

NUT, SPEED (4MM) This part replaces 64436-692-000.

90313-172-000

$5.85

2

NUT, CENTER PANEL

66871-611-000

$4.83

3

SPRING, LOCK KEY SETTING

75581-673-000

$5.13

4

LOCK ASSY., SEAT

77230-GE0-003

$57.77

5

COVER, CENTER *NH158R* (CARBON GRAY)

80151-GE0-000ZM

$381.95

6

KNOB, BATTERY COVER

80157-GC8-000

Unavailable

7

CARRIER, LUGGAGE *NH105* (MAT BLACK)

81200-GV4-900ZA

Unavailable

8

MOLDING, R. SIDE *NH1* (BLACK) This part replaces 83501-GE1-830.

83501-GV4-900ZC

$48.10

8

MOLDING, R. SIDE *NH1* (BLACK)

83501-GV4-900ZC

$48.10

9

SPACER, R. SIDE MOLDING *NH1* (BLACK)

83502-GV4-900ZC

Unavailable

10

GROMMET, RR. COVER

83504-GE0-000

$2.92

11

COVER SET, R. RR. (TYPE1) (WL)

83550-GV4-750ZA

Unavailable

11

COVER SET, R. RR. (TYPE2) (WL)

83550-GV4-750ZB

Unavailable

12

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

13

COVER SET, L. RR. (TYPE1) (WL)

83650-GV4-750ZA

$183.54

13

COVER SET, L. RR. (TYPE2) (WL)

83650-GV4-750ZB

Unavailable

14

MOLDING, SIDE *NH1* (BLACK) This part replaces 83601-GE1-830.

83601-GV4-900ZC

Unavailable

14

MOLDING, SIDE *NH1* (BLACK)

83601-GV4-900ZC

Unavailable

15

COLLAR, SEAT LOCK

83602-GE0-000

Unavailable

16

SPACER, L. SIDE MOLDING *NH1* (BLACK)

83602-GV4-900ZC

$15.21

17

BOLT-WASHER (8X20)

93401-08020-00

$1.49

18

SCREW, TAPPING (4X12)

93903-24310

$1.49
