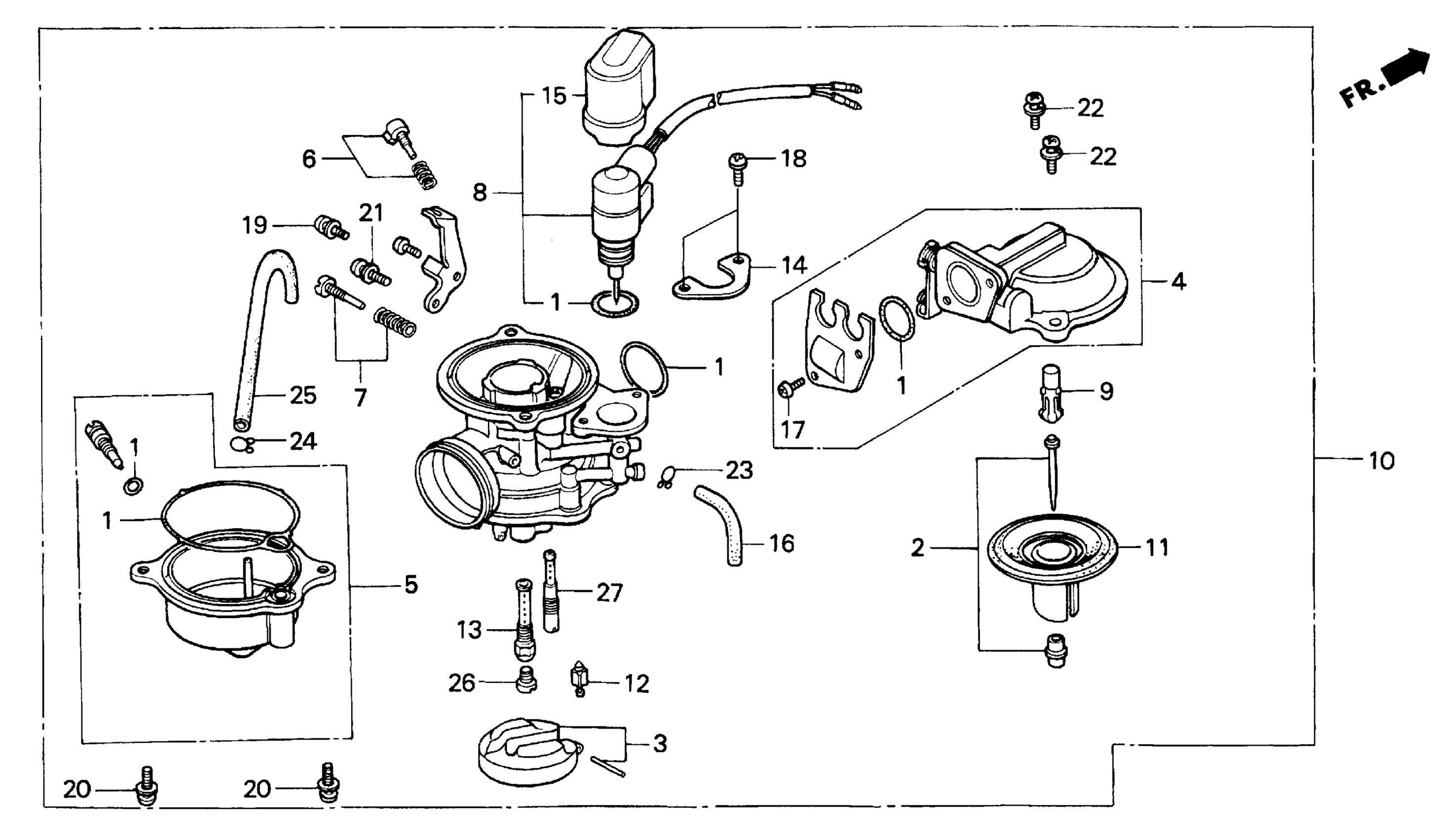

Honda CH80A (00) ELITE 80, MEX, VIN# 3H1HF030-YD500001 CARBURETOR Diagram

GASKET SET

16010-GE0-712

$45.82

NEEDLE SET, JET This part replaces 16012-GE1-711.

16039-GE1-711

Unavailable

FLOAT SET

16013-883-005

$29.08

TOP SET

16014-GE1-771

$108.85

CHAMBER SET, FLOAT

16015-GE0-712

$135.61

SCREW SET A

16016-GC8-721

Unavailable

SCREW SET B

16028-GK4-003

Unavailable

VALVE SET, STARTER

16046-GE1-772

Unavailable

PLATE, VALVE

16092-GB2-721

Unavailable

CARBURETOR ASSY. (VC67B A) This part replaces 16100-GV4-830.

16100-GV4-831

Unavailable

CARBURETOR ASSY. (VC67B A)

16100-GV4-831

Unavailable

PISTON, VACUUM

16111-GE1-771

Unavailable

VALVE, FLOAT

16155-883-005

$20.11

HOLDER, NEEDLE JET

16165-GE1-671

Unavailable

PLATE, SET

16186-GJ2-004

Unavailable

HOLDER, CAP

16190-GE0-711

$16.13

TUBE, AIR VENT

16199-GC8-004

Unavailable

SCREW, PAN (4X8)

93500-04008-0H

$1.49

SCREW-WASHER (4X8)

93892-04008-08

$1.49

SCREW-WASHER (4X8) This part replaces 93892-04008-18.

93892-04008-08

$1.49

SCREW-WASHER (4X10)

93892-04010-08

$1.49

SCREW-WASHER (4X10) This part replaces 93892-04010-18.

93892-04010-08

$1.49

SCREW-WASHER (4X14)

93892-04014-08

$1.49

SCREW-WASHER (4X14) This part replaces 93892-04014-18.

93892-04014-08

$1.49

SCREW-WASHER (5X12)

93892-05012-08

$1.49

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.49

SCREW-WASHER (5X14)

93892-05014-08

$1.49

SCREW-WASHER (5X14) This part replaces 93892-05014-18.

93892-05014-08

$1.49

CLIP, TUBE (B8)

95002-02089

$1.49

CLIP, TUBE (B6.5)

95002-02659

$1.49

BULK HOSE, VINYL (4X7X8000) (4X7X330)

95003-07008-60M

$24.47

JET, MAIN (#88) This part replaces 99101-116-0880.

99102-GHB-0880

$6.57

JET, MAIN (#88)

99102-GHB-0880

$6.57

JET, SLOW (#40)

99103-GCE-0400

$16.11

JET, SLOW (#40) This part replaces 99104-GE1-0400.

99103-GCE-0400

$16.11
