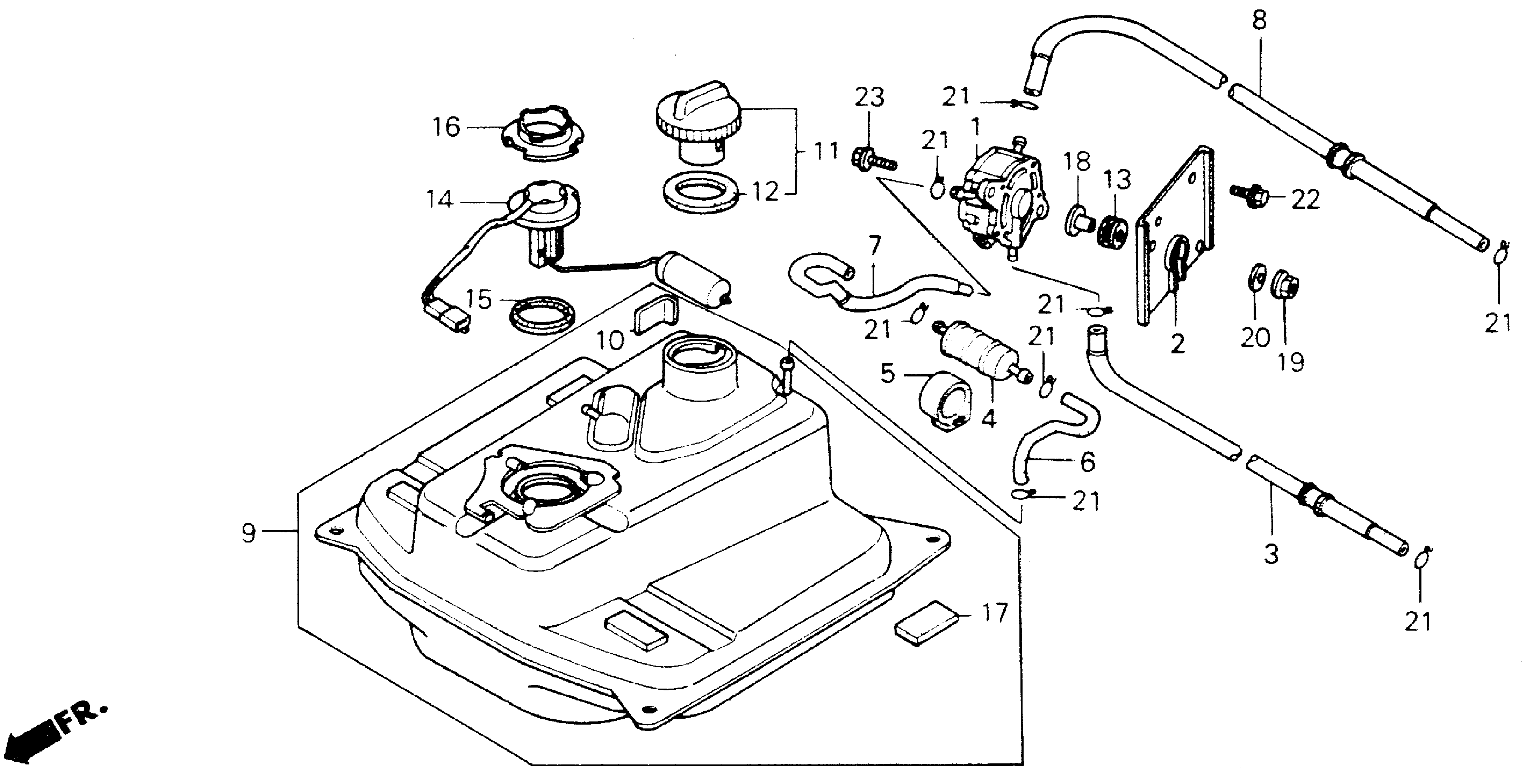

Honda CH250AC (89) ELITE 250, JPN, VIN# JH2MF031-KK000003 FUEL TANK 89 Diagram

#

Description
Price

1

PUMP ASSY., FUEL This part replaces 16700-KAB-020.

16700-KAB-030

$148.51

1

PUMP ASSY., FUEL

16700-KAB-030

$148.51

2

STAY, FUEL PUMP

16707-KAB-000

Unavailable

3

TUBE, PULSE

16710-KAB-000

Unavailable

4

FILTER, FUEL

16900-371-004

$27.15

5

RUBBER, FUEL STRAINER

16905-MG7-000

$7.39

6

TUBE, FUEL STRAINER (A)

17301-KAB-000

Unavailable

7

TUBE, FUEL STRAINER (B)

17302-KAB-000

Unavailable

8

TUBE, FUEL PUMP

17303-KAB-000

Unavailable

9

TANK, FUEL

17500-KAB-730

Unavailable

10

GUARD, FUEL TANK (NOT AVAILABLE)

17504-KAB-670

Unavailable

11

CAP, FUEL FILLER

17620-KAB-730

Unavailable

12

GASKET This part replaces 17631-096-701.

17631-096-702

$2.36

13

GROMMET A, TUBE This part replaces 36043-657-000.

36037-657-000

$5.73

14

FUEL UNIT This part replaces 37800-KAB-000.

37800-KAB-010

Unavailable

14

FUEL UNIT

37800-KAB-010

Unavailable

15

GASKET, BASE

37801-GA7-700

$4.81

16

RETAINER, FUEL UNIT

37802-GA7-700

$4.81

17

RUBBER, TOOL BOX

83521-198-900

Unavailable

18

COLLAR, DISTANCE

91551-723-650

Unavailable

19

NUT, FLANGE (6MM)

94050-06080

$0.59

20

WASHER, PLAIN (6MM)

94103-06000

$0.90

21

CLIP, TUBE (B10)

95002-02100

$1.72

22

BOLT, FLANGE (6X12)

95701-06012-08

$1.48

23

BOLT, FLANGE (6X25)

95701-06025-08

$1.64
