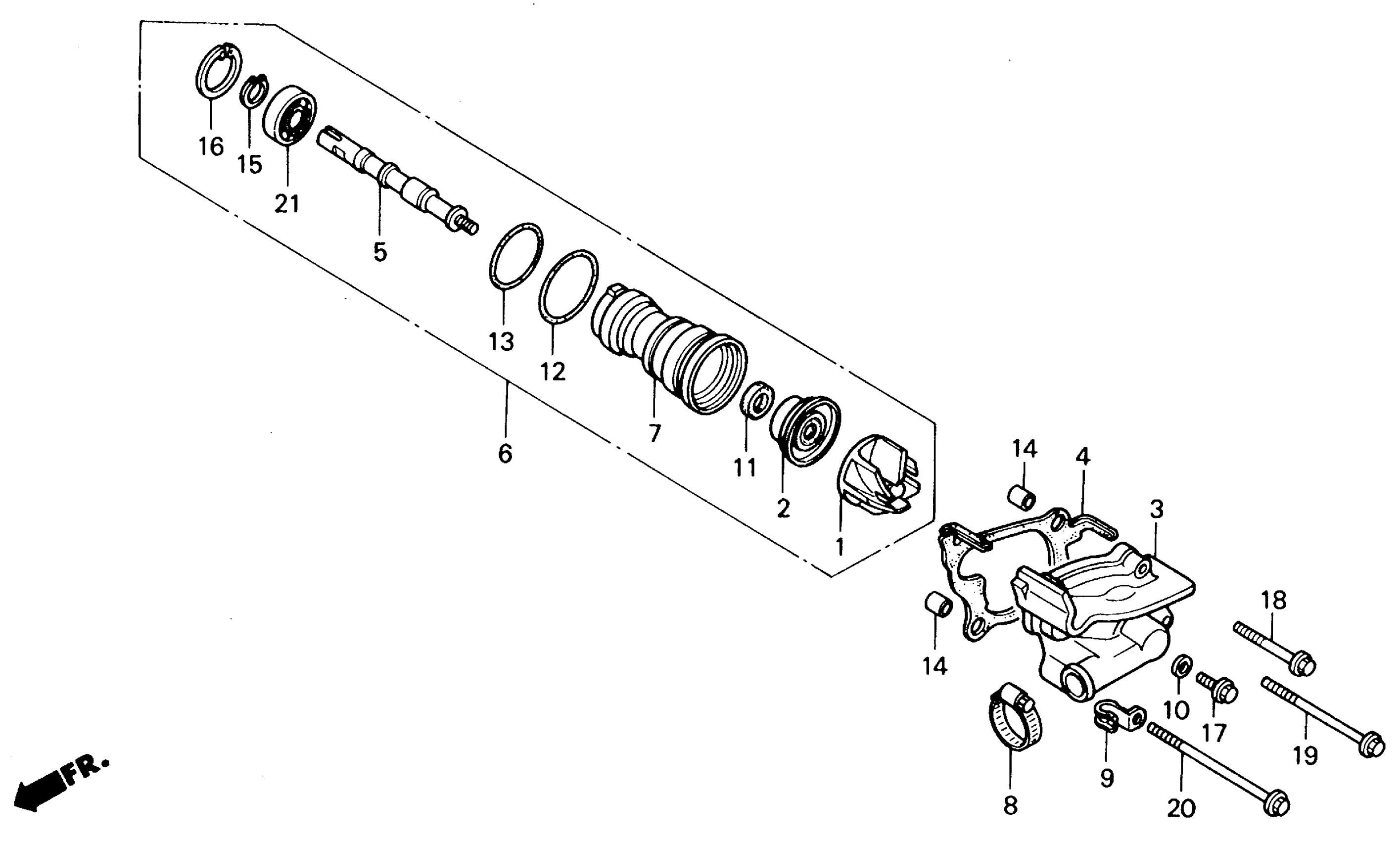

Honda CH250A (90) ELITE 250, JPN, VIN# JH2MF030-LK100001 WATER PUMP Diagram

#

Description
Price

1

IMPELLER, WATER PUMP

19215-KAB-000

$47.61

2

SEAL, MECHANICAL This part replaces 19217-PA5-003.

19217-PH9-013

Unavailable

3

COVER, WATER PUMP

19221-KAB-000

$114.77

4

GASKET This part replaces 19229-KAB-000.

19229-KAB-020

Unavailable

5

SHAFT, WATER PUMP

19241-KAB-000

Unavailable

6

SHAFT, WATER PUMP This part replaces 19250-KAB-000.

19250-KAB-010

$221.25

6

SHAFT, WATER PUMP

19250-KAB-010

$221.25

7

HOLDER, WATER PUMP SHAFT

19251-KAB-000

Unavailable

8

CLAMP, HOSE (22-29MM) | Use up to Engine SN 2100794 This part replaces 19513-MM4-003.

19517-ML7-691

$10.44

8

CLAMP, HOSE (22-29)

19517-ML7-691

$10.44

9

CLIP, IGNITION CABLE

32906-061-000

$4.33

10

WASHER A (6MM)

90478-700-000

$0.70

11

OIL SEAL (15X24X5) This part replaces 91201-GG0-003.

91204-GK8-003

$4.53

11

OIL SEAL (15X24X5) This part replaces 91201-812-013.

91204-GK8-003

$4.53

11

OIL SEAL (15X24X5) This part replaces 91201-812-015.

91204-GK8-003

$4.53

11

OIL SEAL (15X24X5)

91204-GK8-003

$4.53

12

O-RING (35.2X2.6) This part replaces 91301-KE1-003.

91301-KE1-004

$4.03

12

O-RING (35.2X2.6)

91301-KE1-004

$4.03

13

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.67

14

PIN A, DOWEL (10X16)

94301-10160

$2.24

15

CIRCLIP (OUTER) (12MM)

94510-12000

$1.65

16

CIRCLIP (INNER) (28MM)

94520-28000

$1.16

17

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

18

BOLT, FLANGE (6X40)

95701-06040-00

$1.71

19

BOLT, FLANGE (6X95)

95701-06095-00

$1.84

20

BOLT, FLANGE (6X115)

95701-06115-00

$2.88

21

BEARING, RADIAL BALL (6001)

96100-60010-00

$7.14
