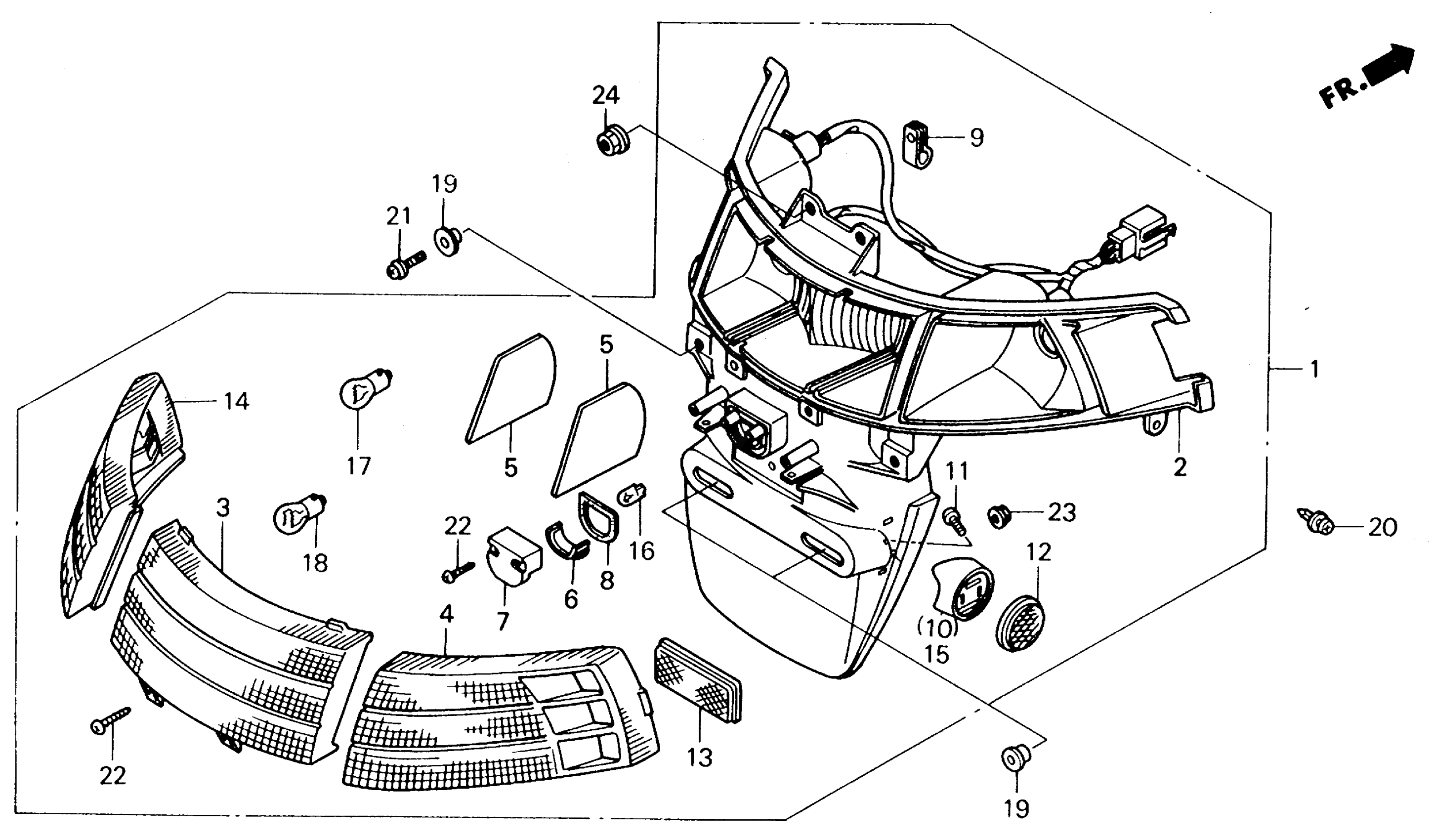

Honda CH250A (90) ELITE 250, JPN, VIN# JH2MF030-LK100001 REAR COMBINATION LIGHT Diagram

#

Description
Price

1

LIGHT ASSY., RR. COMBINATION (12V 21/5W) (NOT AVAILABLE)

33700-KAB-673

Unavailable

2

BASE, RR. COMBINATION

33701-KAB-672

Unavailable

3

LENS, TAILLIGHT

33702-KAB-003

Unavailable

4

LENS, R. TURN SIGNAL

33703-KAB-003

Unavailable

5

SHADE, TAILLIGHT

33704-KAB-671

Unavailable

6

LENS, LICENSE

33705-GN3-671

Unavailable

7

COVER, LICENSE

33706-GN3-671

$14.41

8

GASKET, LICENSE LIGHT

33709-KAB-003

$2.89

9

CLAMP, PLATE

33711-KAB-003

Unavailable

10

SPACER, REFLECTOR

33720-KAB-671

Unavailable

11

SCREW, SPECIAL

33721-KAB-671

Unavailable

12

REFLECTOR, RR. REFLEX

33741-GS7-671

$14.68

13

REFLECTOR, REFLEX

33741-MC7-612

$14.43

14

LENS, L. TURN SIGNAL

33753-KAB-003

Unavailable

15

SPACER, REFLECTOR

33770-KAB-671

Unavailable

16

BULB, WEDGE BASE (12V5W2CP) (194) (STANLEY)

34901-671-671

$3.11

17

BULB (12V 21W) (ECE) (STANLEY) This part replaces 34905-KV7-671.

34908-634-611

$5.88

17

BULB (12V21W) (ECE) (STANLEY)

34908-634-611

$5.88

18

BULB, TAILLIGHT (12V21/5W) (STANLEY)

34906-KV7-671

Unavailable

19

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

20

CLIP, BODY COVER

90683-GR1-003

$2.92

21

SCREW-WASHER (5X14)

93891-05014-08

$1.49

21

SCREW-WASHER (5X14) This part replaces 93891-05014-18.

93891-05014-08

$1.49

22

SCREW, TAPPING (4X16)

93901-34420

$1.49

23

NUT, FLANGE (5MM)

94050-05080

$1.49

24

NUT, FLANGE (6MM)

94050-06070

$1.49
