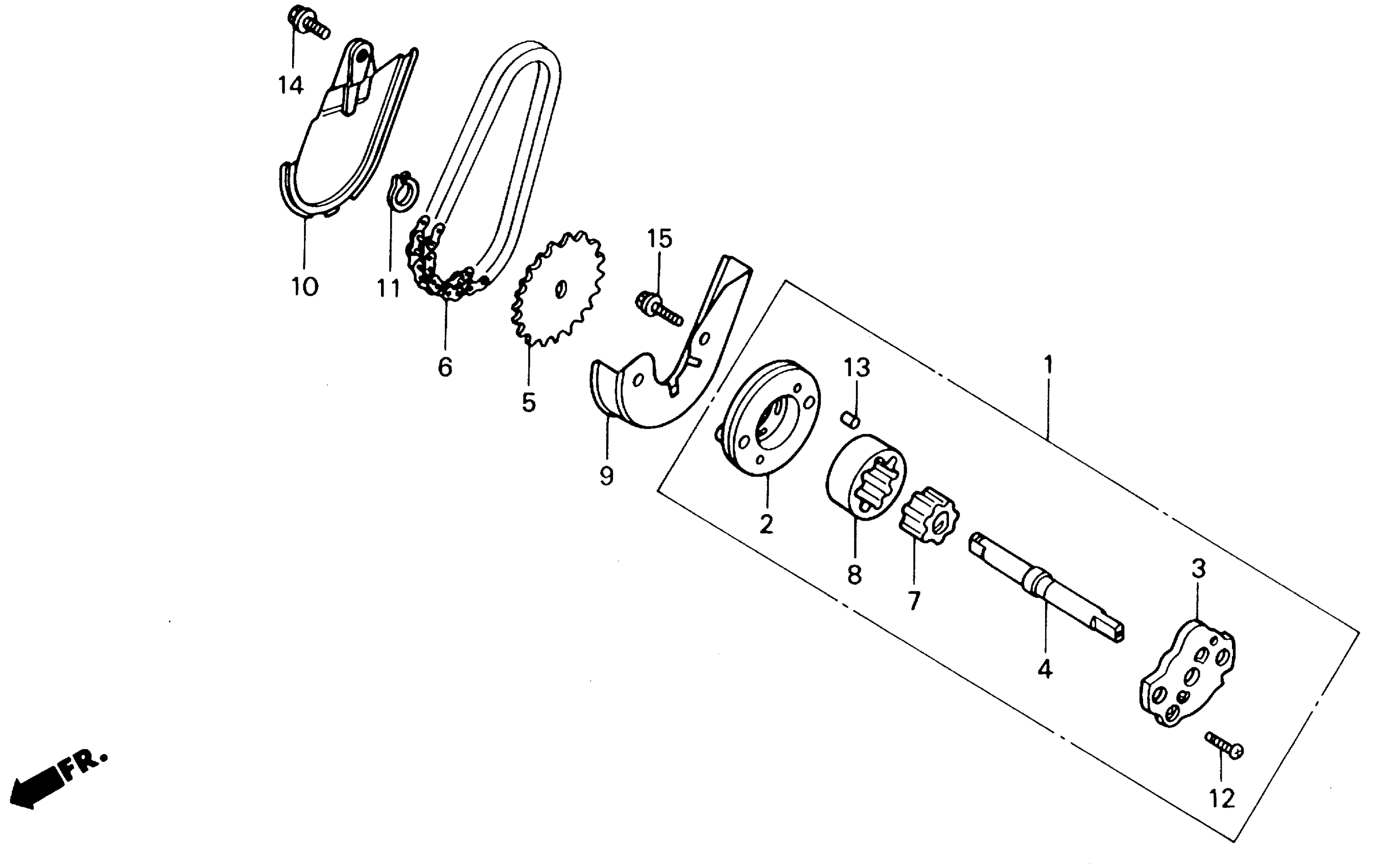

Honda CH250A (90) ELITE 250, JPN, VIN# JH2MF030-LK100001 OIL PUMP Diagram

PUMP ASSY., OIL

15100-KAB-000

Unavailable

BODY, OIL PUMP

15101-KAB-000

Unavailable

PLATE, OIL PUMP

15116-KAB-000

Unavailable

SHAFT, OIL PUMP

15132-KAB-000

Unavailable

SPROCKET, OIL PUMP DRIVEN

15133-KAB-000

Unavailable

CHAIN, OIL PUMP

15141-KAB-003

Unavailable

ROTOR, OIL PUMP (INNER)

15331-KAB-000

$19.20

ROTOR, OIL PUMP (OUTER) (YAMADA)

15332-921-003

Unavailable

SEPARATOR, OIL (A)

15711-KAB-000

Unavailable

SEPARATOR, OIL (B)

15712-KAB-000

Unavailable

CIRCLIP (OUTER) (8MM)

90604-HA0-000

$1.94

SCREW, PAN (3X12)

93500-03012-0A

$1.49

SCREW, PAN (3X12) This part replaces 93500-03012-1A.

93500-03012-0A

$1.49

PIN C, DOWEL (4X6.5)

94303-04065

$2.14

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

BOLT, FLANGE (6X28)

96001-06028-00

$2.06
