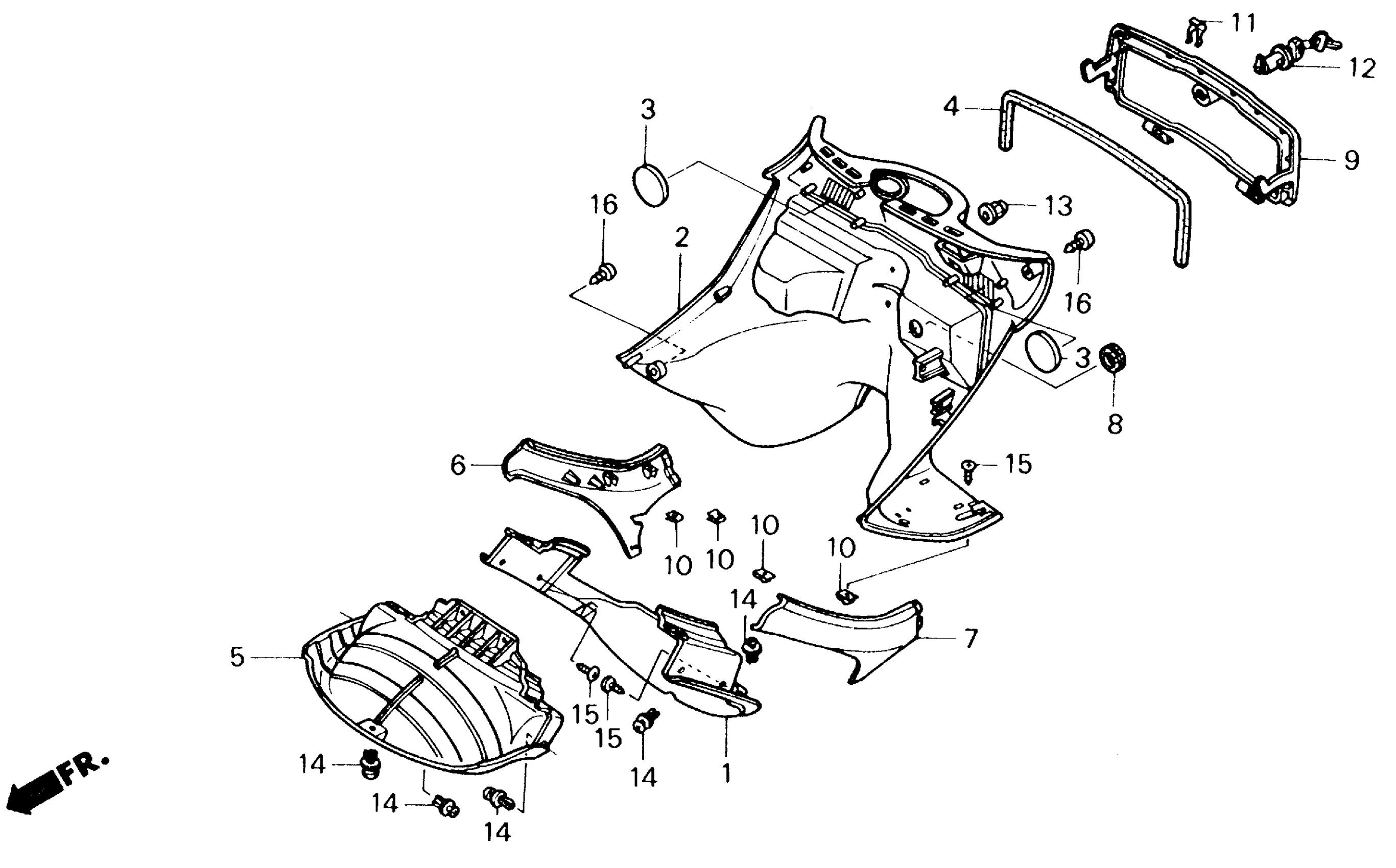

Honda CH250A (90) ELITE 250, JPN, VIN# JH2MF030-LK100001 INNER BOX Diagram

FENDER B, FR. (INNER) *NH265R* (ELEGANT GRAY)

61101-KAB-000ZA

Unavailable

BOX (INNER) *NH266R* (FORMAL GRAY)

64301-KAB-010ZA

Unavailable

BLIND, BOX (INNER)

64303-KAB-000

Unavailable

SEAL, BOX (INNER)

64304-KAB-010

Unavailable

FENDER A, FR. (INNER) *NH265R* (ELEGANT GRAY)

64315-KAB-000ZA

Unavailable

COVER, R. FR. SIDE (LOWER) *NH265R* (ELEGANT GRAY)

64324-KAB-000ZA

Unavailable

COVER, L. FR. SIDE (LOWER) *NH265R* (ELEGANT GRAY)

64325-KAB-000ZA

Unavailable

GROMMET, BOX (INNER)

64407-KM1-000

Unavailable

LID, BOX (INNER) *NH266R* (FORMAL GRAY)

64411-KAB-010ZA

Unavailable

NUT, FITTING

66871-611-000

$4.83

SPRING, LOCK KEY SETTING

75581-673-000

$5.13

LOCK ASSY., BOX LID (INNER)

77233-KS4-000

$33.46

NUT, OPEN STAY (6MM)

90301-693-000

$6.36

CLIP, BODY COVER

90683-GR1-003

$2.92

SCREW, TAPPING (4X12)

93903-24380

$1.49

SCREW, TAPPING (4X16)

93903-24480

$1.49
