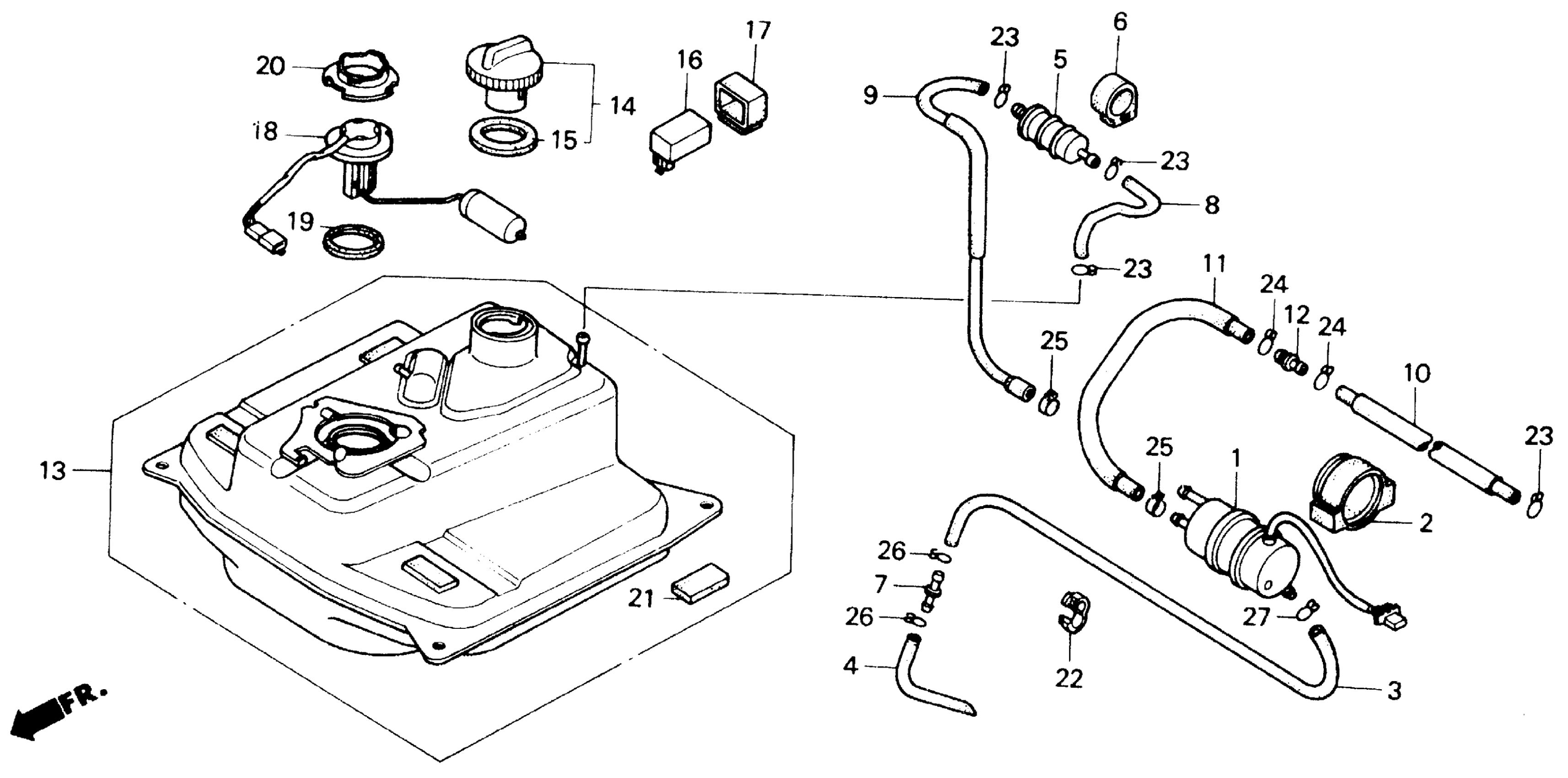

Honda CH250A (90) ELITE 250, JPN, VIN# JH2MF030-LK100001 FUEL TANK 90 Diagram

#

Description
Price

1

PUMP ASSY., FUEL (NOT AVAILABLE)

16710-KAB-770

Unavailable

2

RUBBER, FUEL PUMP MOUNTING

16711-MN8-000

Unavailable

3

TUBE A, BREATHER

16716-KAB-770

Unavailable

4

TUBE B, BREATHER

16717-KAB-770

Unavailable

5

FILTER, FUEL

16900-371-004

$27.15

6

RUBBER, FUEL STRAINER

16905-MG7-000

$7.39

7

JOINT, FUEL TUBE

16958-GJ6-000

$4.33

8

TUBE, FUEL STRAINER (A)

17301-KAB-000

Unavailable

9

TUBE B, FUEL STRAINER

17302-KAB-770

Unavailable

10

TUBE A, FUEL

17304-KAB-770

Unavailable

11

TUBE B, FUEL

17305-KAB-770

Unavailable

12

JOINT, BREATHER TUBE

17359-419-670

$1.87

13

TANK, FUEL

17500-KAB-770

Unavailable

14

CAP, FUEL FILLER This part replaces 17620-GS7-671.

17620-GCC-C52

Unavailable

15

GASKET, FUEL FILLER CAP This part replaces 17632-383-831.

17632-383-832

Unavailable

16

RELAY, FUEL CUT

36100-KAB-770

Unavailable

17

SUSPENSION, FUEL CUT RELAY

36101-MB1-000

$6.08

18

FUEL UNIT

37800-KAB-010

Unavailable

19

GASKET, BASE

37801-GA7-700

$4.81

20

RETAINER, FUEL UNIT

37802-GA7-700

$4.81

21

RUBBER, TOOL BOX

83521-198-900

Unavailable

22

CLIP, WIRE HARNESS

90683-KJ2-003

$3.32

23

CLIP, TUBE (B10)

95002-02100

$1.72

24

CLIP, TUBE (B12)

95002-02120

Unavailable

25

CLIP, TUBE (D12)

95002-41200-08

$2.30

26

CLIP, TUBE (4.5)

95002-45000

$1.13

27

CLIP, TUBE (C9)

95002-50000

$1.14
