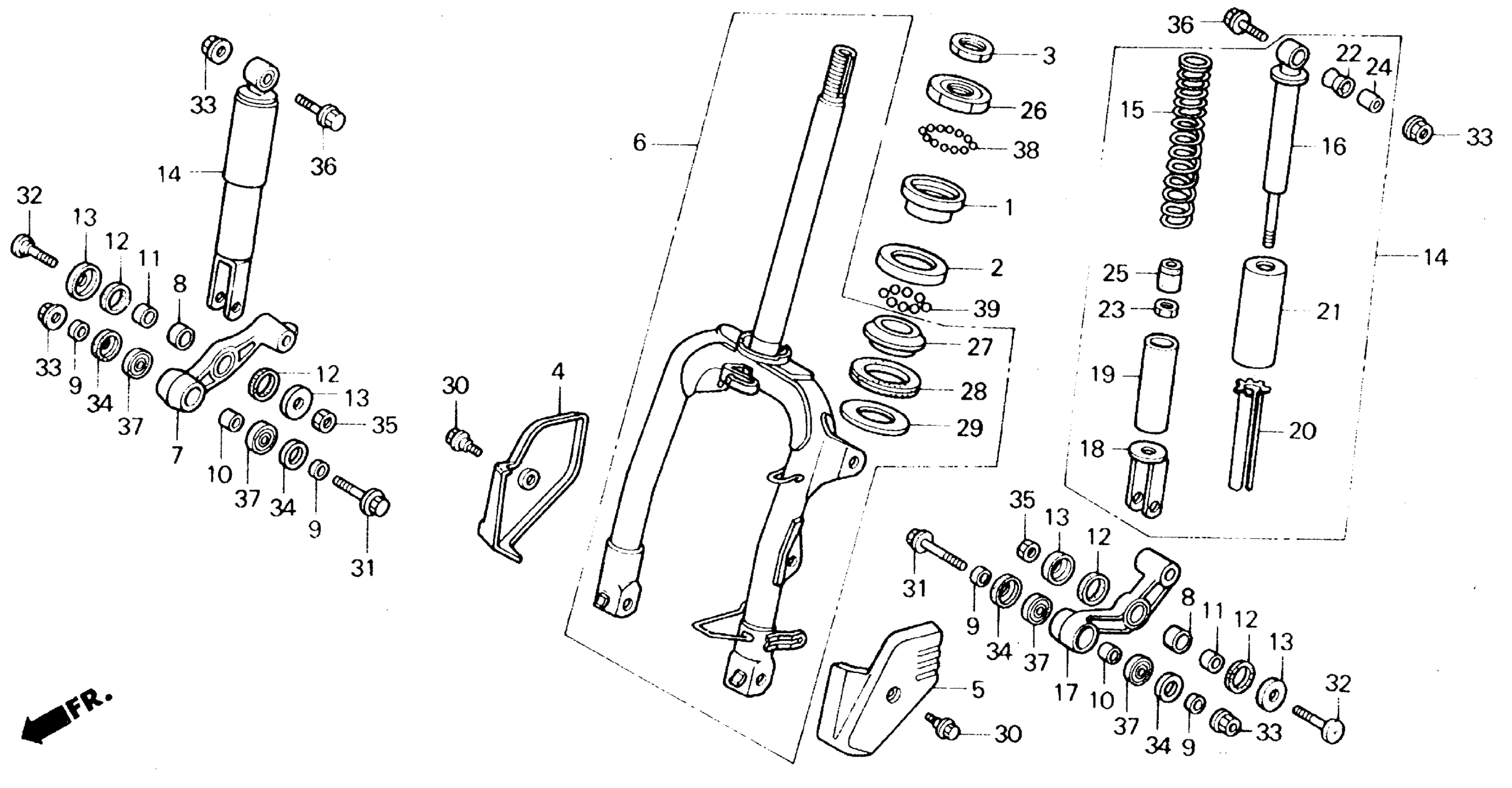

Honda CH250A (90) ELITE 250, JPN, VIN# JH2MF030-LK100001 FRONT FORK Diagram

#

Description
Price

1

RACE, STEERING BALL (UPPER)

50301-KN7-670

Unavailable

2

RACE, STEERING BALL (LOWER)

50302-268-010

$21.73

3

NUT, STEERING STEM LOCK (MITSUBOSHI)

50306-147-003

Unavailable

4

COVER, R. FR. FORK *NH266R* (FORMAL GRAY)

51103-KAB-000ZA

Unavailable

5

COVER, L. FR. FORK *NH266R* (FORMAL GRAY)

51104-KAB-000ZA

Unavailable

6

FORK SET, FR. *NH1* (BLACK)

51110-KAB-316ZA

Unavailable

7

ARM, R. FR. PIVOT

51311-KAB-000

Unavailable

8

BUSH, FR. FORK (LOWER)

51312-GN2-003

$7.60

9

COLLAR A, PIVOT ARM

51313-KM1-000

Unavailable

10

COLLAR B, PIVOT ARM

51314-KM1-000

Unavailable

11

COLLAR, FR. FORK DISTANCE

51334-GN2-000

$6.56

12

SEAL, FR. FORK (LOWER)

51335-KS4-000

$3.44

13

CAP, FR. FORK DUST SEAL (LOWER)

51336-001-000

$2.20

14

FORK ASSY., FR. *NH1* (BLACK)

51400-KAB-013ZA

Unavailable

15

SPRING, FR. FORK

51401-KAB-013

Unavailable

16

PIPE, FR. FORK

51410-KAB-013

Unavailable

17

ARM, L. FR. PIVOT

51411-KAB-670

Unavailable

18

METAL (LOWER)

51414-KAB-003

Unavailable

19

CASE (LOWER) *NH1* (BLACK)

51421-KM1-671ZA

Unavailable

20

GUIDE, FR. FORK

51458-GC8-003

Unavailable

21

CASE, RR. *NH1* (LOWER/UPPER) (BLACK)

52460-GB4-721ZR

Unavailable

22

BUSH, RR. SHOCK ABSORBER RUBBER

52476-001-020

$4.92

23

NUT, LOCK (8MM) (NOT AVAILABLE)

52481-173-000

Unavailable

24

COLLAR, SWINGARM RUBBER BUSH

52486-001-000

$4.85

25

RUBBER, STOPPER

52517-KJ9-003

Unavailable

26

RACE, STEERING TOP CONE

53211-KN7-670

Unavailable

27

RACE, STEERING CONE (LOWER)

53212-250-010

$21.57

28

DUST SEAL This part replaces 53214-250-000.

53214-K0T-J00

$3.03

29

WASHER, STEERING HEAD DUST SEAL

53215-250-000

$2.34

30

BOLT, FORK COVER

90101-KAB-670

Unavailable

31

BOLT, FLANGE (10X57)

90103-KAB-000

Unavailable

32

BOLT, FR. CUSHION (LOWER)

90104-GW2-000

Unavailable

33

NUT, U (10MM)

90304-GE8-003

$3.67

34

DUST SEAL (16X26X4)

91257-KM1-003

$4.66

35

NUT, HEX. (8MM)

94002-08000-0S

$1.49

36

BOLT, FLANGE (10X45)

95801-10045-00

$2.16

37

BEARING, RADIAL BALL (6000)

96120-60000-10

Unavailable

38

BALL, STEEL (#5) (5/32)

96211-05000

$1.49

39

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
