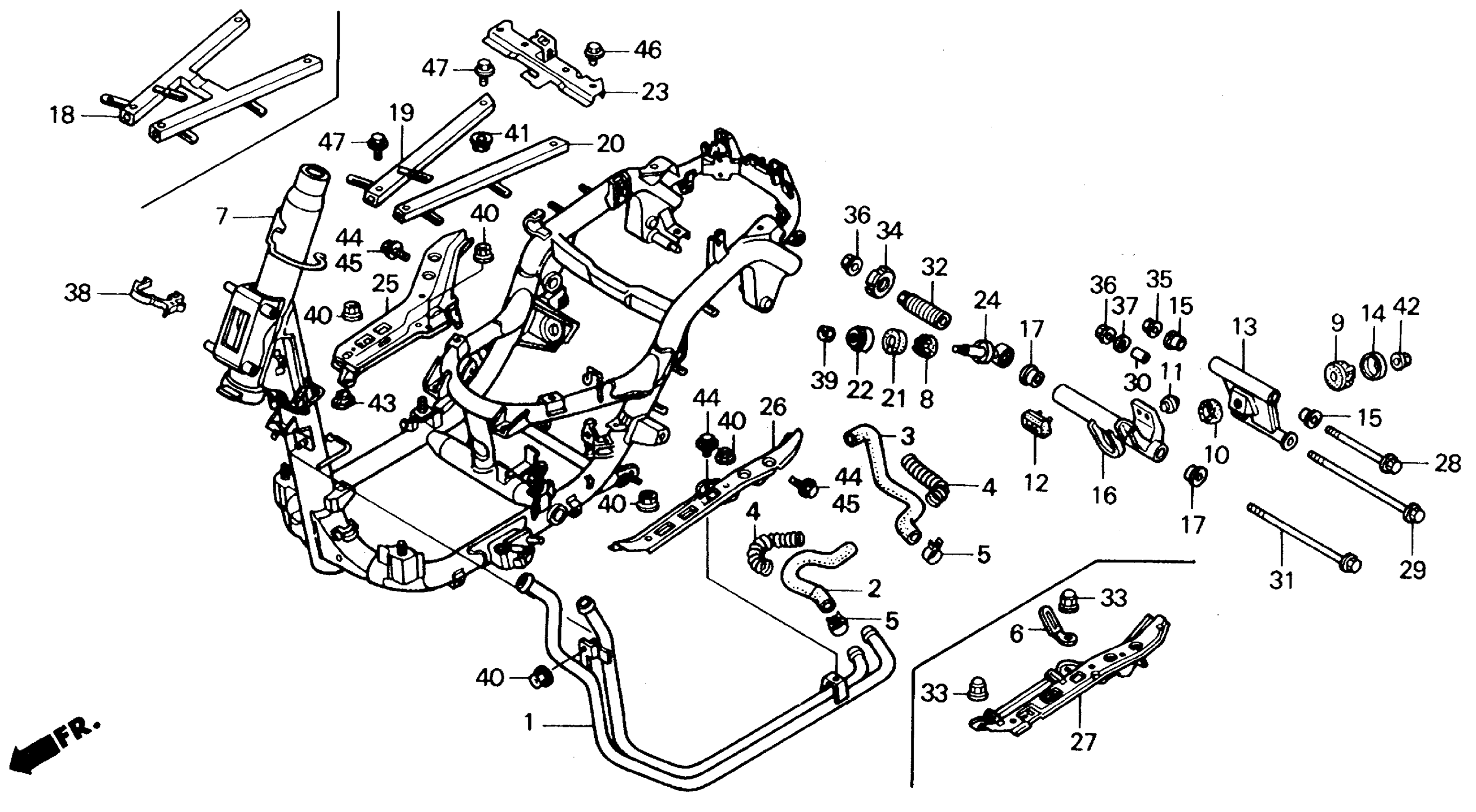

Honda CH250A (90) ELITE 250, JPN, VIN# JH2MF030-LK100001 FRAME Diagram

#

Description
Price

1

PIPE, WATER

19120-KAB-000

Unavailable

2

HOSE A, WATER

19501-KAB-000

Unavailable

3

HOSE B, WATER

19503-KAB-000

Unavailable

4

WIRE B, WATER HOSE GUARD

19505-KM1-000

Unavailable

5

CLIP B, HOSE

19514-ME9-003

$5.64

7

FRAME

50100-KAB-770

Unavailable

8

RUBBER A, ENGINE HANGER STOPPER

50352-GA7-000

Unavailable

9

RUBBER A, ENGINE HANGER STOPPER

50352-GE0-000

Unavailable

10

RUBBER A, ENGINE HANGER STOPPER

50352-KJ9-000

Unavailable

11

RUBBER, STOPPER

50352-KM1-000

$3.67

12

RUBBER, STOPPER

50352-KS4-000

Unavailable

13

BRACKET SUB-ASSY. B, ENGINE HANGER

50355-KAB-000

Unavailable

14

CAP, STOPPER RUBBER

50356-KM1-000

$5.59

15

BEARING B, ENGINE HANGER

50357-KM1-310

$7.75

16

BRACKET SUB-ASSY. A, ENGINE HANGER

50365-KAB-000

Unavailable

17

BEARING A, ENGINE HANGER

50367-KS4-310

Unavailable

19

PIPE, R. CENTER CROSS

50371-KAB-770

Unavailable

20

PIPE, L. CENTER CROSS

50372-KAB-770

Unavailable

21

RUBBER B, STOPPER

50373-KAB-000

Unavailable

22

STOPPER, TENSION ROD

50374-KAB-000

Unavailable

23

BRACKET, FR. LUGGAGE BOX

50375-KAB-000

Unavailable

24

ROD, TENSION

50380-KAB-000

Unavailable

25

BOARD, R. FLOOR (NOT AVAILABLE)

50612-KAB-770

Unavailable

26

BOARD, L. FLOOR

50614-KAB-000

Unavailable

28

BOLT, FLANGE (10X167)

90105-KAB-000

$13.62

29

BOLT, FLANGE (12X257)

90106-KAB-000

Unavailable

30

COLLAR, ENGINE HANGER BOLT | Use up to Frame SN LK100591 This part replaces 90107-KAB-000.

90107-KAB-770

$5.57

30

COLLAR, ENGINE HANGER BOLT

90107-KAB-770

$5.57

31

BOLT, FLANGE (12X402)

90108-KAB-000

Unavailable

32

NUT, FRAME PIVOT COLLAR

90121-KAB-000

$40.80

34

NUT C, STEERING STEM

90304-GB4-680

$7.41

35

NUT, U (10MM)

90304-GE8-003

$3.67

36

NUT, FLANGE (12MM)

90306-KF0-003

$3.85

37

WASHER, TENSION ROD

90501-KAB-000

$5.20

38

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

39

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

39

NUT, FLANGE (8MM)

90309-428-731

$3.35

40

NUT, FLANGE (6MM)

94050-06080

$1.49

41

NUT, FLANGE (8MM)

94050-08080

$1.49

42

NUT-WASHER (8MM)

94070-08080

$1.49

43

RUBBER C, STAND STOPPER

95011-63000

$3.90

44

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

45

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

46

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

47

BOLT, FLANGE (8X30)

95701-08030-08

$1.49
