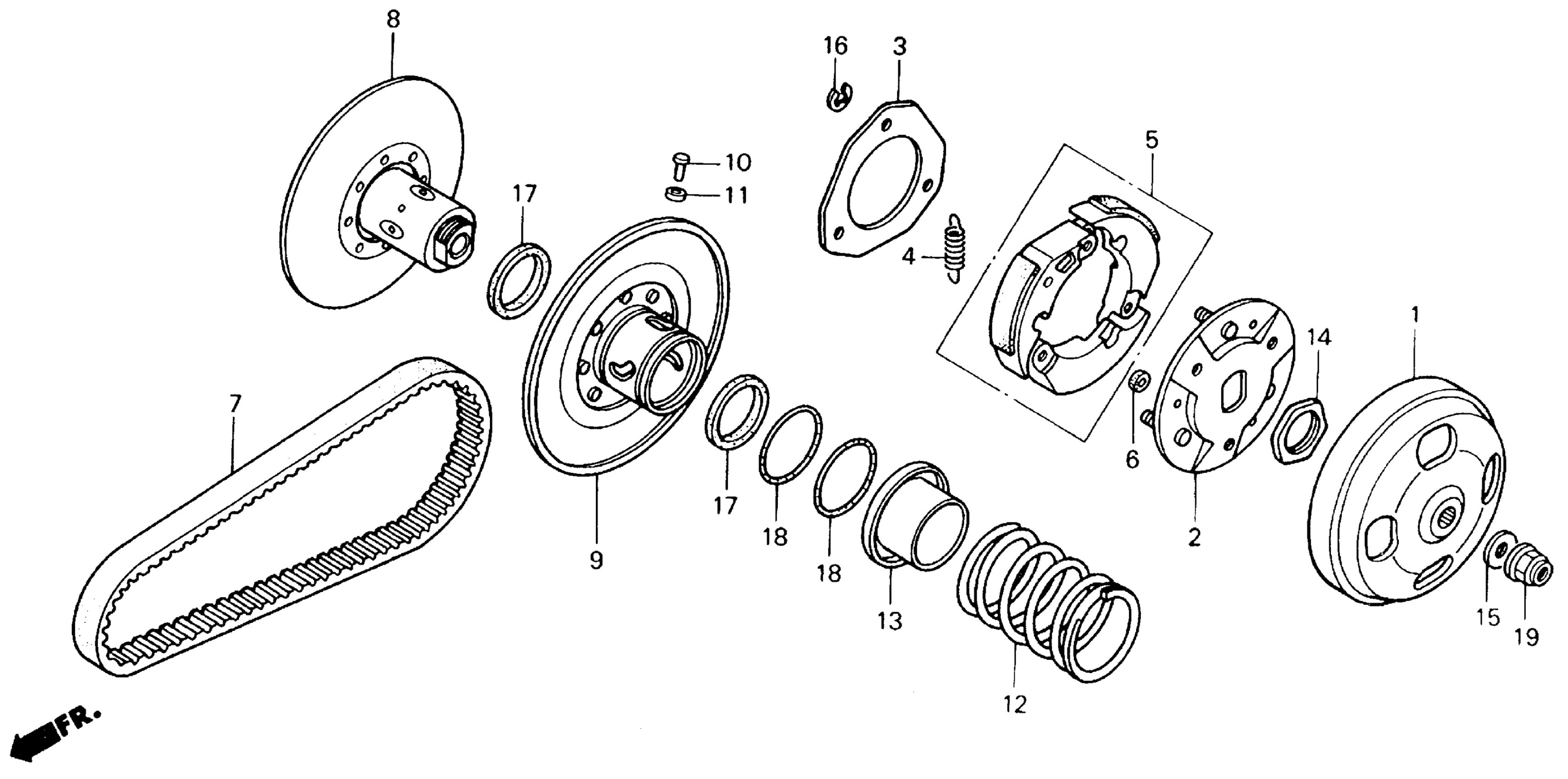

Honda CH250A (90) ELITE 250, JPN, VIN# JH2MF030-LK100001 DRIVEN FACE Diagram

#

Description
Price

1

CLUTCH (OUTER) This part replaces 22101-KAB-010.

22101-KAB-020

Unavailable

1

CLUTCH (OUTER)

22101-KAB-020

Unavailable

2

PLATE, DRIVE

22350-KAB-000

Unavailable

3

PLATE, CLUTCH SIDE

22361-KAB-000

Unavailable

4

SPRING, CLUTCH

22401-KM1-670

$4.21

5

WEIGHT SET, CLUTCH

22535-KS4-306

$74.68

5

WEIGHT SET, CLUTCH | Use up to Engine SN 2100794 This part replaces 22535-KS4-315.

22535-KS4-306

$74.68

6

RUBBER, CLUTCH DAMPER

22804-GB2-000

$3.88

7

BELT, DRIVE This part replaces 23100-KM1-003.

23100-KM1-671

$118.78

7

BELT, DRIVE

23100-KM1-671

$118.78

8

FACE SET, DRIVEN

23205-KM1-315

Unavailable

9

FACE SET, MOVABLE DRIVEN

23221-KM1-305

Unavailable

10

PIN, ROLLER GUIDE

23225-KM1-010

$2.92

11

ROLLER, GUIDE

23226-KM1-010

$4.15

12

SPRING, DRIVEN FACE

23233-KM1-000

Unavailable

13

COLLAR, SEAL

23237-KS4-000

Unavailable

14

NUT, SPECIAL (30MM)

90202-KM1-000

$6.69

15

WASHER, PLAIN (12MM)

90473-KG8-000

Unavailable

16

CIRCLIP (7MM)

90605-166-720

$1.80

17

SEAL, DRIVEN FACE 4

91211-KM1-005

$8.66

18

O-RING (47X1.9) (NOK)

91352-KM1-003

$2.92

18

O-RING (47X1.9) (ARAI)

91352-KM1-005

$2.92

19

NUT, FLANGE (12MM)

94050-12000

$1.49
