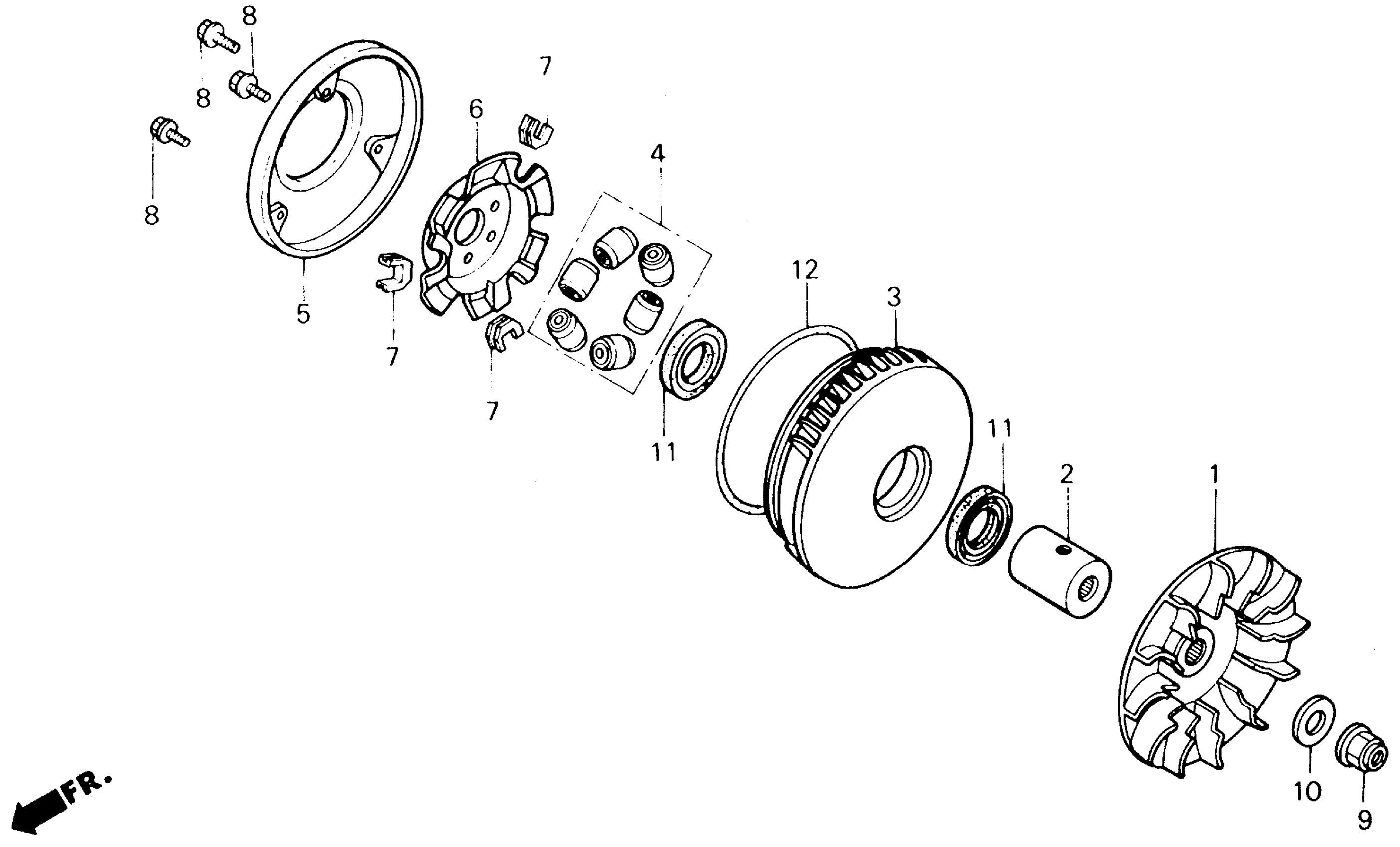

Honda CH250A (90) ELITE 250, JPN, VIN# JH2MF030-LK100001 DRIVE FACE Diagram

FACE, DRIVE This part replaces 22102-KM1-000.

22102-KM1-010

Unavailable

FACE, DRIVE

22102-KM1-010

Unavailable

BOSS, DRIVE FACE

22105-KAB-000

Unavailable

FACE, MOVABLE DRIVE

22110-KM1-000

$86.72

ROLLER SET, WEIGHT

22123-KM1-316

Unavailable

SEAL, MOVABLE FACE

22126-KM1-000

$12.88

PLATE, RAMP

22131-KAB-000

Unavailable

PIECE, SLIDE

22132-KAB-000

$3.75

BOLT-WASHER (4X10) This part replaces 90005-187-000.

90005-GAH-600

$1.48

NUT, U (14MM)

90305-GE8-003

$3.59

NUT, U (14MM) This part replaces 90305-MA1-003.

90305-GE8-003

$3.59

WASHER (14.2X30X2)

90402-KM1-000

Unavailable

OIL SEAL (27X34X3.5) (NOK)

91203-KM1-003

$6.69

OIL SEAL (27X34X3.5) (NOK) This part replaces 91203-KM1-005.

91203-KM1-003

$6.69

O-RING (111X2.6) (ARAI) This part replaces 91305-KM1-003.

91305-KM1-005

$5.07

O-RING (111X2.6) (ARAI)

91305-KM1-005

$5.07
