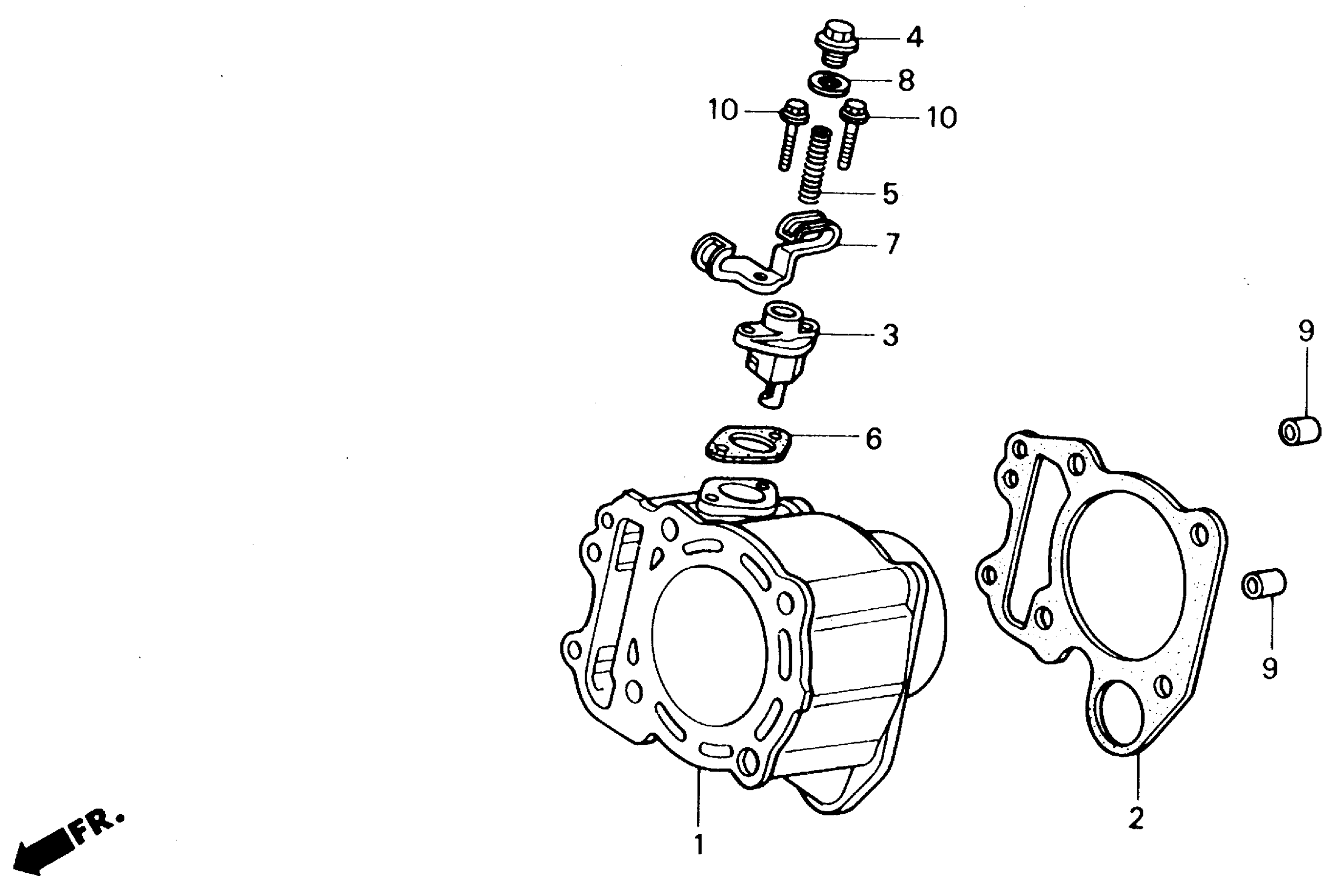

Honda CH250A (90) ELITE 250, JPN, VIN# JH2MF030-LK100001 CYLINDER Diagram

#

Description

Price

1

CYLINDER This part replaces 12100-KAB-000.

12100-KAB-010

Unavailable

1

CYLINDER

12100-KAB-010

Unavailable

2

GASKET, CYLINDER This part replaces 12191-KAB-000.

12191-KAB-020

Unavailable

2

GASKET, CYLINDER This part replaces 12191-KAB-010.

12191-KAB-020

Unavailable

3

BODY, ADJUSTER

14551-KAB-003

Unavailable

4

PLUG, ADJUSTER

14552-KAB-003

$14.36

5

SPRING, CAM CHAIN ADJUSTER

14553-KAB-003

Unavailable

6

GASKET, CAM CHAIN ADJUSTER

14555-KAB-771

$8.23

7

CLAMP, FUEL TUBE

16215-KAB-010

Unavailable

8

WASHER, SEALING (11X19X2)

90421-KAB-003

$2.95

9

PIN A, DOWEL (10X16)

94301-10160

$2.28

10

BOLT, FLANGE (6X22)

95701-06022-00

$1.80
