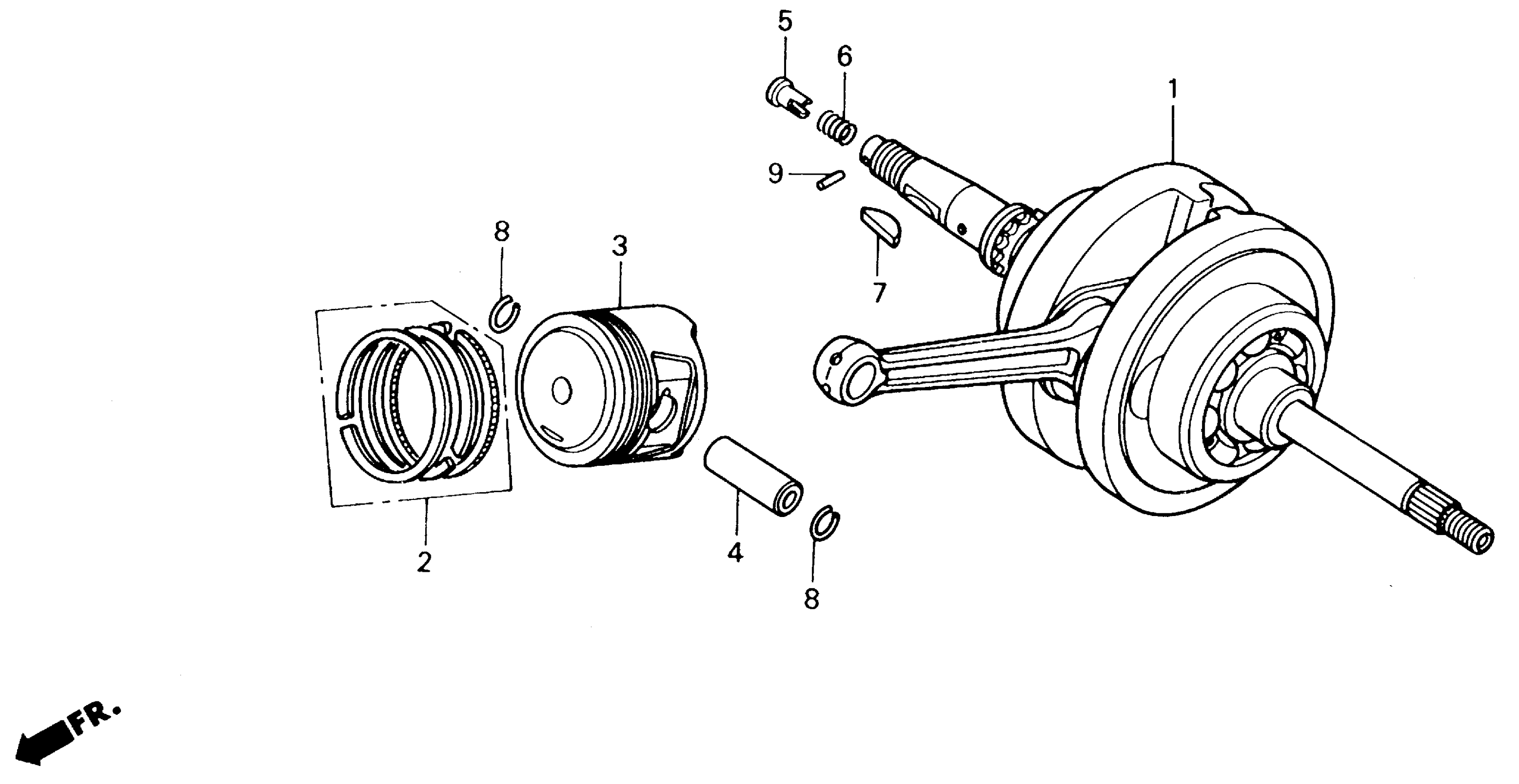

Honda CH250A (90) ELITE 250, JPN, VIN# JH2MF030-LK100001 CRANKSHAFT Diagram

CRANKSHAFT This part replaces 13000-KAB-000.

13000-KAB-020

Unavailable

CRANKSHAFT This part replaces 13000-KAB-010.

13000-KAB-020

Unavailable

CRANKSHAFT

13000-KAB-020

Unavailable

RING SET, PISTON (STD) This part replaces 13011-KAB-305.

13011-KFR-700

Unavailable

RING SET, PISTON (OS 0.25) | (Optional).

13021-KAB-305

Unavailable

RING SET, PISTON (OS 0.50) | (Optional).

13031-KAB-305

Unavailable

RING SET, PISTON (0.75) | (Optional).

13041-KAB-305

Unavailable

RING SET, PISTON (1.00) | (Optional).

13051-KAB-305

Unavailable

PISTON

13101-KAB-000

Unavailable

PISTON (OS 0.25) | (Optional).

13102-KAB-305

$83.31

PISTON (OS 0.50) | (Optional).

13103-KAB-305

Unavailable

PISTON (0.75) | (Optional).

13104-KAB-305

Unavailable

PISTON (1.00) | (Optional).

13105-KAB-305

Unavailable

PIN, PISTON

13111-KM1-000

$20.97

THROUGH, OIL

15441-149-000

$10.12

SPRING, OIL THROUGH

15447-149-000

$2.92

KEY, WOODRUFF (4MM)

90741-KS4-020

$2.79

CLIP, PISTON PIN (17MM)

94601-17000

$1.56

ROLLER (2X13.8)

96220-20138

$1.49
