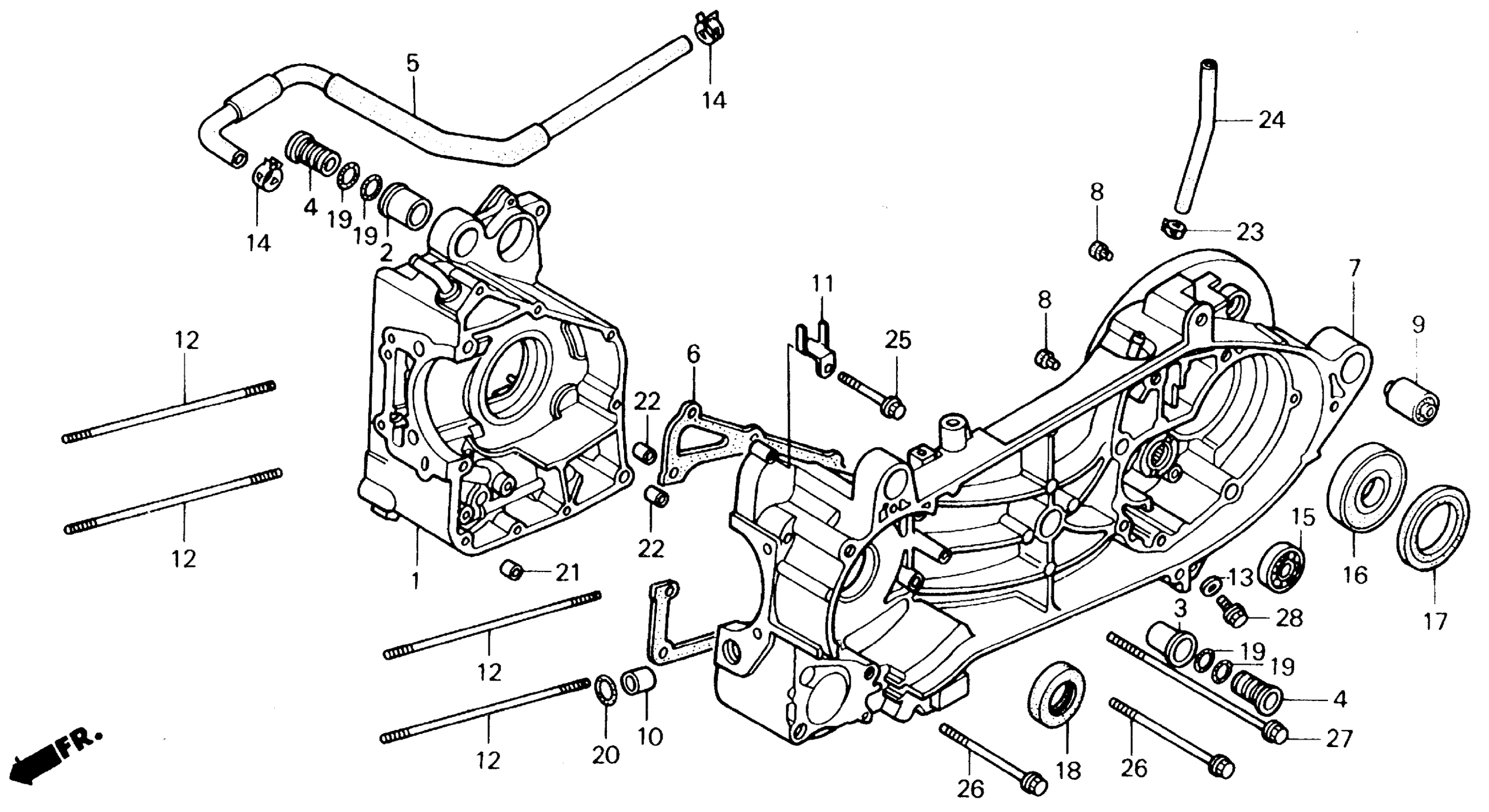

Honda CH250A (90) ELITE 250, JPN, VIN# JH2MF030-LK100001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R. This part replaces 11100-KAB-010.

11100-KAB-020

Unavailable

2

BUSH, R. ENGINE HANGER (OUTER)

11103-KJ9-750

$14.38

3

BUSH, L. ENGINE HANGER (OUTER)

11104-KJ9-751

$14.23

4

BUSH, ENGINE HANGER (INNER)

11105-KAB-000

Unavailable

5

TUBE, BREATHER

11107-KAB-020

Unavailable

6

GASKET, R. CRANKCASE This part replaces 11191-KAB-000.

11191-KAB-010

Unavailable

6

GASKET, R. CRANKCASE

11191-KAB-010

Unavailable

7

CRANKCASE, L.

11200-KAB-000

Unavailable

8

RUBBER, SPRING GUIDE

11202-GC7-300

Unavailable

9

BUSH, SHOCK ABSORBER

11203-KAB-000

$8.87

10

COLLAR, OIL PASSAGE (18MM)

15326-KT7-000

$2.83

11

CLAMP, WIRE

32964-GK8-000

Unavailable

12

BOLT A, STUD (8MM)

90031-KM1-010

Unavailable

13

WASHER A (8MM)

90488-700-000

$1.13

14

CLAMP, CANISTER HOSE

90682-SA0-671

$7.32

15

BEARING, RADIAL BALL (6301) (NTN CORP.)

91003-KS4-003

$24.72

16

BEARING, RADIAL BALL (6205-2NSG)

91006-KAB-004

$37.75

17

OIL SEAL (34X52X5) (NOK) This part replaces 91253-KM1-000.

91253-KM1-003

$8.49

17

OIL SEAL (34X52X5) (NOK)

91253-KM1-003

$8.49

17

OIL SEAL (34X52X5) (NOK) This part replaces 91253-KM1-005.

91253-KM1-003

$8.49

18

OIL SEAL (27.9X40X8) (ARAI)

91261-KM1-003

$8.80

19

O-RING (16MM) This part replaces 91304-MJ0-003.

91303-800-000

$2.06

20

O-RING (18X2.6) (ARAI)

91306-KK4-003

$2.79

21

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.76

22

PIN A, DOWEL (10X16)

94301-10160

$2.80

23

CLIP, TUBE (D10)

95002-41000-08

$2.16

24

BULK HOSE, VACUUM (5.5X3000) (5.3X120)

95005-55003-20M

Unavailable

25

BOLT, FLANGE (6X40)

95701-06040-00

$1.88

26

BOLT, FLANGE (6X70)

95701-06070-00

$2.80

27

BOLT, FLANGE (6X115)

95701-06115-00

$3.14

28

BOLT, FLANGE (8X12)

95701-08012-00

$1.04
