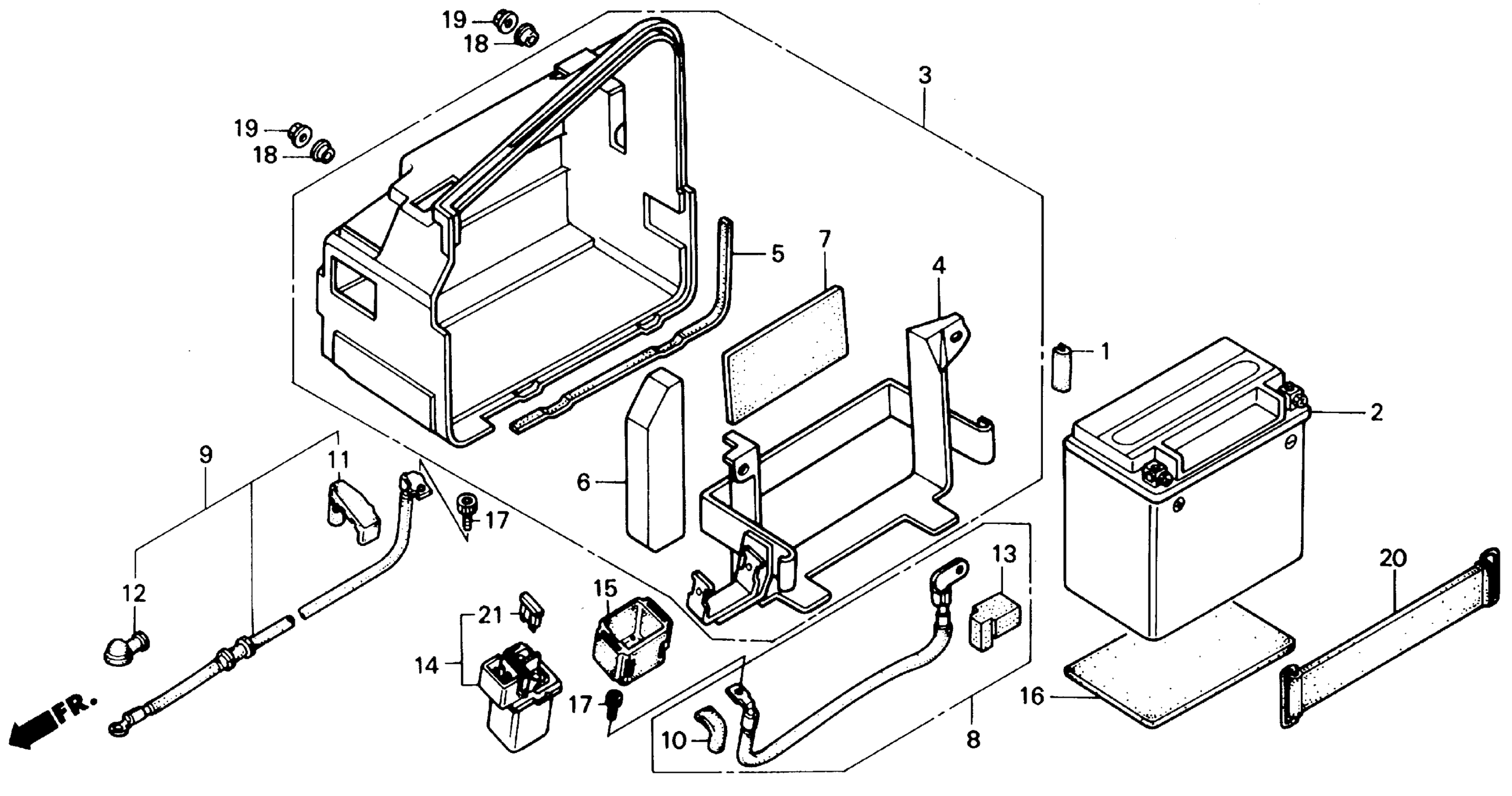

Honda CH250A (90) ELITE 250, JPN, VIN# JH2MF030-LK100001 BATTERY Diagram

#

Description
Price

1

TRIM, FUEL TANK

17516-HC4-000

$3.90

2

BATTERY (YTX12-BS) This part replaces 31500-HA0-685.

31500-HS0-AK1AH

Unavailable

2

BATTERY (YTX12-BS) This part replaces 31500-HA0-686.

31500-HS0-AK1AH

Unavailable

2

BATTERY (YTX12-BS) This part replaces 31500-HF1-677.

31500-HS0-AK1AH

Unavailable

2

BATTERY (YTX12-BS) This part replaces 31500-HF1-678.

31500-HS0-AK1AH

Unavailable

2

BATTERY (YTX12-BS) This part replaces 31500-KM1-834.

31500-HS0-AK1AH

Unavailable

3

BOX ASSY., BATTERY

31502-KAB-770

Unavailable

4

CASE, BATTERY

31505-KAB-000

Unavailable

5

SEAL, BATTERY BOX

31508-KAB-000

Unavailable

6

FILTER, BATTERY BOX

31509-KAB-770

Unavailable

7

RUBBER, BATTERY CUSHION

31511-107-300

$4.69

8

CABLE, STARTER BATTERY

32401-KAB-000

Unavailable

9

CABLE, STARTER (+)

32402-KAB-000

Unavailable

10

COVER, STARTER MAGNETIC TERMINAL (A)

32405-KAB-000

$4.44

11

COVER B, STARTER MAGNETIC TERMINAL

32406-KAB-000

Unavailable

12

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

12

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

13

COVER, BATTERY TERMINAL

32412-KAB-000

$4.57

14

SWITCH ASSY., STARTER MAGNETIC

35850-MR5-007

$120.16

15

RUBBER, SHOCK ABSORBER

35856-KAB-000

$9.30

16

RUBBER, BATTERY

50325-KM1-000

$4.57

17

BOLT, SOCKET (5X9)

90111-MR5-000

$2.61

18

WASHER (6X16)

90512-KJ8-000

Unavailable

19

NUT, FLANGE (6MM)

94050-06080

$1.49

20

BAND F, BATTERY

95012-17001

$7.23

21

FUSE, BLADE (30A)

98200-33000

$1.49
