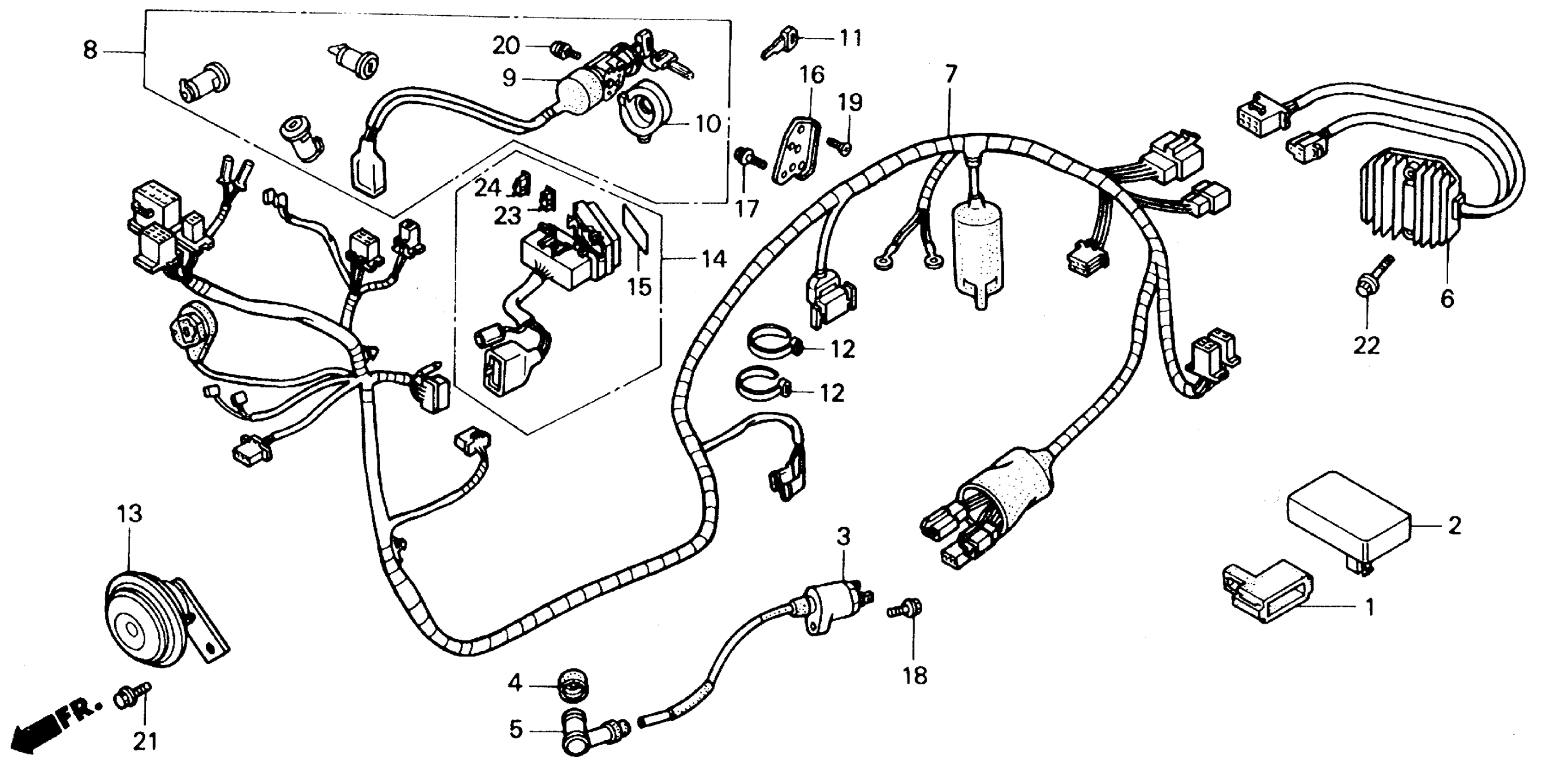

Honda CH250A (89) ELITE 250, JPN, VIN# JH2MF030-KK000011 WIRE HARNESS Diagram

#

Description
Price

1

RUBBER, IGNITION CONTROL MODULE

30401-HA7-670

$10.00

2

MODULE, IGNITION CONTROL (CDI) This part replaces 30410-KAB-008.

30410-KAB-018

Unavailable

2

MODULE, IGNITION CONTROL (CDI)

30410-KAB-018

Unavailable

3

COIL, IGNITION

30510-KAB-000

Unavailable

4

SEAL, IGNITION TERMINAL

30605-KM1-000

$9.48

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-KG8-900.

30700-KG8-901

Unavailable

5

CAP ASSY., NOISE SUPPRESSOR

30700-KG8-901

Unavailable

6

RECTIFIER ASSY., REGULATE This part replaces 31600-KE8-010.

31600-MB3-670

Unavailable

6

RECTIFIER ASSY., REGULATE

31600-MB3-670

Unavailable

7

WIRE HARNESS This part replaces 32100-KAB-670.

32100-KAB-671

Unavailable

7

WIRE HARNESS

32100-KAB-671

Unavailable

8

LOCK SET This part replaces 35010-KAB-670.

35010-KAB-671

Unavailable

8

LOCK SET

35010-KAB-671

Unavailable

9

SWITCH ASSY. This part replaces 35110-KAB-671.

35110-KAB-672

Unavailable

10

ILLUMINATION, KEY

35120-KAB-670

Unavailable

11

KEY, BLANK (TYPE1) | (Optional). This part replaces 35121-KAB-811.

35121-KV8-680

Unavailable

11

KEY, BLANK (TYPE2) KEY, BLANK (TYPE1) | (Optional). This part replaces 35122-KAB-811.

35122-KV8-680

Unavailable

11

KEY, BLANK (TYPE2) KEY, BLANK (TYPE1) | (Optional).

35122-KV8-680

Unavailable

12

BAND

35701-MG9-950

$1.89

13

HORN (HIGH)

38110-KM1-018

$75.38

14

BOX ASSY., FUSE | Use up to Frame SN KK000553 This part replaces 38200-KAB-670.

38200-KAB-671

Unavailable

14

BOX ASSY., FUSE

38200-KAB-671

Unavailable

15

LABEL, FUSE

38215-KAB-671

Unavailable

16

STAY B, HANDLE LOCK This part replaces 53127-KAB-000.

53127-KAB-010

Unavailable

16

STAY B, HANDLE LOCK

53127-KAB-010

Unavailable

17

BOLT, FLANGE (6X12) This part replaces 90011-750-800.

90011-750-801

$1.49

17

BOLT, FLANGE (6X12)

90011-750-801

$1.49

18

BOLT, FLANGE (5X22) This part replaces 90112-GK8-000.

90112-GK8-010

$2.84

18

BOLT, FLANGE (5X22)

90112-GK8-010

$2.84

19

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

20

SCREW-WASHER (4X8)

93891-04008-08

$1.49

20

SCREW-WASHER (4X8) This part replaces 93891-04008-18.

93891-04008-08

$1.49

21

BOLT, FLANGE (8X12) This part replaces 95700-08012-00.

95701-08012-00

$1.49

21

BOLT, FLANGE (8X12)

95701-08012-00

$1.49

22

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

23

FUSE, BLADE (5A)

98200-30500

$1.49

24

FUSE, BLADE (10A)

98200-31000

$1.49
