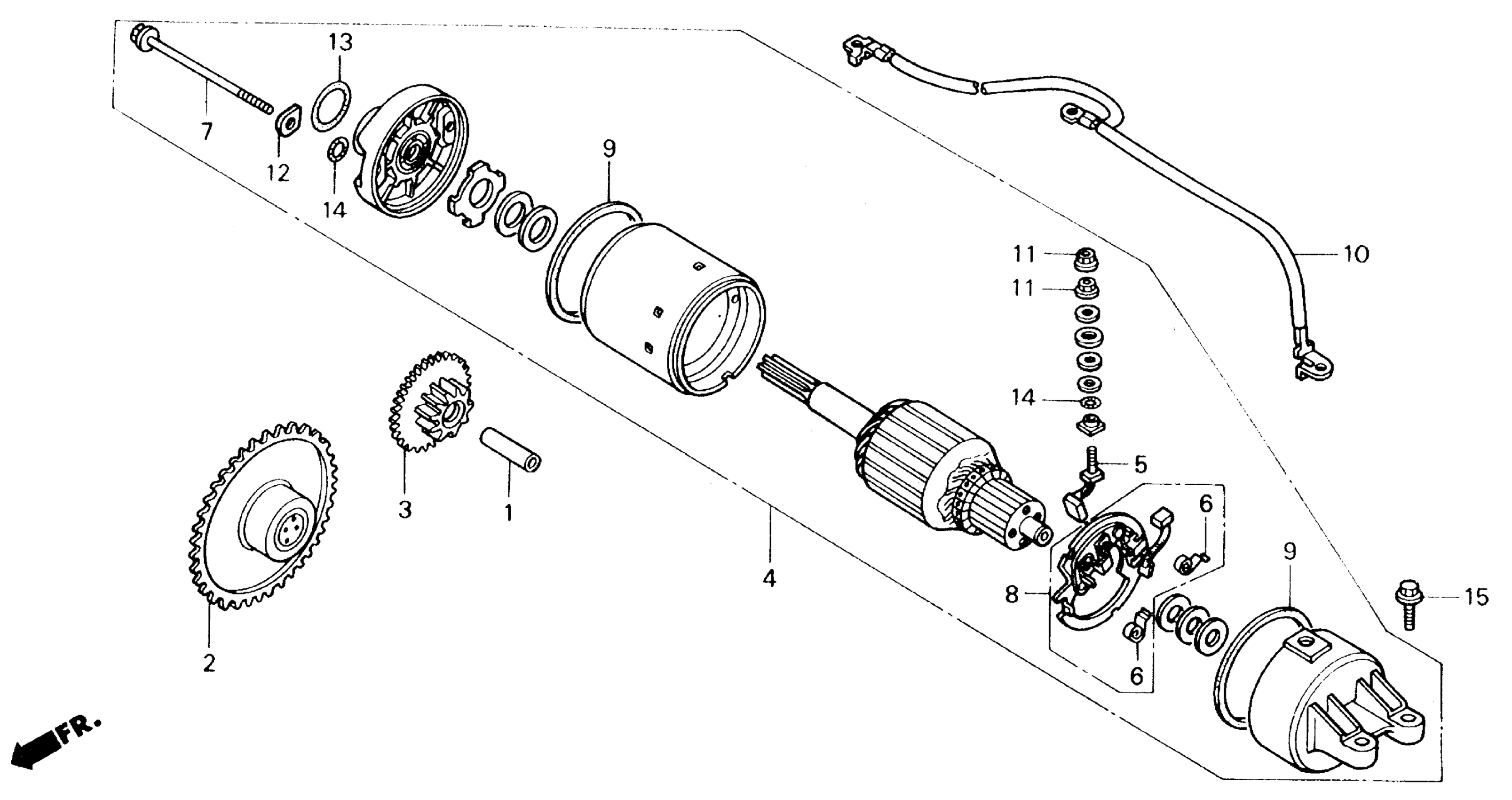

Honda CH250A (89) ELITE 250, JPN, VIN# JH2MF030-KK000011 STARTER MOTOR Diagram

SHAFT, STARTER REDUCTION GEAR

28102-KM1-670

$9.06

GEAR, STARTER CLUTCH (59T)

28110-KAB-000

Unavailable

GEAR, STARTER REDUCTION This part replaces 28130-KAB-000.

28130-KAB-010

Unavailable

GEAR, STARTER REDUCTION

28130-KAB-010

Unavailable

MOTOR ASSY., STARTER This part replaces 31200-KAB-008.

31200-KTB-003

Unavailable

MOTOR ASSY., STARTER This part replaces 31200-KAB-018.

31200-KTB-003

Unavailable

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31201-KS5-901

$22.19

SPRING, CARBON BRUSH

31204-KS5-901

$2.80

BOLT, SETTING

31205-KL8-711

$4.19

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31206-KW1-901

$23.71

RING

31207-KS5-901

$2.90

CABLE, STARTER (NEGATIVE)

32403-KAB-010

Unavailable

NUT-WASHER (6MM)

90071-MB0-000

$1.88

WASHER, STEEL PLATE

90122-MN4-008

$2.80

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

O-RING (24.4X3.1)

91312-MG7-003

Unavailable

O-RING

91320-MB0-000

$2.20

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
