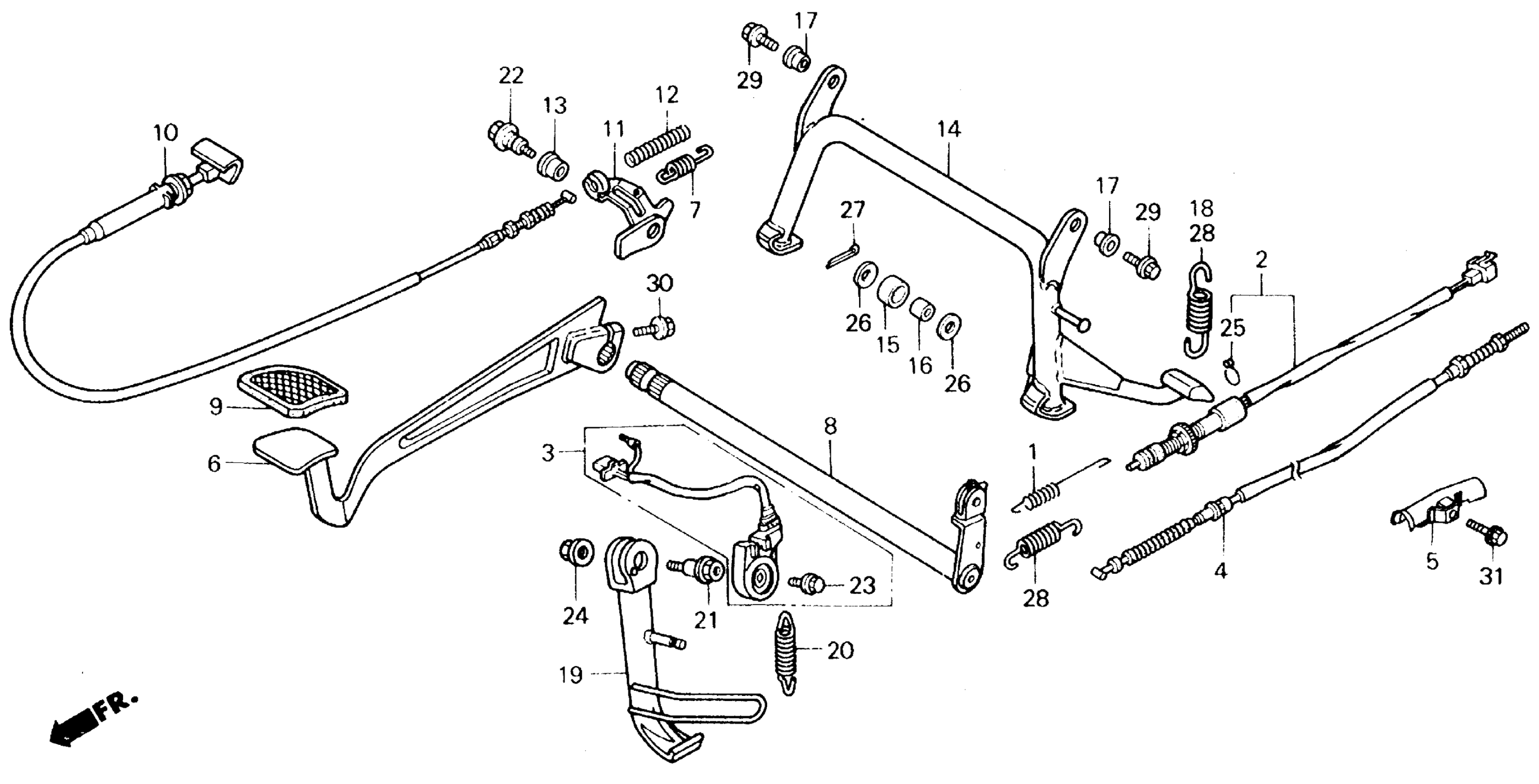

Honda CH250A (89) ELITE 250, JPN, VIN# JH2MF030-KK000011 STAND Diagram

#

Description
Price

1

SPRING, STOP SWITCH

35357-166-830

Unavailable

2

SWITCH ASSY., STARTER STOP This part replaces 35370-KAB-000.

35370-KAB-010

Unavailable

2

SWITCH ASSY., STARTER STOP

35370-KAB-010

Unavailable

3

SWITCH SET, SIDE STAND

35700-KAB-305

Unavailable

4

CABLE, RR. BRAKE

43450-KAB-000

Unavailable

5

CLAMP A, RR. BRAKE CABLE

43454-KAB-000

Unavailable

6

PEDAL, RR. BRAKE

46500-KAB-000

Unavailable

7

SPRING, BRAKE LOCK CABLE RETURN (B)

46510-KJ9-000

$4.05

8

ARM, MIDDLE

46515-KAB-000

Unavailable

9

COVER, PEDAL

46545-538-010

$5.73

10

CABLE, BRAKE LOCK This part replaces 46620-KAB-000.

46620-KAB-901

Unavailable

10

CABLE, BRAKE LOCK

46620-KAB-901

Unavailable

11

PLATE, PEDAL STOPPER

46625-KAB-000

Unavailable

12

SPRING, BRAKE LOCK CABLE RETURN

46627-KG8-670

Unavailable

13

BUSH, STOPPER PLATE

46633-KJ9-000

Unavailable

14

STAND, MAIN

50500-KAB-000

Unavailable

15

RUBBER, MAIN STAND STOPPER

50502-KAB-000

$2.43

16

COLLAR, MAIN STAND STOPPER

50503-KAB-000

$2.44

17

COLLAR, MAIN STAND This part replaces 50504-KAB-000.

50504-KAB-010

Unavailable

17

COLLAR, MAIN STAND

50504-KAB-010

Unavailable

19

STAND, SIDE

50530-KAB-000

Unavailable

20

SPRING, SIDE STAND

50541-MN4-000

Unavailable

21

BOLT, SIDE STAND PIVOT

90108-MK6-670

$7.78

22

BOLT, FLANGE (6X7.5) BOLT, FLANGE (6X9)

90132-KAB-000

Unavailable

23

BOLT, SPECIAL (6X16)

90147-MCE-950

$1.49

23

BOLT, SPECIAL (6X16) This part replaces 90147-MK6-671.

90147-MCE-950

$1.49

24

NUT, SIDE STAND

90203-MF9-710

$3.67

25

CLIP, SWITCH COVER

90601-KAB-003

Unavailable

26

WASHER, PLAIN (8MM)

94102-08800

$1.49

27

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

27

PIN, COTTER (2.0X22)

94201-20220

$1.49

27

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

27

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

27

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

27

PIN, COTTER (2.0X35)

94201-20350

$1.49

27

PIN, COTTER (2.0X22)

94201-29220

$1.49

28

SPRING D, MAIN STAND

95014-71402

$2.48

29

BOLT, FLANGE (10X25)

95701-10025-08

$2.19

29

BOLT, FLANGE (10X25) This part replaces 95800-10025-08.

95701-10025-08

$2.19

29

BOLT, FLANGE (10X25) This part replaces 95800-10025-18.

95701-10025-08

$2.19

29

BOLT, FLANGE (10X25) This part replaces 95801-10025-08.

95701-10025-08

$2.19

30

BOLT, FLANGE (8X30)

95801-08030-08

$2.28

31

BOLT, FLANGE (6X10)

96001-06010-00

$1.55
