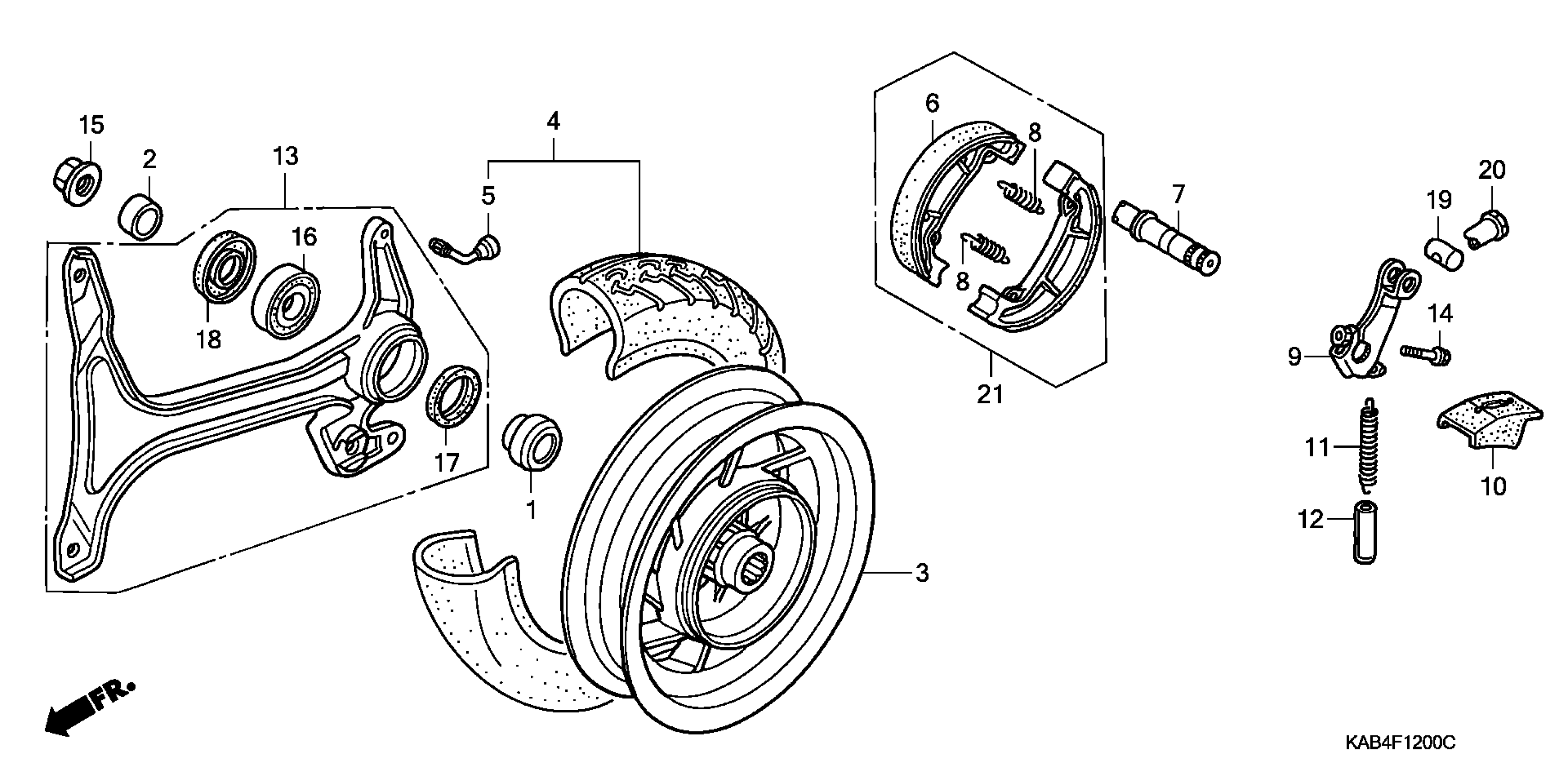

Honda CH250A (89) ELITE 250, JPN, VIN# JH2MF030-KK000011 REAR WHEEL Diagram

#

Description
Price

1

COLLAR A, RR. AXLE

42311-KAB-000

Unavailable

2

COLLAR B, RR. AXLE

42312-KM1-000

$6.61

3

WHEEL, RR. *NH143M* (ARGENT METALLIC) This part replaces 42601-KAB-000ZA.

42601-KAB-030ZA

Unavailable

3

WHEEL, RR. *NH143M* (ARGENT METALLIC) This part replaces 42601-KAB-010ZA.

42601-KAB-030ZA

Unavailable

3

WHEEL, RR. *NH143M* (ARGENT METALLIC) This part replaces 42601-KAB-020ZA.

42601-KAB-030ZA

Unavailable

3

WHEEL, RR. *NH143M* (ARGENT METALLIC)

42601-KAB-030ZA

Unavailable

4

TIRE, RR. (120/90-10) (66J K488) (DUNLOP) This part replaces 42710-KS4-014.

42711-KS4-064

Unavailable

4

TIRE, RR. (120/90-10) (66J K488) (DUNLOP) This part replaces 42710-KS4-034.

42711-KS4-064

Unavailable

4

TIRE, RR. (120/90-10) (65J) (BS)

42711-KAB-003

Unavailable

4

TIRE, RR. (120/90-10) (66J K488) (DUNLOP) This part replaces 42711-KS4-034.

42711-KS4-064

Unavailable

4

TIRE, RR. (120/90-10) (66J K488) (DUNLOP) This part replaces 42711-KS4-044.

42711-KS4-064

Unavailable

4

TIRE, RR. (120/90-10) (66J K488) (DUNLOP) This part replaces 42711-KS4-054.

42711-KS4-064

Unavailable

4

TIRE, RR. (120/90-10) (66J K488) (DUNLOP)

42711-KS4-064

Unavailable

5

VALVE, RIM (BS)

42753-KJ9-003

$17.49

5

VALVE, RIM (DUNLOP)

42753-KJ9-004

$16.69

5

VALVE, RIM (INOUE)

42753-KJ9-005

$16.50

6

SHOE KIT, BRAKE This part replaces 43120-KS4-013.

06430-KS4-651

$36.60

6

SHOE KIT, BRAKE This part replaces 43120-KS4-016.

06430-KS4-651

$36.60

7

CAM, RR. BRAKE

43141-KS4-000

$17.54

8

SPRING, RR. BRAKE SHOE

43151-329-000

$2.75

9

ARM, RR. BRAKE

43410-KAB-000

Unavailable

10

COVER, RR. BRAKE ARM

43411-KAB-000

Unavailable

11

SPRING, RR. This part replaces 43415-KAB-000.

46513-KAB-000

Unavailable

12

TUBE, BRAKE PEDAL SPRING

46515-KY7-000

$4.92

13

SWINGARM ASSY., RR.

52000-KAB-010

Unavailable

14

BOLT, FLANGE (6X35)

90102-KAB-000

$2.74

15

NUT, FLANGE (16MM)

90305-ME5-003

$4.26

16

BEARING, RADIAL BALL (6303)

91051-KS4-003

$38.31

17

DUST SEAL (37X25X6)

91258-HB3-003

$7.25

18

SEAL (25X47X5)

91259-KM1-003

$8.66

19

JOINT, BRAKE ARM

95015-32001

$1.49

20

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

21

SHOE KIT, BRAKE This part replaces 06430-KS4-405.

06430-KS4-651

$36.60

21

SHOE KIT, BRAKE

06430-KS4-651

$36.60

21

SHOE KIT, BRAKE This part replaces 431A0-KS4-670.

06430-KS4-651

$36.60
