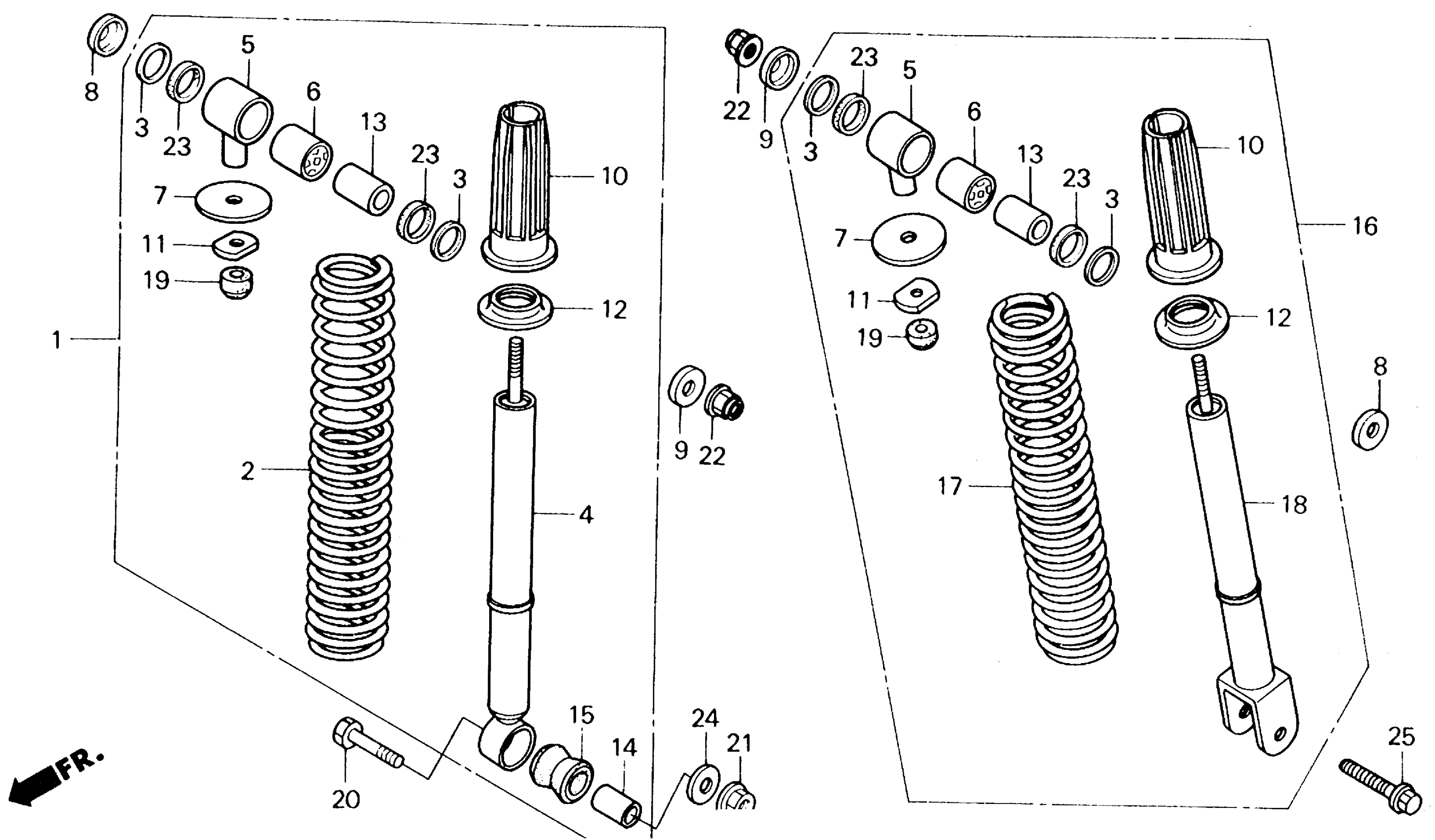

Honda CH250A (89) ELITE 250, JPN, VIN# JH2MF030-KK000011 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., R. RR. This part replaces 52400-KAB-003.

52400-KAB-023

Unavailable

1

SHOCK ABSORBER ASSY., R. RR. This part replaces 52400-KAB-013.

52400-KAB-023

Unavailable

1

SHOCK ABSORBER ASSY., R. RR.

52400-KAB-023

Unavailable

2

SPRING A, RR. SHOCK ABSORBER

52401-KAB-003

Unavailable

3

CAP, DUST SEAL

52406-KB7-003

$6.48

4

SHOCK ABSORBER, R. RR. This part replaces 52410-KAB-003.

52410-KAB-013

Unavailable

4

SHOCK ABSORBER, R. RR.

52410-KAB-013

Unavailable

5

METAL (UPPER)

52414-KAB-003

Unavailable

6

BUSH, SHOCK ABSORBER (UPPER)

52452-KB7-003

$15.55

7

SEAT B, SPRING

52458-KAB-003

Unavailable

8

CAP A, RR. SHOCK ABSORBER (UPPER)

52471-KAB-670

Unavailable

9

CAP B, RR. SHOCK ABSORBER (UPPER)

52472-KAB-670

Unavailable

10

GUIDE, SPRING

52476-KAB-671

Unavailable

11

NUT, LOCK

52482-KAB-003

Unavailable

12

SEAT, SPRING

52485-KAB-670

Unavailable

13

COLLAR, SHOCK ABSORBER (UPPER) This part replaces 52486-KAB-003.

52486-KAB-013

Unavailable

13

COLLAR, SHOCK ABSORBER (UPPER)

52486-KAB-013

Unavailable

14

COLLAR, RR. SHOCK ABSORBER RUBBER BUSH

52486-056-000

$4.28

15

BUSH, RUBBER (UPPER) (SHOWA)

52489-399-601

$5.28

16

SHOCK ASSY., L. RR. This part replaces 52500-KAB-003.

52500-KAB-023

Unavailable

16

SHOCK ASSY., L. RR. This part replaces 52500-KAB-013.

52500-KAB-023

Unavailable

16

SHOCK ASSY., L. RR.

52500-KAB-023

Unavailable

17

SPRING B, RR. ABSORBER

52501-KAB-003

Unavailable

18

SHOCK ABSORBER, L. RR. This part replaces 52510-KAB-003.

52510-KAB-013

Unavailable

18

SHOCK ABSORBER, L. RR.

52510-KAB-013

Unavailable

19

RUBBER, STOPPER

52517-178-003

Unavailable

20

BOLT, HEX. (12X55)

90101-KAB-000

Unavailable

21

NUT, FLANGE (12MM)

90306-KF0-003

$3.85

22

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

22

NUT, FLANGE (8MM)

90309-428-731

$3.35

23

DUST SEAL B

91351-KB7-003

$3.49

24

WASHER, PLAIN (12MM)

94101-12000

$1.49

25

BOLT, FLANGE (10X40)

95801-10040-07

$1.79
