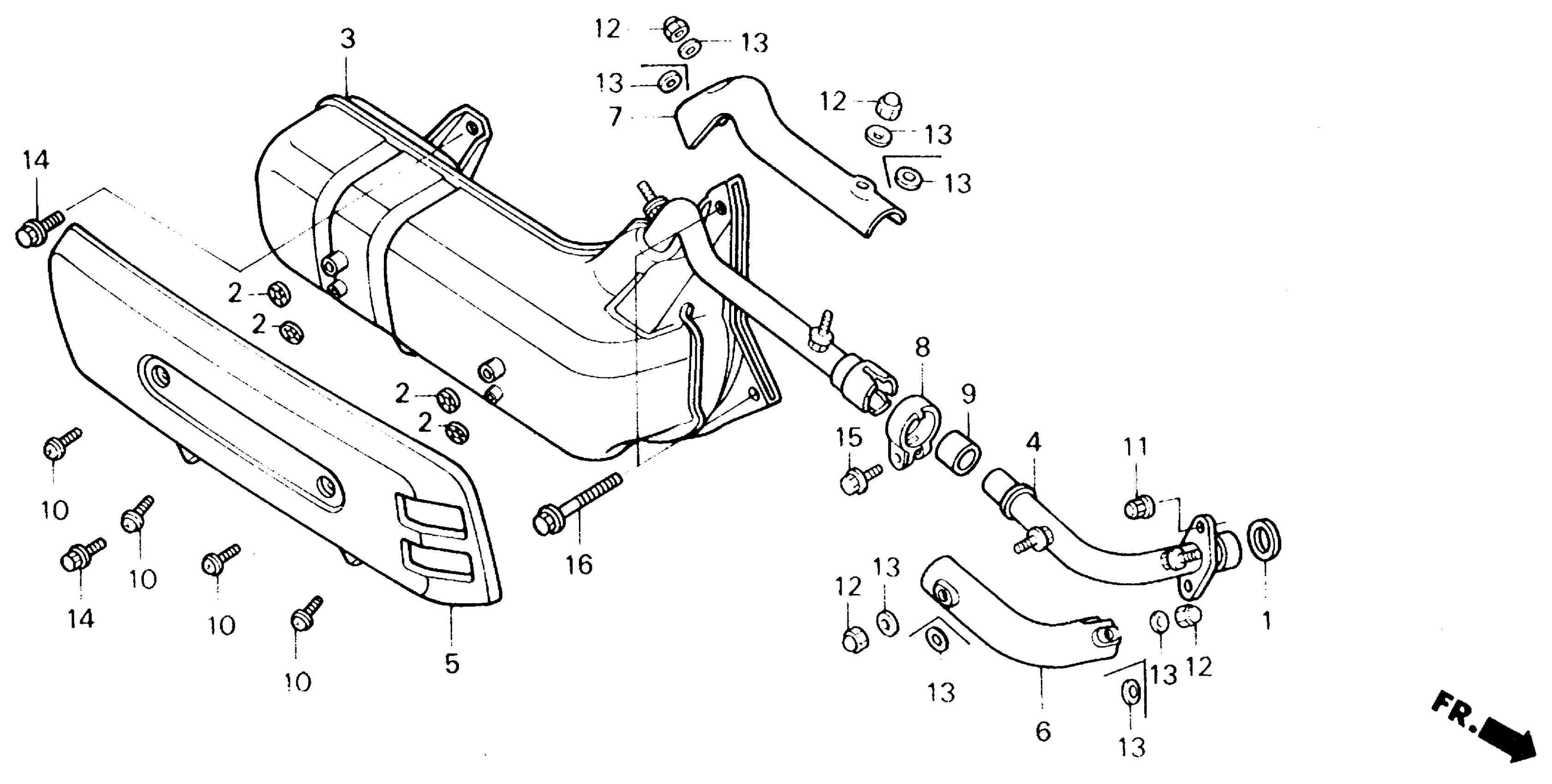

Honda CH250A (89) ELITE 250, JPN, VIN# JH2MF030-KK000011 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE This part replaces 18291-KM1-770.

18291-KS4-690

$4.08

1

GASKET, EX. PIPE

18291-KS4-690

$4.08

2

GASKET, PROTECTOR This part replaces 18292-KF9-900.

18292-MM9-740

$3.03

2

GASKET, PROTECTOR

18292-MM9-740

$3.03

2

GASKET, PROTECTOR This part replaces 18292-415-000.

18292-MM9-740

$3.03

3

MUFFLER

18300-KAB-670

Unavailable

4

JOINT, EX. PIPE

18301-KAB-000

Unavailable

5

PROTECTOR, MUFFLER *NH106* (HEATPROOF BLACK)

18318-KAB-000ZA

Unavailable

6

PROTECTOR, EX. JOINT PIPE

18325-KAB-000

Unavailable

7

PROTECTOR, RR. EX. PIPE

18326-KAB-003

Unavailable

8

BAND, EX. PIPE

18373-KAB-000

$20.35

9

GASKET, MUFFLER

18391-MN1-670

$22.01

10

SCREW-WASHER (6X12) This part replaces 90137-KM1-003.

93891-06012-07

$1.49

10

SCREW-WASHER (6X12)

93891-06012-07

$1.49

11

NUT, CAP (8MM)

90304-ME1-670

$5.94

12

NUT, CAP (6MM) | Use from Frame SN KK000554

90202-ZV0-000

$2.91

12

NUT, CAP (6MM) | Use up to Frame SN KK000553

94021-06220-0S

$1.61

13

WASHER, PLAIN (6MM) | Use up to Frame SN KK000553

94101-06200

$1.49

13

WASHER, PLAIN (6MM) | Use from Frame SN KK000554

94101-06200

$1.49

14

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

15

BOLT, FLANGE (8X32)

95701-08032-00

$1.49

16

BOLT, FLANGE (8X40)

95701-08040-00

$1.49
