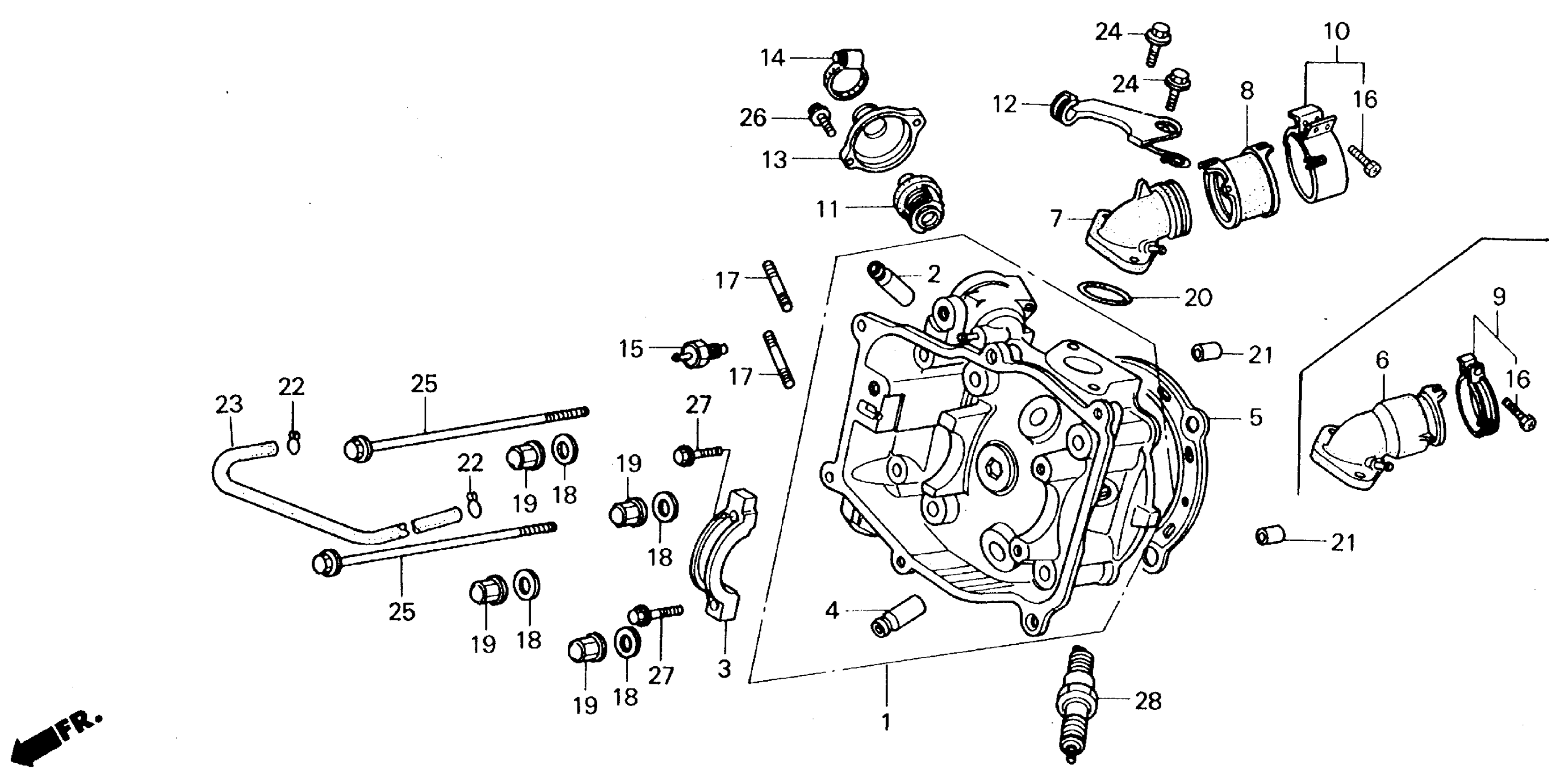

Honda CH250A (89) ELITE 250, JPN, VIN# JH2MF030-KK000011 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD This part replaces 12200-KAB-000.

12200-KFG-000

Unavailable

2

GUIDE, VALVE (OS)

12204-KE7-305

Unavailable

2

GUIDE, VALVE (OS) This part replaces 12204-KE8-305.

12204-KE7-305

Unavailable

3

HOLDER, CAM

12211-KAB-000

$24.56

4

GUIDE, EX. VALVE

12245-KS4-305

Unavailable

5

GASKET, CYLINDER HEAD This part replaces 12251-KAB-003.

12251-KAB-013

$21.64

5

GASKET, CYLINDER HEAD

12251-KAB-013

$21.64

6

INSULATOR, CARBURETOR

16210-KAB-010

Unavailable

9

BAND, INSULATOR

16219-KAB-000

Unavailable

11

THERMOSTAT ASSY.

19300-KM1-003

$64.58

12

CLAMP, THERMOSTAT TUBE

19315-KAB-000

Unavailable

13

COVER, THERMOSTAT

19315-KM1-000

Unavailable

14

CLAMP, HOSE (22-29MM) This part replaces 19513-MM4-003.

19517-ML7-691

$11.62

14

CLAMP, HOSE (22-29)

19517-ML7-691

$11.62

15

SENDING UNIT, WATER TEMPERATURE (DENSO)

37750-PC1-004

$81.34

16

BOLT, RECESSED (5X22)

90005-KAB-000

Unavailable

17

BOLT, SPECIAL STUD (39MM) This part replaces 90033-KAB-000.

90033-KAB-770

$4.43

18

WASHER, SEALING (8MM)

90441-469-000

$5.28

19

NUT, CAP (8MM)

90443-107-000

$2.89

20

O-RING (34X2.5) (ARAI)

91306-KAB-003

$3.20

21

PIN A, DOWEL (10X16)

94301-10160

$2.28

22

CLIP, TUBE (B7)

95002-02070

$1.80

23

BULK HOSE, VACUUM (3.5X1000) (3.5X190)

95005-35001-20M

$9.67

24

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

25

BOLT, FLANGE (6X130)

95701-06130-00

$3.06

26

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

27

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

28

SPARK PLUG (DPR5EA-9) (NGK) | (Optional).

98069-55916

$2.62

28

SPARK PLUG (X16EPR-U9) (DENSO) | (Optional).

98069-55926

$2.54

28

SPARK PLUG (DPR6EA-9) (NGK)

98069-56916

$2.62

28

SPARK PLUG (X20EPR-U9) (DENSO)

98069-56926

$2.54

28

SPARK PLUG (DPR7EA-9) (NGK) | (Optional).

98069-57916

$2.62

28

SPARK PLUG (X22EPR-U9) (DENSO) | (Optional).

98069-57926

$2.54
