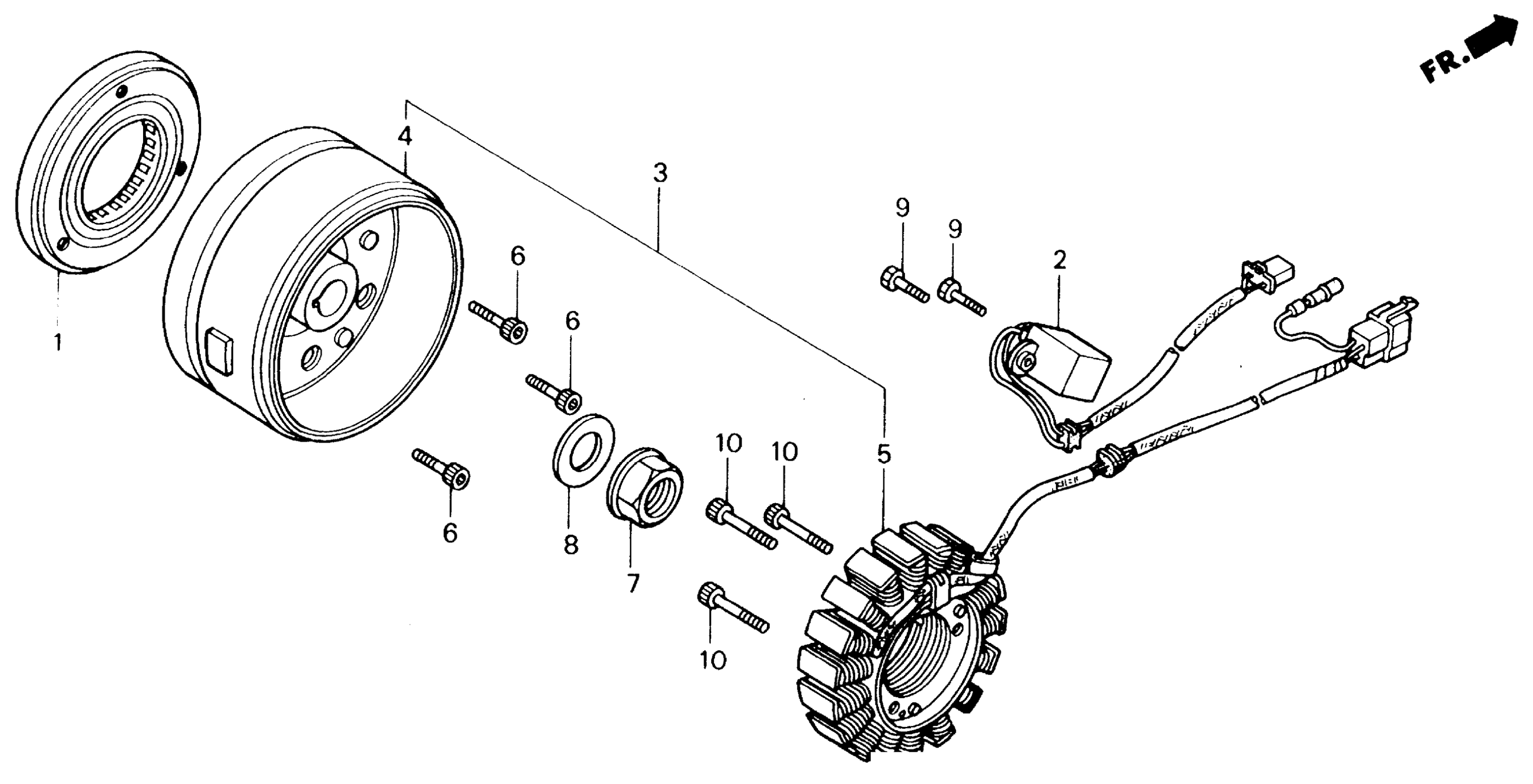

Honda CH250A (89) ELITE 250, JPN, VIN# JH2MF030-KK000011 ALTERNATOR Diagram

#

Description

Price

1

CLUTCH ASSY., STARTER ONE-WAY

28120-KM1-013

Unavailable

2

GENERATOR ASSY., PULSE

30300-KAB-000

Unavailable

3

ALTERNATOR ASSY., FLYWHEEL TYPE (NOT AVAILABLE) This part replaces 31100-KAB-008.

31100-KAB-018

Unavailable

4

FLYWHEEL

31110-KAB-008

Unavailable

5

STATOR This part replaces 31120-KAB-008.

31120-KAB-018

Unavailable

5

STATOR

31120-KAB-018

Unavailable

6

BOLT, SOCKET (8X18)

90010-KM1-000

$4.78

7

NUT, FLANGE (16X1.0) This part replaces 90203-KM1-020.

90203-KRJ-791

$3.84

8

WASHER, THRUST (16.2X30X2.0)

90431-KM1-010

$3.70

9

BOLT, HEX. (5X16) This part replaces 92000-05016-0A.

92101-05016-0A

$0.68

9

BOLT, HEX. (5X16)

92101-05016-0A

$0.68

10

BOLT, SOCKET (6X28)

96700-06028-00

$3.77
