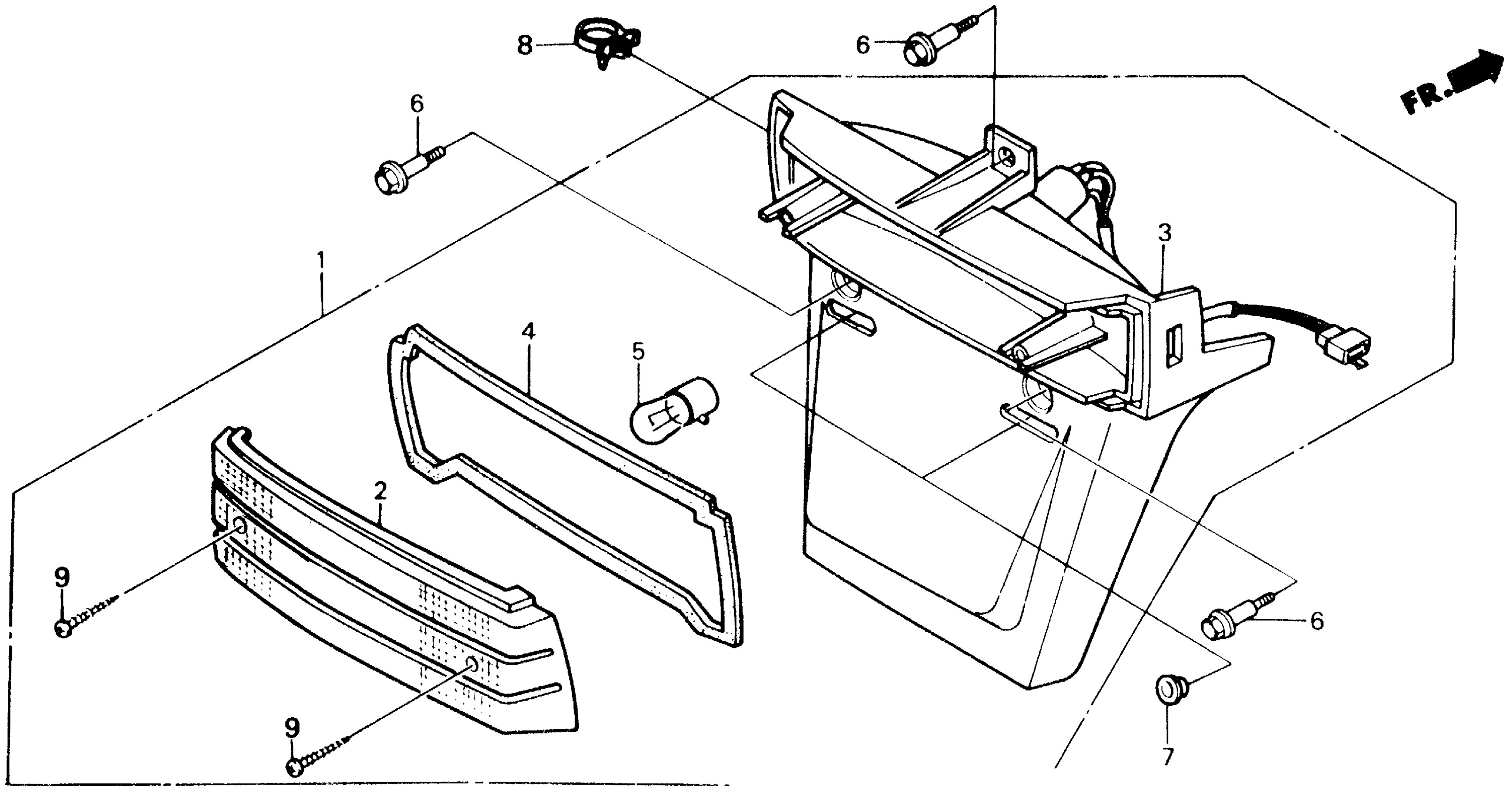

Honda CH250A (88) ELITE 250, JPN, VIN# JH2MF010-JK300001 TO JH2MF010-JK301100 TAILLIGHT Diagram

TAILLIGHT UNIT (NOT AVAILABLE)

33701-KM1-672

Unavailable

LENS, TAILLIGHT (NOT AVAILABLE)

33702-KM1-672

Unavailable

BASE, TAILLIGHT (NOT AVAILABLE)

33703-KM1-671

Unavailable

GASKET, TAILLIGHT LENS

33709-KM1-003

Unavailable

BULB, STOP & TAILLIGHT (12V 27/7W)

34906-MG9-771

$4.15

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.

34906-MG9-771

$4.15

BOLT, FLANGE (6MM)

90111-187-000

$5.59

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

SCREW, TAPPING (4X30)

93901-34780

$1.49
