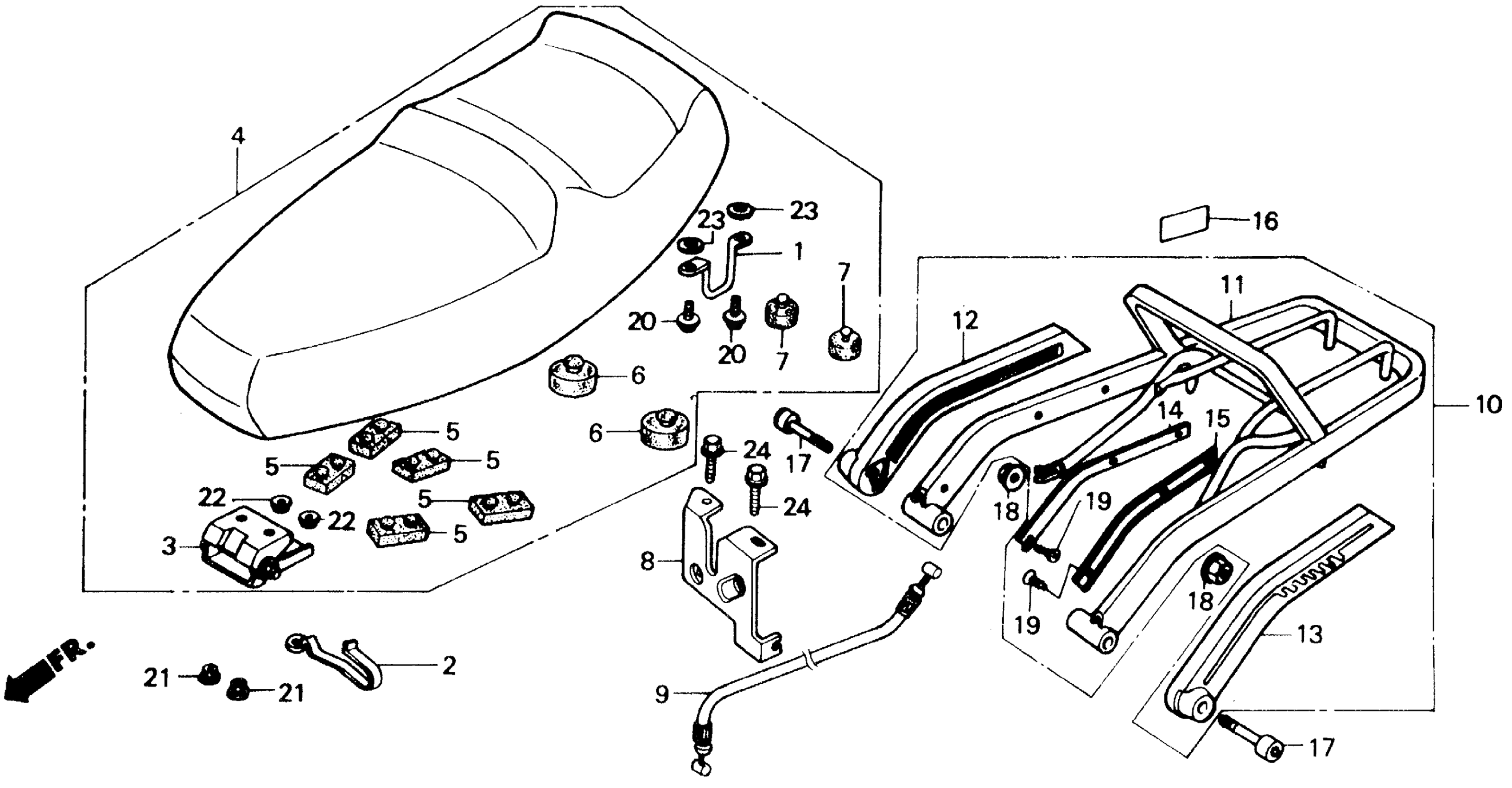

Honda CH250A (88) ELITE 250, JPN, VIN# JH2MF010-JK300001 TO JH2MF010-JK301100 SEAT Diagram

BAR, SEAT LOCK

77102-GC8-300

Unavailable

HOOK, HELMET HOLDER (NOT AVAILABLE)

77106-KM1-000

Unavailable

HINGE, SEAT

77110-KM1-770

Unavailable

SEAT ASSY., DOUBLE *NH1L* (TYPE2) (BLACK) (NOT AVAILABLE)

77200-KM1-830ZB

Unavailable

RUBBER, SEAT SETTING

77204-312-000

$5.05

RUBBER, SEAT CUSHION

77206-GF0-000

$5.46

RUBBER, SEAT SETTING

77206-KG8-000

$6.31

LOCK, SEAT

77230-GG2-000

Unavailable

CABLE, SEAT LOCK

77241-KM1-000

Unavailable

CARRIER, LUGGAGE

81200-KM1-000

Unavailable

BOLT, SOCKET (8X73.5)

90115-KM1-000

Unavailable

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

SCREW-WASHER (4X10)

93891-04010-08

$1.49

NUT, FLANGE (6MM)

90203-SB0-000

$4.59

NUT, FLANGE (6MM)

94050-06080

$1.49

WASHER, PLAIN (4MM)

94103-04000

$1.49

BOLT, FLANGE (6X10)

95701-06010-00

$1.49
