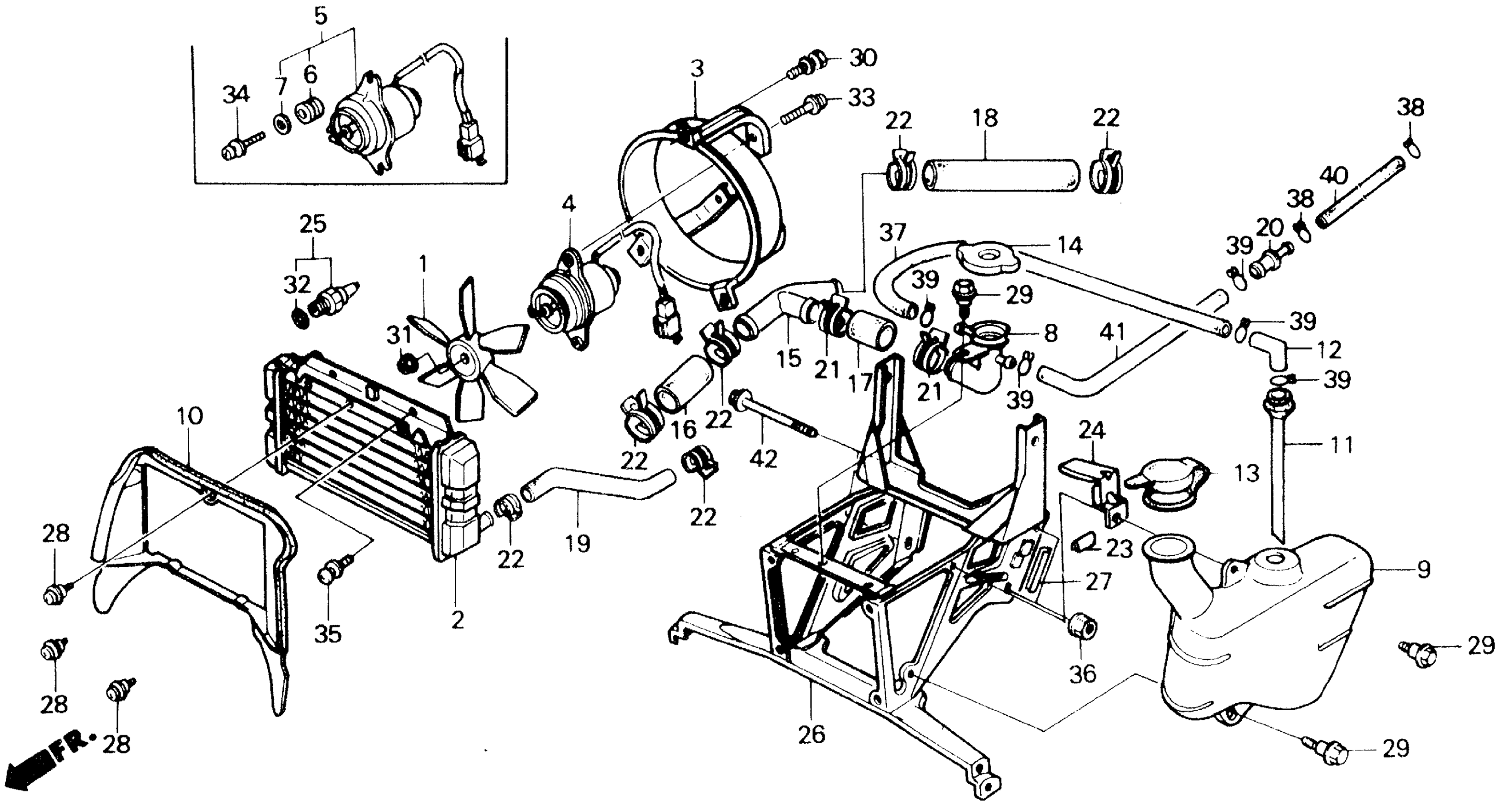

Honda CH250A (88) ELITE 250, JPN, VIN# JH2MF010-JK300001 TO JH2MF010-JK301100 RADIATOR Diagram

#

Description
Price

1

FAN, COOLING (TOYO MITSUBA)

19009-KM3-003

$66.16

2

RADIATOR SET

19010-KAB-305

Unavailable

2

RADIATOR SET This part replaces 19010-KM1-014.

19010-KAB-305

Unavailable

2

RADIATOR SET This part replaces 19010-KM1-024.

19010-KAB-305

Unavailable

3

SHROUD

19015-KM1-831

Unavailable

4

MOTOR, COOLING FAN This part replaces 19030-KM1-830.

19030-KS4-013

$272.69

4

MOTOR, COOLING FAN This part replaces 19030-KM1-831.

19030-KS4-013

$272.69

4

MOTOR, COOLING FAN This part replaces 19030-KM1-832.

19030-KS4-013

$272.69

4

MOTOR, COOLING FAN

19030-KS4-013

$272.69

8

NECK, FILLER

19039-KM1-004

$29.31

9

TANK, RESERVE

19101-KM1-000

Unavailable

10

DUCT, AIR

19102-KM1-010

Unavailable

11

TUBE, LEVEL This part replaces 19102-463-000.

19205-MF5-010

Unavailable

11

TUBE, LEVEL This part replaces 19205-MF5-000.

19205-MF5-010

Unavailable

11

TUBE, LEVEL

19205-MF5-010

Unavailable

12

JOINT, TUBE

19103-MB9-000

$6.34

13

CAP, RESERVE TANK

19104-MB0-700

$12.16

14

CAP, RADIATOR FILLER This part replaces 19111-KE1-003.

19111-KE1-013

$34.86

14

CAP, RADIATOR FILLER

19111-KE1-013

$34.86

15

JOINT (THREE-WAY) (NOT AVAILABLE)

19121-KM1-000

Unavailable

16

HOSE A

19122-KM1-000

Unavailable

17

HOSE B

19123-KM1-000

Unavailable

18

HOSE C

19124-KM1-000

Unavailable

19

HOSE D (NOT AVAILABLE)

19125-KM1-000

Unavailable

20

JOINT, TUBE This part replaces 19126-KM1-000.

19126-KM1-010

$3.90

21

CLAMP, HOSE (22-29MM) This part replaces 19513-MF5-000.

19517-ML7-691

$11.62

21

CLAMP, HOSE (22-29MM) This part replaces 19513-MM4-003.

19517-ML7-691

$11.62

21

CLAMP, HOSE (22-29MM)

19517-ML7-691

$11.62

22

CLIP B, HOSE

19514-ME9-003

$5.64

23

PROTECTOR, HARNESS

32106-KM1-000

Unavailable

24

STAY, FR. COVER LID

33105-KM1-000

Unavailable

25

SWITCH ASSY., THERMOSTAT This part replaces 37760-KE7-003.

37760-KS4-880

Unavailable

26

BRACKET, RADIATOR MOUNTING

50310-KM1-000

Unavailable

27

MOLDING, WIND

64209-KJ9-000

Unavailable

28

SCREW, HEADLIGHT SETTING

90101-087-720

$1.93

29

BOLT, FLANGE (6MM)

90111-162-000

$2.89

30

BOLT-WASHER (5X12)

90125-KM1-831

$2.52

31

NUT, TOOTHED (3MM)

90308-KM3-003

$2.33

32

O-RING (13.5X1.4)

91307-PH7-660

$2.83

32

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.83

33

SCREW-WASHER (4X8)

93891-04008-08

$1.49

35

SCREW-WASHER (6X12)

93891-06012-00

$1.49

36

NUT, FLANGE (6MM)

94050-06080

$1.49

37

BULK HOSE, FUEL (7.5X8000) (7.3X300)

95001-75008-60M

$103.82

38

CLIP, TUBE (B7)

95002-02070

$1.80

39

CLIP, TUBE (B12)

95002-02120

$2.00

40

BULK HOSE, VACUUM (3.5X1000) (3.5X990)

95005-35001-20M

$9.67

41

BULK HOSE (7.3X1000)

95005-75001-20M

$22.45

42

BOLT, FLANGE (6X100)

95701-06100-08

$2.88
