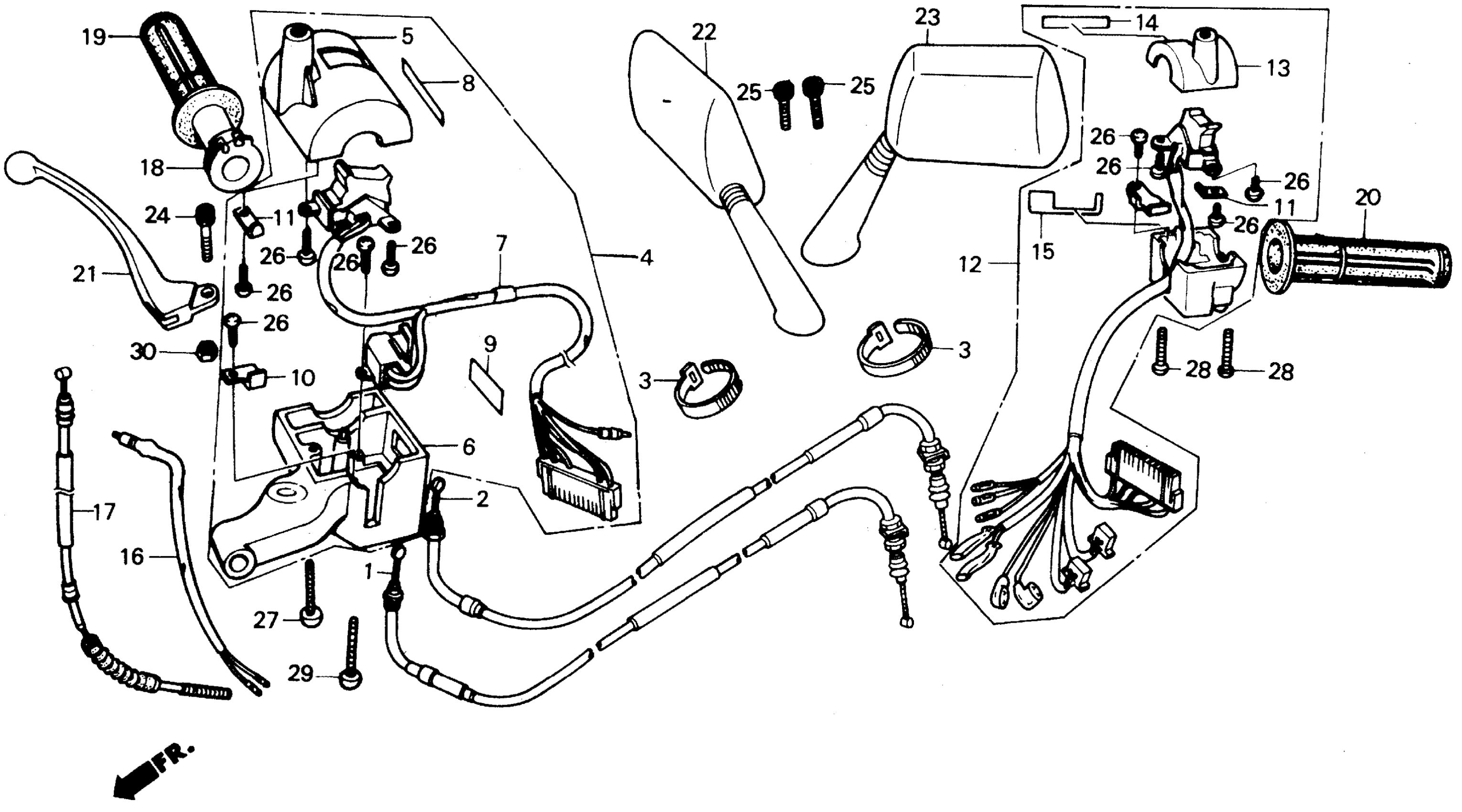

Honda CH250A (88) ELITE 250, JPN, VIN# JH2MF010-JK300001 TO JH2MF010-JK301100 HANDLE SWITCH Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-KM1-000

Unavailable

2

CABLE B, THROTTLE

17920-KM1-000

Unavailable

3

BAND B2, CABLE HARNESS

95014-62200

$2.11

4

SWITCH ASSY., STARTER STOP (NOT AVAILABLE)

35150-KM1-831

Unavailable

5

CASE (UPPER)

35151-KM1-000

Unavailable

6

CASE (LOWER)

35152-KM1-830

Unavailable

7

SWITCH (NOT AVAILABLE)

35153-KM1-670

Unavailable

8

LABEL I

35154-KM1-770

Unavailable

9

LABEL J

35155-KM1-770

Unavailable

10

CLAMP A, WIRE

35157-KM1-000

Unavailable

11

CLAMP B, WIRE

35158-KM1-000

Unavailable

12

SWITCH ASSY., TURN SIGNAL & HORN & DIMMER (NOT AVAILABLE)

35200-KM1-830

Unavailable

13

CASE (UPPER)

35201-KM1-000

Unavailable

14

LABEL K

35202-KM1-770

Unavailable

15

LABEL L

35203-KM1-770

Unavailable

16

SWITCH ASSY., FR. STOP

35340-GS7-003

Unavailable

16

SWITCH ASSY., FR. STOP This part replaces 35340-KJ9-010.

35340-GS7-003

Unavailable

17

CABLE, FR. BRAKE (NOT AVAILABLE)

45450-KM1-770

Unavailable

18

PIPE, THROTTLE GRIP (NOT AVAILABLE)

53141-KM1-000

Unavailable

19

RUBBER, R. GRIP

53165-198-000

Unavailable

20

GRIP, L. HANDLE

53166-198-000

$12.63

21

LEVER, R. HANDLEBAR

53175-KM1-830

Unavailable

22

MIRROR, R.

88110-KM1-003

Unavailable

23

MIRROR, L.

88120-KM1-003

Unavailable

24

BOLT, HANDLE LEVER PIVOT

90113-HA6-000

Unavailable

25

BOLT, SOCKET (8X16)

90115-463-000

$8.94

26

SCREW, PAN (3X8)

93500-03008-0H

$1.49

27

SCREW, PAN (5X32)

93500-05032-0A

$1.49

28

SCREW, PAN (5X45)

93500-05045-0A

$1.49

29

SCREW, PAN (5X50)

93500-05050-0A

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM)

94001-06200-0S

$1.49
