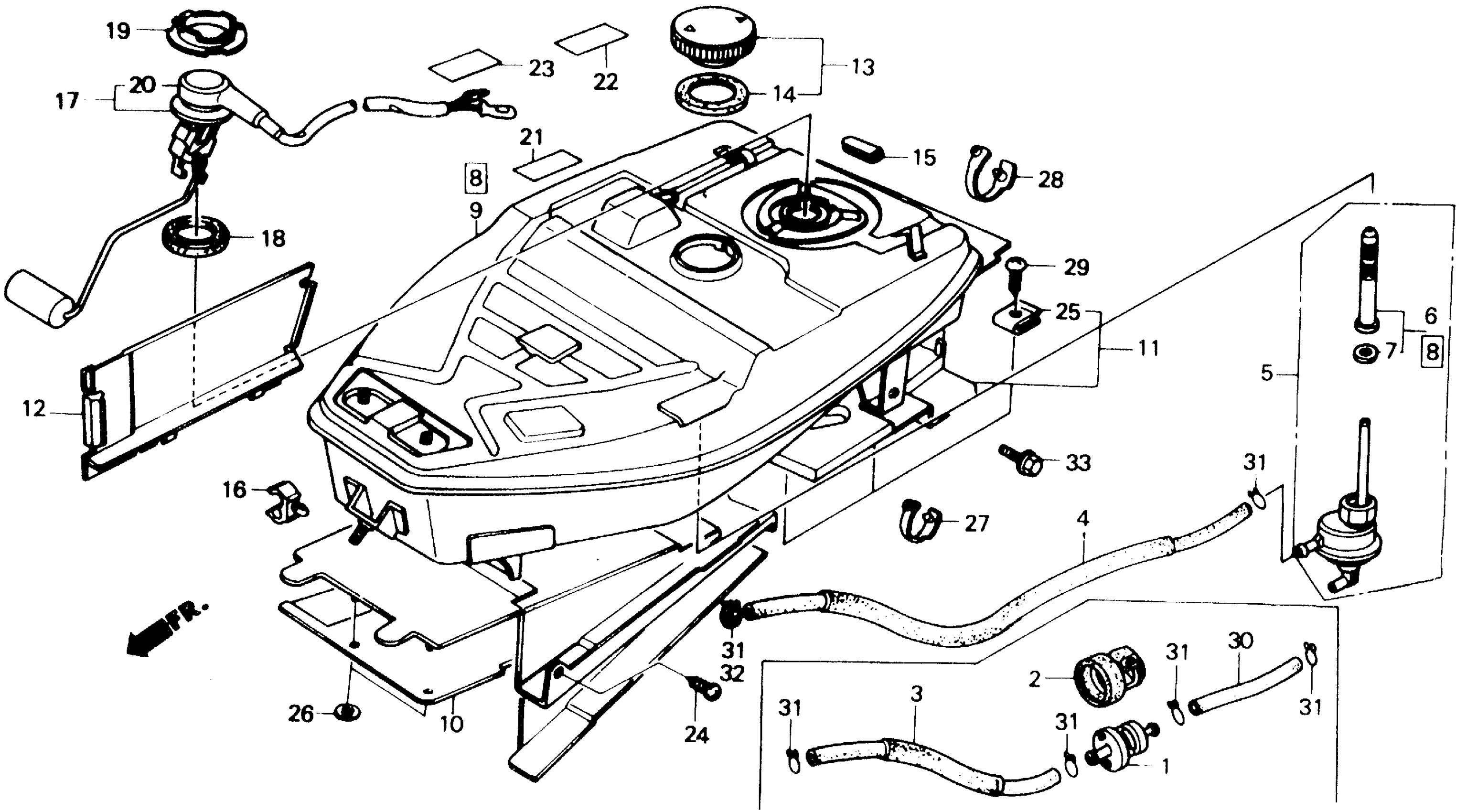

Honda CH250A (88) ELITE 250, JPN, VIN# JH2MF010-JK300001 TO JH2MF010-JK301100 FUEL TANK Diagram

#

Description
Price

4

TUBE, FUEL (4.5X315) (NOT AVAILABLE)

16916-KM1-770

Unavailable

5

PETCOCK ASSY., AUTO This part replaces 16950-KJ9-751.

16950-KJ9-752

$52.06

5

PETCOCK ASSY., AUTO

16950-KJ9-752

$52.06

6

SCREEN SET, FUEL STRAINER

16952-GM8-305

Unavailable

6

SCREEN SET, FUEL STRAINER This part replaces 16952-KJ9-751.

16952-GM8-305

Unavailable

7

O-RING

16958-397-771

$4.93

9

TANK, FUEL (NOT AVAILABLE)

17500-KM1-770

Unavailable

11

INSULATOR, FUEL TANK

17505-KM1-770

Unavailable

13

CAP, FUEL FILLER This part replaces 17620-GE7-023.

17620-GE7-033

Unavailable

14

GASKET This part replaces 17631-096-701.

17631-096-702

$2.36

16

CLAMP, SPARK PLUG WIRE

32127-MJ1-670

$2.43

16

CLAMP, SPARK PLUG WIRE This part replaces 32981-371-000.

32127-MJ1-670

$2.43

17

FUEL UNIT (NOT AVAILABLE)

37800-KM1-771

Unavailable

18

GASKET, BASE

37801-GA7-700

$4.81

19

RETAINER, FUEL UNIT

37802-GA7-700

$4.81

20

COVER, FUEL UNIT

37805-KG8-000

Unavailable

22

LABEL, HIGH ALTITUDE

87139-463-670

$6.58

23

LABEL, FUEL (TYPEW) This part replaces 87586-MR6-670ZB.

87586-MR6-670ZD

Unavailable

23

LABEL, FUEL (TYPEW)

87586-MR6-670ZD

Unavailable

24

SCREW, TAPPING (4X10)

90002-SB2-000

$4.23

25

NUT, SPRING (4MM)

90302-SA4-003

$4.91

29

SCREW, TAPPING (4X12)

93903-44380

$0.83

31

CLIP, TUBE (B8)

95002-02080

$1.59

32

CLAMP, TUBE (D8)

95002-40800-08

$2.04

33

BOLT, FLANGE (6X12)

95701-06012-00

$1.81
