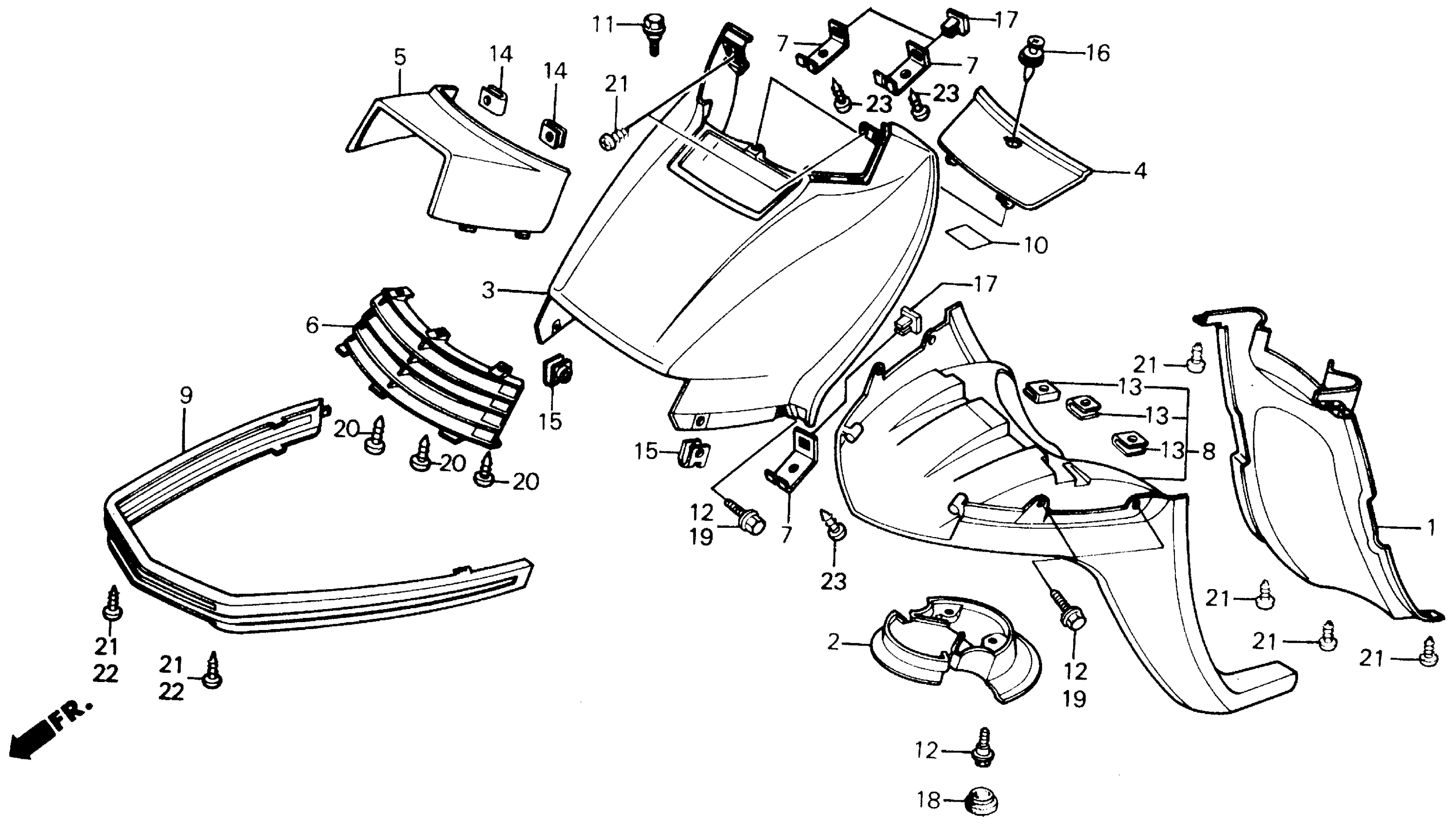

Honda CH250A (88) ELITE 250, JPN, VIN# JH2MF010-JK300001 TO JH2MF010-JK301100 FRONT COVER Diagram

#

Description
Price

1

FENDER, FR. (LOWER)

61101-KM1-000

Unavailable

2

FENDER, FR. FORK

61102-KM1-000

Unavailable

3

COVER, FR. (UPPER) *NH163P* (WOL) (PEARL GOLD BLACK) (NOT AVAILABLE)

64301-KM1-000ZF

Unavailable

3

COVER, FR. (UPPER) *NH127M* (WOL) (MYTH GRAY METALLIC) (NOT AVAILABLE)

64301-KM1-000ZH

Unavailable

4

LID, FR. COVER *NH163P* (PEARL GOLD BLACK) (NOT AVAILABLE)

64302-KM1-000ZF

Unavailable

4

LID, FR. COVER *NH127M* (MYTH GRAY METALLIC) (NOT AVAILABLE)

64302-KM1-000ZH

Unavailable

5

COVER, HEADLIGHT *NH163P* (PEARL GOLD BLACK) (NOT AVAILABLE)

64304-KM1-000ZF

Unavailable

5

COVER, HEADLIGHT *NH127M* (MYTH GRAY METALLIC)

64304-KM1-000ZH

Unavailable

6

GRILLE, FR. COVER (UPPER) (NOT AVAILABLE)

64305-KM1-830

Unavailable

7

BRACKET, FR. COVER

64306-KM1-000

Unavailable

8

COVER, FR. *NH204R* This part replaces 64315-KM1-830ZB.

64315-KM1-830ZD

Unavailable

9

PROTECTOR, FR. (TYPE1) (WL) (NOT AVAILABLE)

64323-KM1-880ZA

Unavailable

9

PROTECTOR, FR. COVER (TYPE2) (WOL) (NOT AVAILABLE) This part replaces 64323-KM1-880ZB.

64323-KM1-830ZB

Unavailable

10

LABEL, RADIATOR (TYPEW)

87508-KM1-830ZB

Unavailable

11

BOLT, FLANGE (6MM)

90110-147-000

$3.83

12

BOLT, FLANGE (6MM)

90111-187-000

$5.59

13

NUT, SPRING (4MM)

90302-SA4-003

$5.44

14

NUT, SPRING (5MM)

90320-692-000

$5.98

15

NUT, CLIP (6MM)

90344-GM9-000

$4.75

16

CLIP, BODY COVER

90683-GR1-003

$2.92

17

GROMMET, SCREW (4MM)

90662-196-000

$2.20

18

PLUG, LOCATE HOLE

90851-680-000

$4.69

19

BOLT-WASHER (6X16)

93404-06016-08

$1.55

20

SCREW, TAPPING (4X10)

93903-24280

$1.49

21

SCREW, TAPPING (4X12)

93903-24380

$1.49

22

SCREW, TAPPING (4X16)

93903-24480

$1.49

23

SCREW, TAPPING (4X12)

93904-24310

Unavailable
