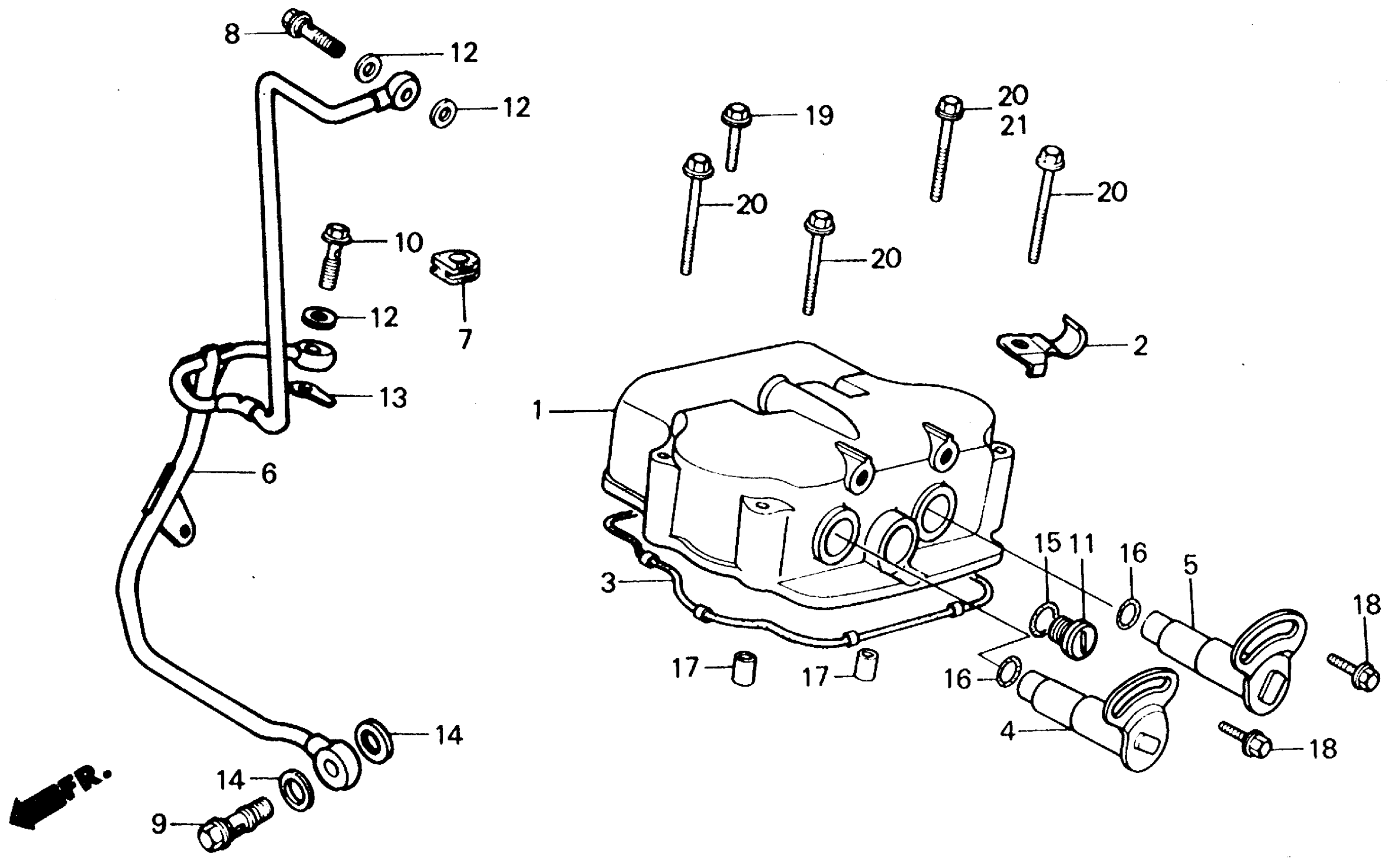

Honda CH250A (88) ELITE 250, JPN, VIN# JH2MF010-JK300001 TO JH2MF010-JK301100 CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD | Use up to Engine SN 5300015 This part replaces 12301-KM1-020.

12301-KV7-672

Unavailable

1

COVER, CYLINDER HEAD This part replaces 12301-KM1-030.

12301-KV7-672

Unavailable

1

COVER, CYLINDER HEAD

12301-KV7-672

Unavailable

3

GASKET, CYLINDER HEAD COVER

12391-KJ9-010

$12.56

4

SHAFT, ROCKER ARM IN.

14450-KJ9-020

Unavailable

5

SHAFT, ROCKER ARM EX.

14460-KJ9-020

Unavailable

6

PIPE A, OIL

15510-KM1-671

Unavailable

7

GROMMET, OIL PIPE HOLDER

15532-KM1-000

$1.97

8

BOLT A, OIL PASSAGE

90001-KJ9-000

$7.16

9

BOLT B, OIL PASSAGE

90002-KM1-000

Unavailable

10

BOLT C, OIL PASSAGE

90003-KJ9-000

Unavailable

11

CAP, ALTERNATOR This part replaces 90084-428-000.

90084-471-000

Unavailable

11

CAP, ALTERNATOR

90084-471-000

Unavailable

12

WASHER C (8MM) This part replaces 90405-KM1-000.

90475-703-000

$1.49

12

WASHER C (8MM)

90475-703-000

$1.49

13

WASHER, OIL PIPE JOINT SEALING (C)

90406-KM1-000

$4.31

14

WASHER B, OIL PIPE JOINT SEALING

90407-KM1-000

$4.34

15

O-RING (13.8X2.5)

91303-377-000

$3.42

16

O-RING (9.4X2.4)

91304-KK3-830

$2.31

16

O-RING (9.4X2.4) This part replaces 91304-107-000.

91304-KK3-830

$2.31

17

PIN A, DOWEL (10X14)

94301-10140

$2.28

18

BOLT, FLANGE (6X12) This part replaces 93493-06012-07.

95701-06012-00

$1.62

18

BOLT, FLANGE (6X12) This part replaces 95700-06012.

95701-06012-00

$1.62

18

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

18

BOLT, FLANGE (6X12) This part replaces 95700-06012-10.

95701-06012-00

$1.62

18

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

18

BOLT, FLANGE (6X12) This part replaces 95800-06012.

95701-06012-00

$1.62

18

BOLT, FLANGE (6X12) This part replaces 95800-06012-00.

95701-06012-00

$1.62

18

BOLT, FLANGE (6X12) This part replaces 95900-06012-00.

95701-06012-00

$1.62

18

BOLT, FLANGE (6X12) This part replaces 95900-06012-02.

95701-06012-00

$1.62

19

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

19

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

19

BOLT, FLANGE (6X25) This part replaces 95900-06025-00.

95701-06025-00

$1.80

20

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

20

BOLT, FLANGE (6X50) This part replaces 95900-06050-00.

95701-06050-00

$2.06

21

BOLT, FLANGE (6X55)

95701-06055-08

$2.16

21

BOLT, FLANGE (6X55) This part replaces 95900-06055-08.

95701-06055-08

$2.16
