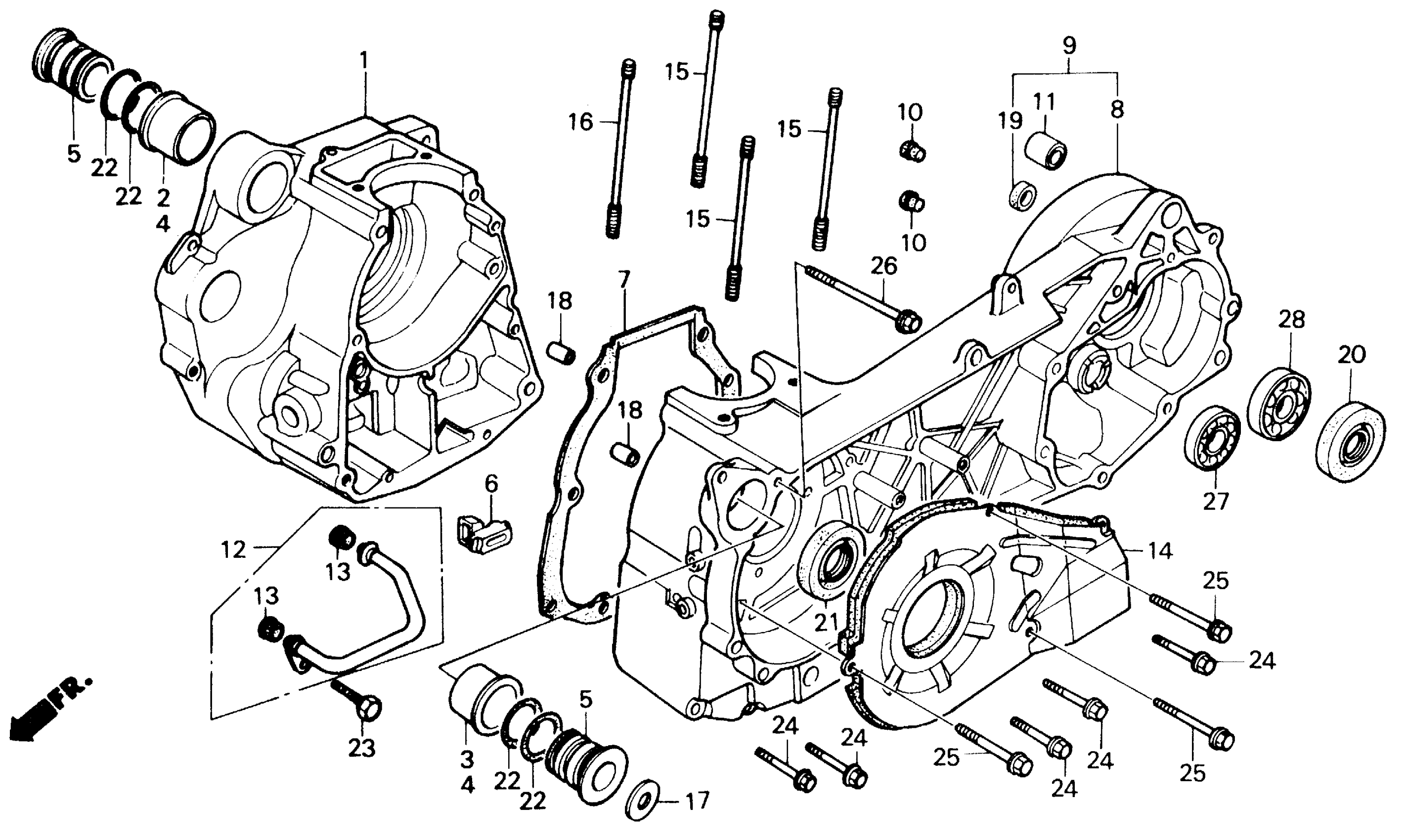

Honda CH250A (88) ELITE 250, JPN, VIN# JH2MF010-JK300001 TO JH2MF010-JK301100 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R. This part replaces 11100-KS4-000.

11100-KS4-010

Unavailable

1

CRANKCASE, R.

11100-KS4-010

Unavailable

2

BUSH, R. ENGINE HANGER (OUTER)

11103-KJ9-750

$15.67

3

BUSH, L. ENGINE HANGER (OUTER) This part replaces 11104-KJ9-750.

11104-KJ9-751

$15.50

3

BUSH, L. ENGINE HANGER (OUTER)

11104-KJ9-751

$15.50

5

BUSH, ENGINE HANGER (INNER)

11105-KJ9-750

$19.18

6

RUBBER, OIL FENCE

11121-KM1-000

Unavailable

7

GASKET, R. CRANKCASE This part replaces 11191-KM1-010.

11191-KS4-690

$8.75

7

GASKET, R. CRANKCASE This part replaces 11191-KM1-306.

11191-KS4-690

$8.75

7

GASKET, R. CRANKCASE

11191-KS4-690

$8.75

9

CRANKCASE, L. This part replaces 11200-KM1-830.

11200-KM1-831

Unavailable

10

RUBBER, SPRING GUIDE

11202-GC7-300

Unavailable

11

BUSH, RR. CUSHION RUBBER (LOWER)

11203-GC7-300

$10.71

12

PIPE B, OIL

15520-KM1-000

$22.66

13

SEAL, RUBBER

15525-KM1-000

$3.43

14

INSULATOR, HEAT

19600-KS4-671

Unavailable

15

BOLT A, STUD (8MM) This part replaces 90031-KM1-000.

90031-KM1-010

$7.70

15

BOLT A, STUD (8MM)

90031-KM1-010

$7.70

16

BOLT B, STUD (8MM) This part replaces 90032-KM1-000.

90032-KM1-010

Unavailable

16

BOLT B, STUD (8MM)

90032-KM1-010

Unavailable

18

PIN, DOWEL (10X16)

94301-10160

$2.28

19

OIL SEAL (14X20X3)

91201-434-003

$4.26

19

OIL SEAL (14X20X3.2) This part replaces 91201-434-005.

91201-434-003

$4.26

20

OIL SEAL (34X52X5) (NOK) This part replaces 91253-KM1-000.

91253-KM1-003

$9.18

20

OIL SEAL (34X52X5) (NOK)

91253-KM1-003

$9.18

20

OIL SEAL (34X52X5) (NOK) This part replaces 91253-KM1-005.

91253-KM1-003

$9.18

21

OIL SEAL (27.9X40X8) (ARAI)

91261-KM1-003

$9.55

21

OIL SEAL (27.9X40X8) (ARAI) This part replaces 91261-KM1-005.

91261-KM1-003

$9.55

22

O-RING (16MM) This part replaces 91304-MJ0-003.

91303-800-000

$2.23

23

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

23

BOLT, HEX. (6X12) This part replaces 92000-06012-0A.

92101-06012-0A

$1.49

23

BOLT, HEX. (6X12) This part replaces 92100-06012.

92101-06012-0A

$1.49

23

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

23

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

24

BOLT, FLANGE (6X60)

95701-06060-00

$1.49

24

BOLT, FLANGE (6X60) This part replaces 95900-06060-00.

95701-06060-00

$1.49

25

BOLT, FLANGE (6X70)

95701-06070-00

$2.19

25

BOLT, FLANGE (6X70) This part replaces 95900-06070-00.

95701-06070-00

$2.19

26

BOLT, FLANGE (6X125)

95701-06125-00

Unavailable

26

BOLT, FLANGE (6X125) This part replaces 95900-06125-00.

95701-06125-00

Unavailable

27

BEARING, RADIAL BALL (6301) (NTN CORP.)

91003-KS4-003

$26.75

28

BEARING, RADIAL BALL (6205UU)

96150-62053-10

Unavailable
