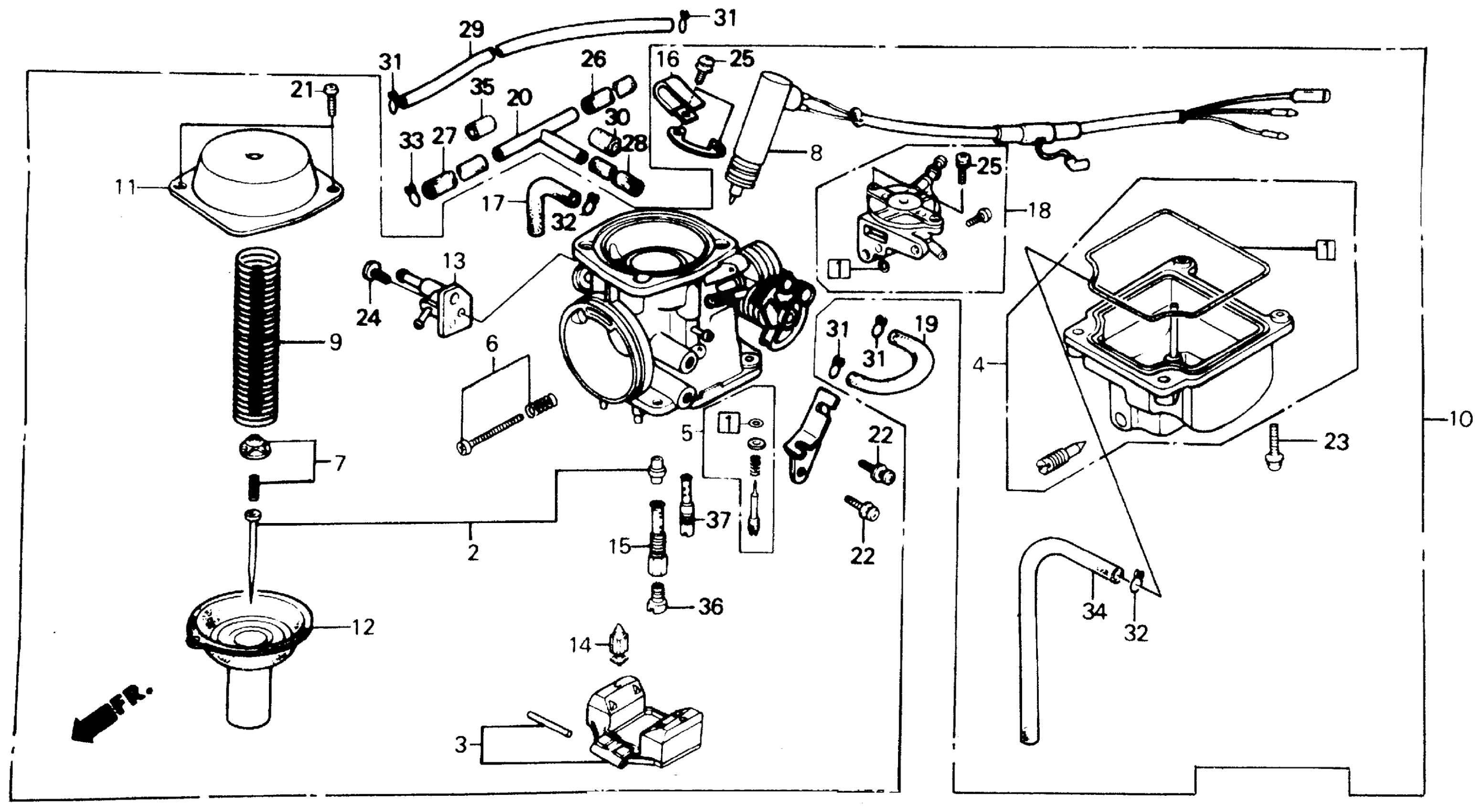

Honda CH250A (88) ELITE 250, JPN, VIN# JH2MF010-JK300001 TO JH2MF010-JK301100 CARBURETOR Diagram

#

Description
Price

1

GASKET SET A This part replaces 16010-KJ9-013.

16010-KS4-305

$43.94

1

GASKET SET A This part replaces 16010-KR0-003.

16010-KS4-305

$43.94

1

GASKET SET A

16010-KS4-305

$43.94

2

NEEDLE SET, JET

16012-KM1-851

Unavailable

3

FLOAT SET This part replaces 16013-MA6-003.

16013-KR3-980

$55.27

4

CHAMBER SET, FLOAT

16015-KM1-013

Unavailable

5

SCREW SET This part replaces 16016-KR3-671.

16016-MY6-770

$21.27

5

SCREW SET This part replaces 16016-ME5-671.

16016-MY6-770

$21.27

6

SCREW SET B

16028-KM1-771

Unavailable

7

PLATE SET, VALVE

16037-MA6-003

Unavailable

8

VALVE SET, STARTER This part replaces 16046-KM1-013.

16046-KM1-033

Unavailable

9

SPRING

16051-MA6-003

Unavailable

10

CARBURETOR ASSY. This part replaces 16100-KM1-835.

16100-KM1-837

Unavailable

11

TOP

16107-KM1-003

$43.80

12

PISTON, VACUUM

16111-KS4-013

Unavailable

13

HEATER

16136-KM1-003

Unavailable

14

VALVE, FLOAT

16155-KM1-771

$27.70

15

HOLDER, NEEDLE JET

16165-449-771

$31.28

16

BINDER (NOT AVAILABLE)

16179-MF2-631

Unavailable

17

TUBE, AIR VENT

16199-GC8-004

Unavailable

18

VALVE ASSY., AIR CUT (NOT AVAILABLE)

16510-KM1-771

Unavailable

19

TUBE, THERMOSTAT

19313-KM1-000

$5.43

21

SCREW, PAN (4X8)

93500-04008-0H

$1.49

21

SCREW, PAN (4X8) This part replaces 93500-04008-1H.

93500-04008-0H

$1.49

22

SCREW, PAN (5X12)

16080-KJ9-003

$3.41

23

SCREW, PAN (4X14)

93500-04014-0H

$1.49

23

SCREW, PAN (4X14) This part replaces 93500-04014-1H.

93500-04014-0H

$1.49

24

SCREW, PAN (5X12)

93500-05012-0H

$1.49

24

SCREW, PAN (5X12) This part replaces 93500-05012-1H.

93500-05012-0H

$1.49

25

SCREW-WASHER (4X8)

93892-04008-08

$1.49

29

TUBE, FUEL PETCOCK

16522-KM1-770

Unavailable

31

CLIP, TUBE (B7)

95002-02070

$1.80

32

CLIP, TUBE (B8)

95002-02080

$1.80

34

BULK HOSE, VINYL (4.5X8X1000) (4.5X8X390)

95003-09001-60M

$3.45

36

JET (#110) | (Optional). This part replaces 99101-GHB-1100.

99101-MBA-1100

$9.11

36

JET (#112)

99101-GHB-1120

$7.98

36

JET (#110) | (Optional). This part replaces 99101-393-1100.

99101-MBA-1100

$9.11

36

JET (#112) This part replaces 99101-393-1120.

99101-GHB-1120

$7.98

37

JET, SLOW (#38) This part replaces 99103-MA1-0380.

99104-MAZ-0380

$18.02

37

JET, SLOW (#38)

99104-MAZ-0380

$18.02
