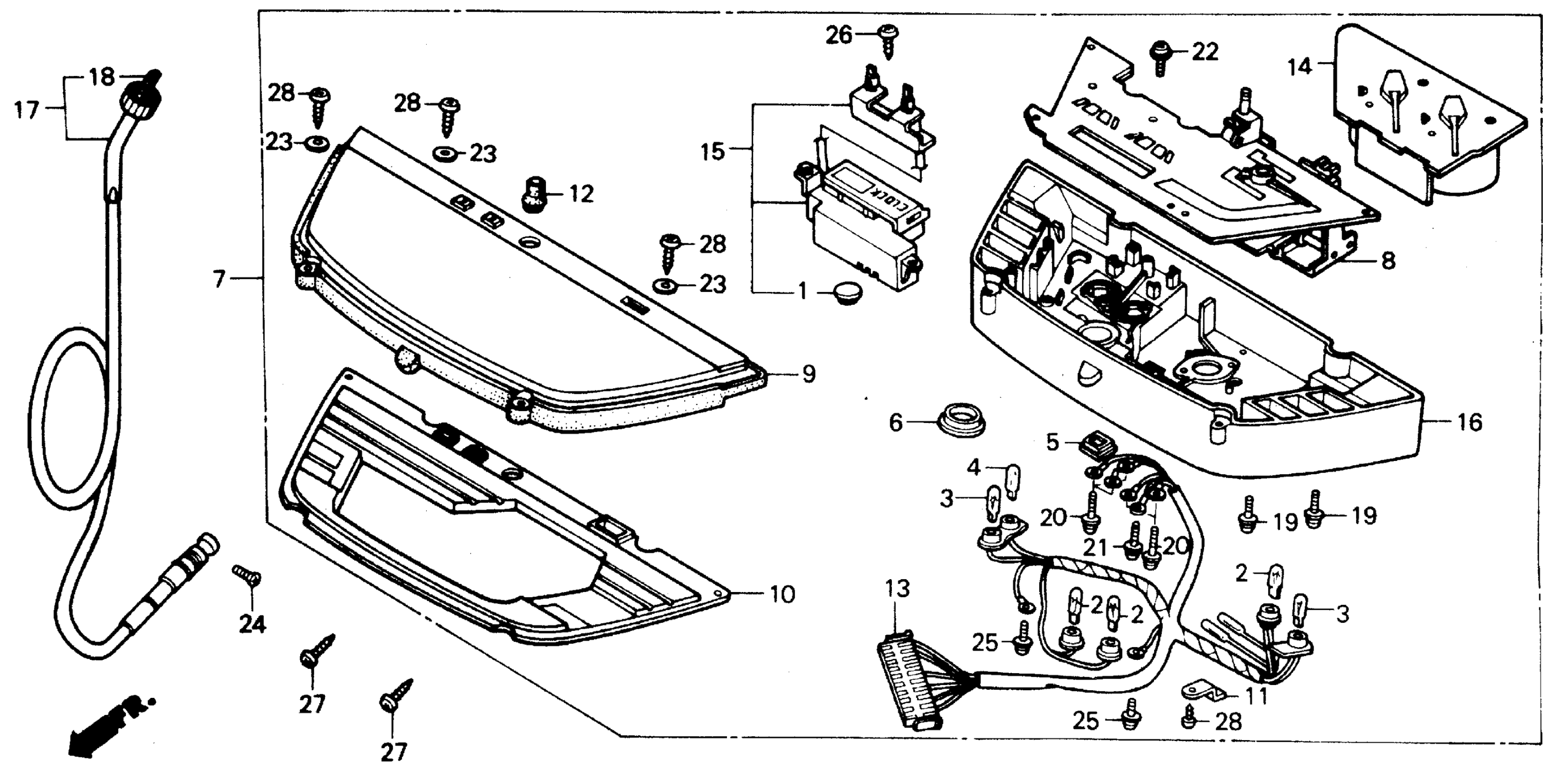

Honda CH250A (87) ELITE 250, JPN, VIN# JH2MF010-HK200001 TO JH2MF010-HK203692 SPEEDOMETER 87 Diagram

BATTERY (1.5V) (NOT AVAILABLE)

31550-KM1-830

Unavailable

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

BULB (12V3.4W2CP) (158) (NS)

37237-SA5-003

$4.17

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

BULB 12V 2.3W WED This part replaces 34908-MB0-003.

34275-S2X-003

$3.28

BULB, WEDGE BASE (12V 1.7W) (STANLEY)

34908-MB9-871

$2.78

GROMMET, WIRE

37115-KM1-009

Unavailable

GROMMET

37116-KM1-009

Unavailable

SPEEDOMETER ASSY.

37200-KM1-832

Unavailable

SPEEDOMETER

37210-KM1-831

Unavailable

LENS (NOT AVAILABLE)

37211-KM1-831

Unavailable

PANEL, METER (NOT AVAILABLE)

37212-KM1-831

Unavailable

CLIP

37216-KM1-009

Unavailable

KNOB, TRIP METER

37220-KM1-009

Unavailable

SOCKET

37223-KM1-831

Unavailable

METER ASSY., FUEL & TEMPERATURE

37330-KM1-831

Unavailable

CLOCK UNIT (37460-KM1-830 KM1L-F-7017) This part replaces 37460-KM1-830.

37460-KM1-831

Unavailable

CLOCK UNIT (37460-KM1-830 KM1L-F-7017)

37460-KM1-831

Unavailable

CASE ASSY., METER (LOWER) This part replaces 37617-KM1-831.

37617-KM1-881

Unavailable

CASE ASSY., METER (LOWER)

37617-KM1-881

Unavailable

CABLE, SPEEDOMETER This part replaces 44830-KM1-671.

44830-KM1-880

Unavailable

CABLE, SPEEDOMETER

44830-KM1-880

Unavailable

CABLE (INNER)

44831-KM1-671

Unavailable

SCREW-WASHER (3X10)

90104-KG8-000

Unavailable

SCREW-WASHER (3X16)

90104-KM1-009

Unavailable

SCREW-WASHER (3X18) This part replaces 90104-KM1-830.

90134-SH2-004

Unavailable

SCREW-WASHER (2.3X8)

90150-KM1-009

Unavailable

WASHER, PLAIN (4MM)

90401-KM1-830

Unavailable

SCREW, OVAL (5X18)

93700-05018-0A

$1.49

SCREW-WASHER (4X12)

93893-04012-08

$1.49

SCREW, TAPPING (3X12)

93901-42320

$1.49

SCREW, TAPPING (4X12)

93903-24320

$1.49

SCREW, TAPPING (4X12)

93903-34320

$1.49
