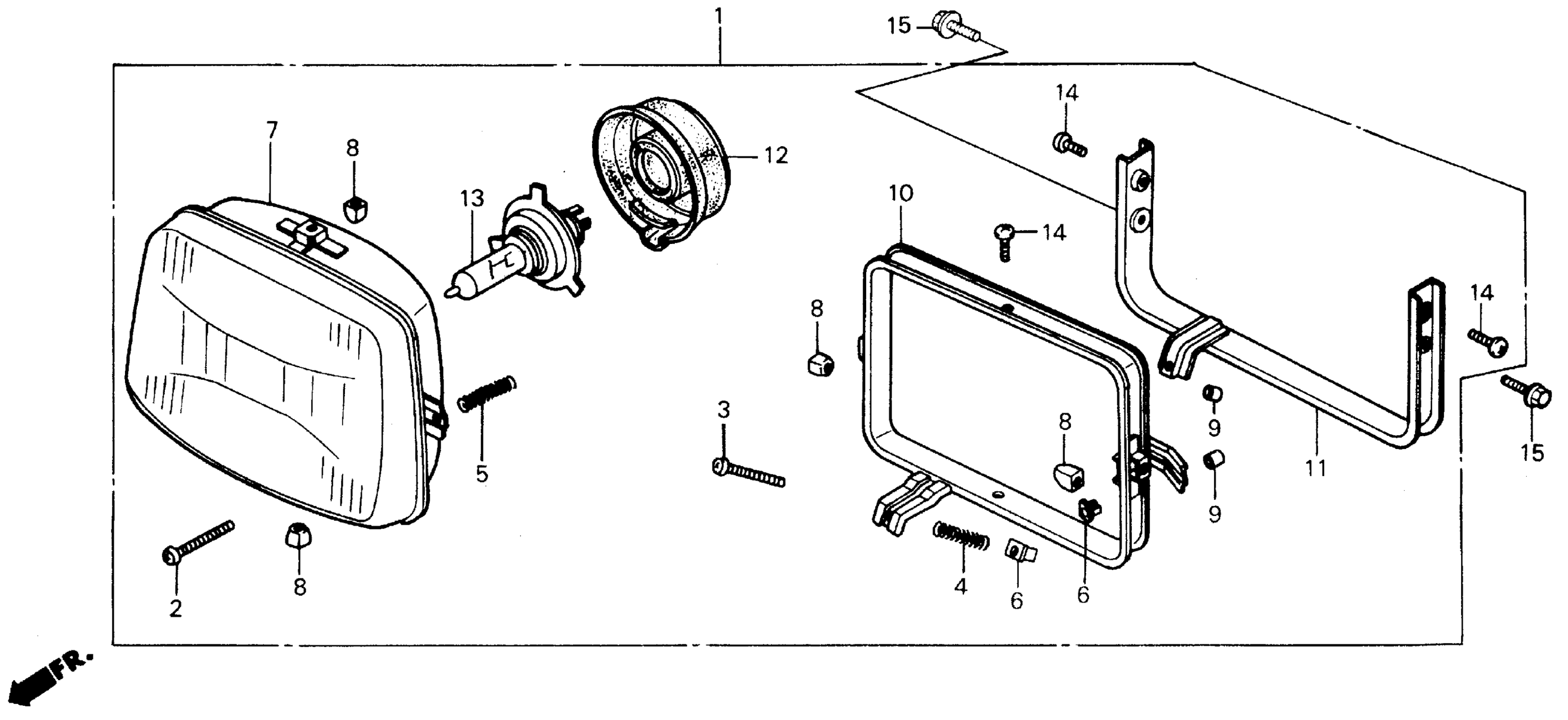

Honda CH250A (87) ELITE 250, JPN, VIN# JH2MF010-HK200001 TO JH2MF010-HK203692 HEADLIGHT Diagram

HEADLIGHT ASSY.

33100-KM1-003

Unavailable

SCREW A, BEAM ADJUSTING

33103-KM1-000

Unavailable

SCREW, HEADLIGHT BEAM ADJUSTING

33103-329-003

Unavailable

SPRING, BEAM ADJUSTING

33108-KM1-000

$2.52

SPRING A, BEAM ADJUSTING

33109-KM1-000

Unavailable

NUT, BEAM ADJUSTING

33118-438-841

$2.23

HEADLIGHT UNIT

33120-KM1-000

Unavailable

NUT, UNIT HOLDER

33128-471-003

$1.62

COVER, SCREW

33136-426-830

$1.89

RING A, SETTING

33153-KM1-000

Unavailable

RING B, SETTING

33154-KM1-000

Unavailable

COVER, RUBBER This part replaces 33180-471-901.

33180-471-902

$11.93

COVER, RUBBER

33180-471-902

$11.93

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601.

34901-MC7-602

$37.18

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601AH.

34901-MC7-602

$37.18

SCREW, PAN (5X10)

93500-05010-0H

$1.49

SCREW, PAN (5X10) This part replaces 93500-05010-08.

93500-05010-0H

$1.49

SCREW, PAN (5X10) This part replaces 93500-05010-1H.

93500-05010-0H

$1.49

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
