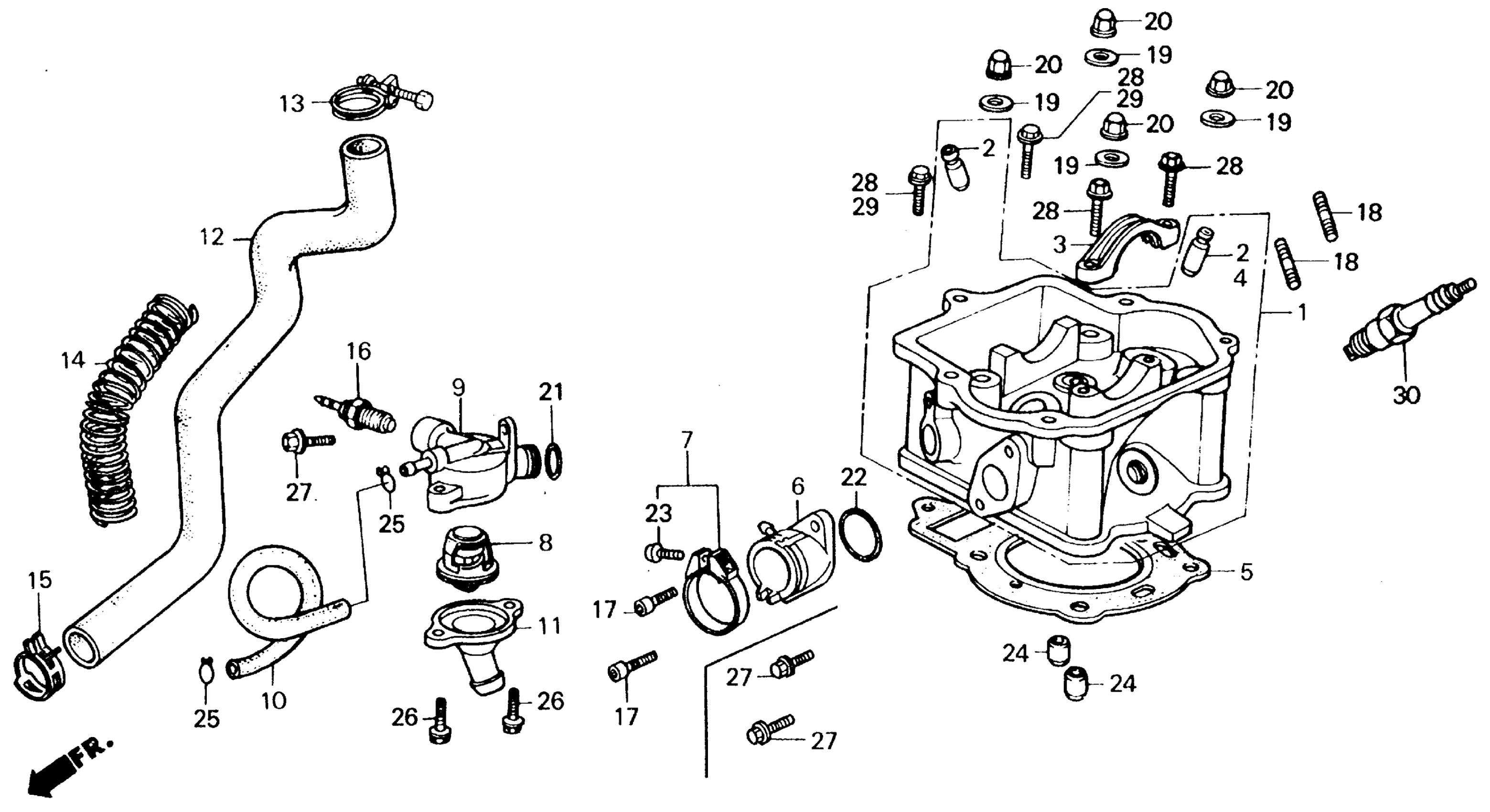

Honda CH250A (87) ELITE 250, JPN, VIN# JH2MF010-HK200001 TO JH2MF010-HK203692 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD | Use up to Engine SN 5201366 This part replaces 12200-KS4-010.

12200-KS4-020

Unavailable

1

CYLINDER HEAD

12200-KS4-020

Unavailable

2

GUIDE, VALVE (OS)

12204-KE7-305

Unavailable

2

GUIDE, VALVE (OS) This part replaces 12204-KE8-305.

12204-KE7-305

Unavailable

3

HOLDER, CAM

12211-KJ9-000

Unavailable

4

GUIDE, EX. VALVE

12245-KS4-305

Unavailable

5

GASKET, CYLINDER HEAD This part replaces 12251-KS4-000.

12251-KS4-315

Unavailable

5

GASKET, CYLINDER HEAD This part replaces 12251-KS4-305.

12251-KS4-315

Unavailable

5

GASKET, CYLINDER HEAD

12251-KS4-315

Unavailable

6

INSULATOR, CARBURETOR This part replaces 16210-KM1-000.

16210-KM1-010

$51.25

6

INSULATOR, CARBURETOR

16210-KM1-010

$51.25

7

BAND, INSULATOR This part replaces 16219-MB0-770.

16223-KS5-000

$14.20

7

BAND, INSULATOR

16223-KS5-000

$14.20

8

THERMOSTAT ASSY.

19300-KM1-003

$64.58

9

CASE, THERMOSTAT

19310-KM1-000

Unavailable

10

TUBE, THERMOSTAT

19313-KM1-000

$5.43

11

COVER, THERMOSTAT

19315-KM1-000

Unavailable

12

HOSE C, WATER (NOT AVAILABLE)

19503-KM1-010

Unavailable

13

CLAMP, WATER HOSE (25MM)

19506-KM1-003

$8.69

14

WIRE C, WATER HOSE GUARD

19507-KM1-830

$11.31

15

CLIP B, HOSE

19514-ME9-003

$5.64

16

THERMO UNIT (DENSO)

37750-PC1-004

$81.34

18

BOLT, SPECIAL STUD (41MM)

90033-KM1-010

$4.17

19

WASHER, SEALING (8MM)

90441-469-000

$5.28

20

NUT, CAP (8MM)

90443-107-000

$2.89

21

O-RING (13.8X1.9) | Use up to Engine SN 5203064 This part replaces 91301-KJ9-000.

91301-PC0-003

$2.66

21

O-RING (13.8X1.9) | Use up to Engine SN 5203064

91301-PC0-003

$2.66

21

O-RING (14.8X1.9) | Use from Engine SN 5203065 to 5204654 This part replaces 91301-KV7-670.

91307-PJ4-000

$3.47

21

O-RING (14.8X1.9) | Use from Engine SN 5203065 This part replaces 91301-KV7-671.

91307-PJ4-000

$3.47

21

O-RING (14.8X1.9) | Use from Engine SN 5203065

91307-PJ4-000

$3.47

22

O-RING (31.5X2.0) This part replaces 91304-KM1-003.

91304-MCA-A02

$2.30

23

SCREW, PAN (5X28)

93500-05028-0G

$1.49

24

PIN A, DOWEL (10X14)

94301-10140

$2.28

25

CLIP, TUBE (B7)

95002-02070

$1.80

26

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

26

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

27

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.80

27

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

28

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

28

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

29

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

29

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

30

SPARK PLUG (DPR5EA-9) (NGK) | (Optional).

98069-55916

$2.62

30

SPARK PLUG (X16EPR-U9) (DENSO) | (Optional).

98069-55926

$2.54

30

SPARK PLUG (DPR6EA-9) (NGK)

98069-56916

$2.62

30

SPARK PLUG (X20EPR-U9) (DENSO)

98069-56926

$2.54

30

SPARK PLUG (DPR7EA-9) (NGK) | (Optional).

98069-57916

$2.62

30

SPARK PLUG (X22EPR-U9) (DENSO) | (Optional).

98069-57926

$2.54
