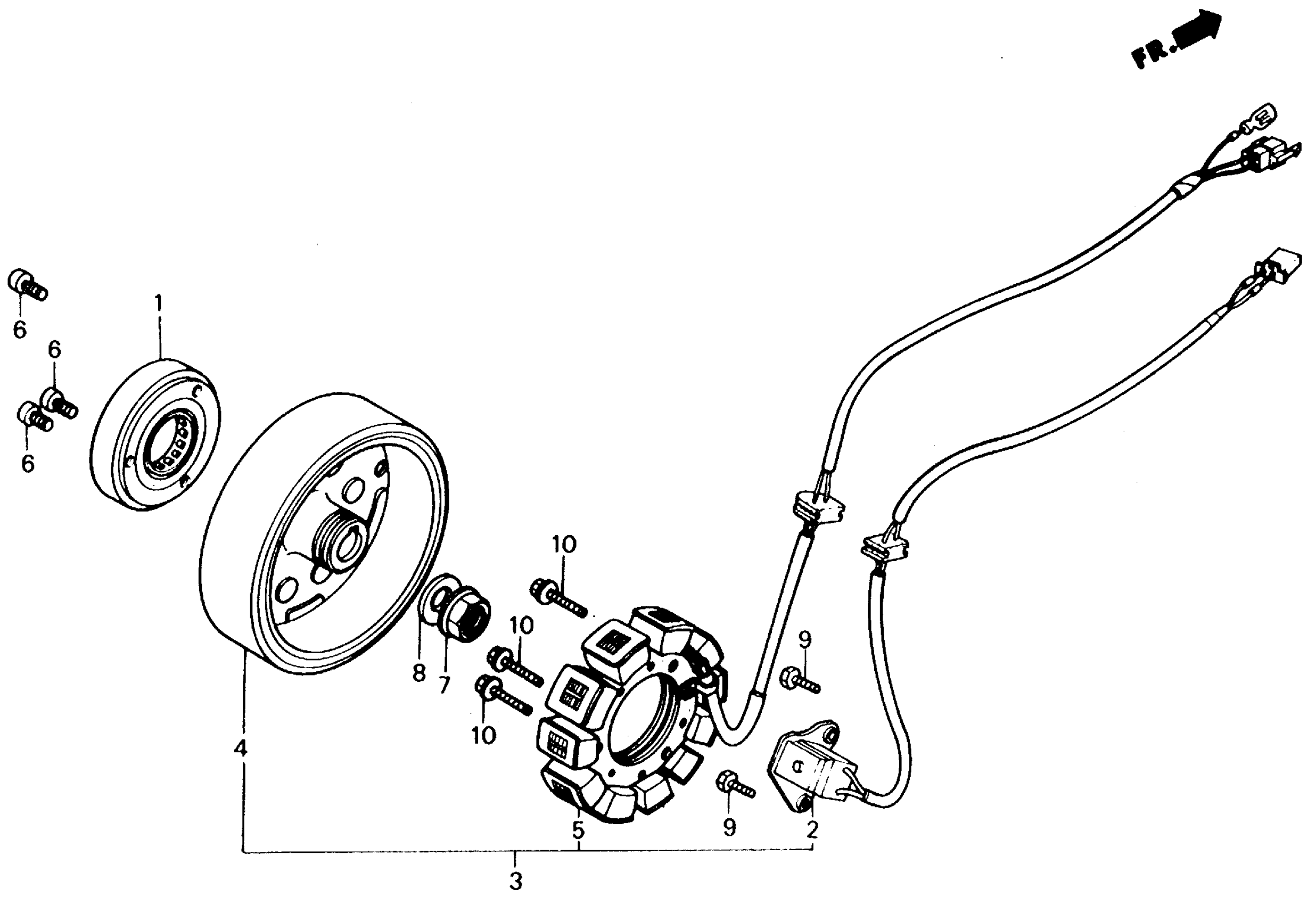

Honda CH250A (87) ELITE 250, JPN, VIN# JH2MF010-HK200001 TO JH2MF010-HK203692 ALTERNATOR Diagram

#

Description
Price

1

CLUTCH ASSY., STARTER ONE-WAY

28120-KM1-013

Unavailable

2

GENERATOR ASSY., PULSE This part replaces 30300-KM1-004.

30300-KM1-014

Unavailable

2

GENERATOR ASSY., PULSE

30300-KM1-014

Unavailable

3

ALTERNATOR This part replaces 31100-KM1-014.

31100-KM1-034

Unavailable

4

FLYWHEEL This part replaces 31110-KM1-014.

31110-KM1-024

Unavailable

4

FLYWHEEL

31110-KM1-024

Unavailable

5

STATOR

31120-KM1-004

Unavailable

6

BOLT, SOCKET (8X18)

90010-KM1-000

$5.25

7

NUT, FLANGE (16X1.0) This part replaces 90203-KM1-020.

90203-KRJ-791

$4.21

8

WASHER, THRUST (16.2X30X2.0)

90431-KM1-010

$3.88

9

BOLT, HEX. (5X16) This part replaces 92000-05016-0A.

92101-05016-0A

$1.49

9

BOLT, HEX. (5X16)

92101-05016-0A

$1.49

10

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

10

BOLT, FLANGE (6X32)

96001-06032-00

$1.49
