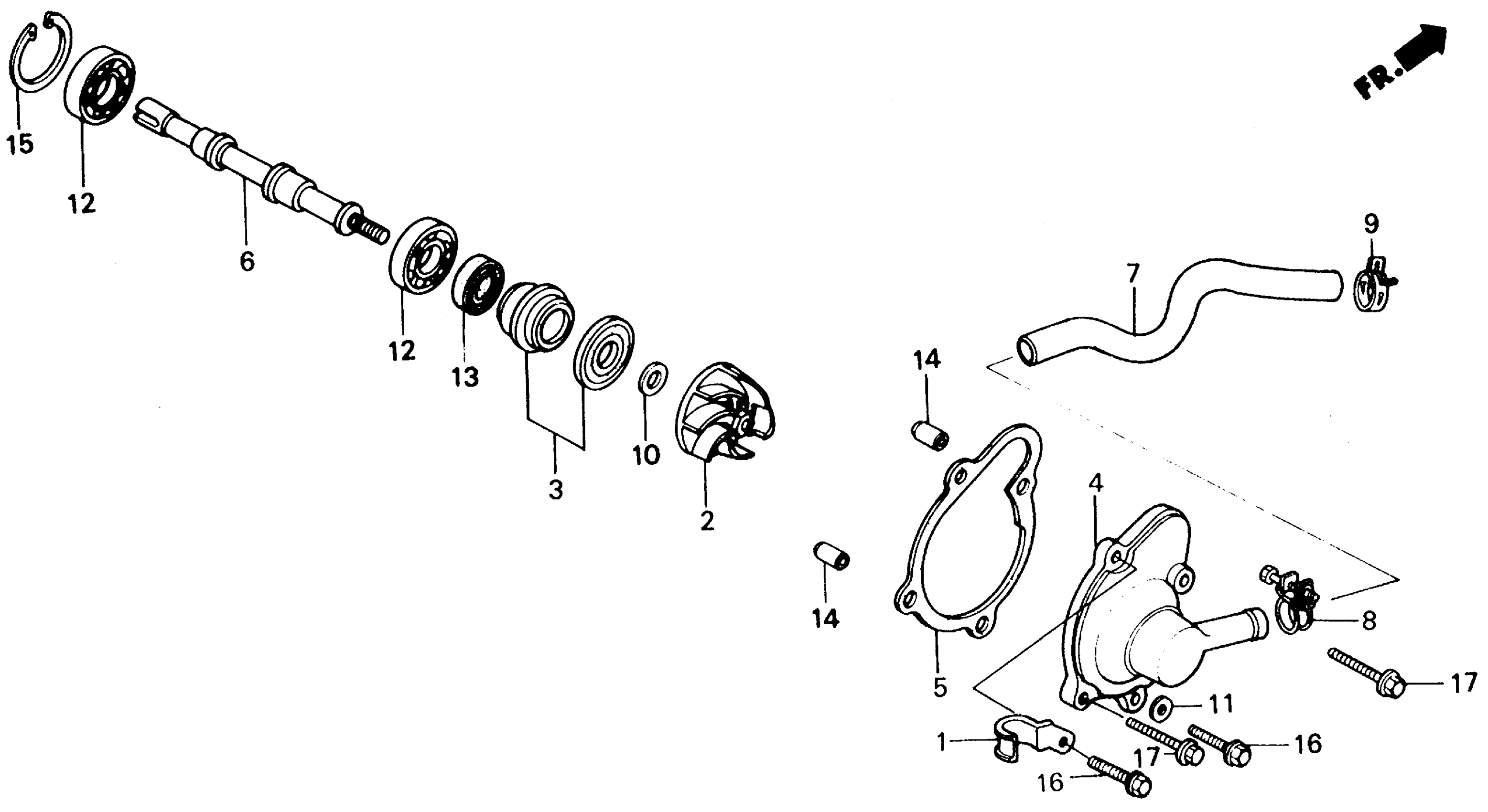

Honda CH250A (86) ELITE 250, JPN, VIN# JH2MF010-GK100001 TO JH2MF010-GK106405 WATER PUMP Diagram

#

Description
Price

1

CLAMP, DRAIN TUBE

17369-KM1-670

Unavailable

2

IMPELLER, WATER PUMP This part replaces 19215-KM1-000.

19215-KM1-010

Unavailable

2

IMPELLER, WATER PUMP

19215-KM1-010

Unavailable

3

SEAL, MECHANICAL

19217-657-023

$53.27

4

COVER, WATER PUMP

19221-KM1-000

Unavailable

5

GASKET, WATER PUMP This part replaces 19229-KJ9-000.

19229-KJ9-306

Unavailable

5

GASKET, WATER PUMP

19229-KJ9-306

Unavailable

6

SHAFT, WATER PUMP

19231-KM1-010

Unavailable

7

HOSE A, WATER (NOT AVAILABLE)

19501-KM1-000

Unavailable

8

CLAMP, WATER HOSE (25MM)

19506-KM1-003

$8.69

9

CLIP B, HOSE

19514-ME9-003

$5.64

10

WASHER (7.2X13X1.2)

90423-KJ9-000

$2.34

11

WASHER A (6MM)

90478-700-000

$1.49

12

BEARING, RADIAL BALL (6800) (TOYO)

91004-KM1-003

Unavailable

12

BEARING, RADIAL BALL (6800) (TOYO) This part replaces 91004-KM1-004.

91004-KM1-003

Unavailable

12

BEARING, RADIAL BALL (6800) (TOYO) This part replaces 91004-KM1-005.

91004-KM1-003

Unavailable

13

OIL SEAL (10X20X5) (ARAI) This part replaces 91201-KM1-003.

91202-HC0-003

$3.54

13

OIL SEAL (10X20X5) (ARAI) This part replaces 91201-KM1-005.

91202-HC0-003

$3.54

13

OIL SEAL (10X20X5) (ARAI)

91202-HC0-003

$3.54

14

PIN, DOWEL (8X14)

94301-08140

$2.25

15

CIRCLIP (INNER) (19MM)

94520-19000

Unavailable

16

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

16

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

17

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

17

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
