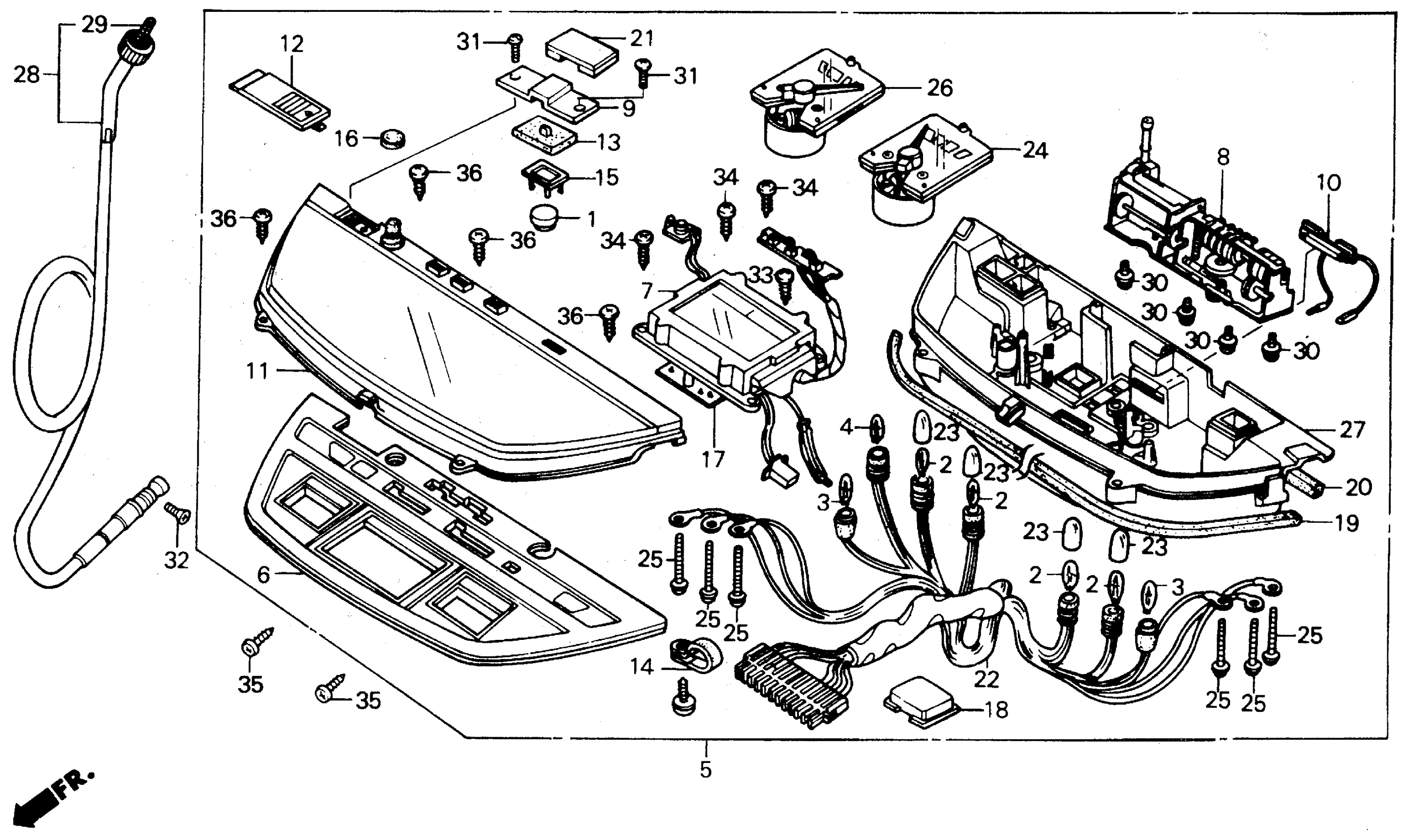

Honda CH250A (86) ELITE 250, JPN, VIN# JH2MF010-GK100001 TO JH2MF010-GK106405 SPEEDOMETER 85-86 Diagram

#

Description
Price

1

BATTERY (1.5V) (NOT AVAILABLE)

31550-KJ9-700

Unavailable

2

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

2

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

2

BULB (12V3.4W2CP) (158) (NS)

37237-SA5-003

$4.17

2

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

3

BULB, WEDGE BASE (T6.5) (12V 3W)

34908-KM1-671

$7.08

4

BULB, WEDGE BASE (12V 1.7W) (STANLEY)

34908-MB9-871

$2.78

5

SPEEDOMETER ASSY.

37200-KM1-771

Unavailable

6

PLATE, REFLECTING | Use up to Frame SN GK101898

37204-KM1-671

$34.85

6

PLATE, REFLECTING (NOT AVAILABLE) | Use from Frame SN GK101899

37204-KM1-672

Unavailable

7

CLOCK, SPEEDOMETER (NOT AVAILABLE)

37205-KM1-671

Unavailable

8

ODOMETER ASSY.

37207-KM1-671

Unavailable

9

LID (NOT AVAILABLE)

37208-KM1-670

Unavailable

10

SWITCH, SPEEDOMETER REED

37209-KM1-670

Unavailable

11

LENS (NOT AVAILABLE) | Use up to Frame SN GK101898

37211-KM1-671

Unavailable

11

LENS (NOT AVAILABLE) | Use from Frame SN GK101899

37211-KM1-672

Unavailable

12

PANEL B (NOT AVAILABLE)

37213-KM1-670

Unavailable

13

GROMMET, BATTERY (NOT AVAILABLE)

37214-KM1-670

Unavailable

14

CLAMP

37215-KM1-670

$1.88

15

HOLDER, BATTERY

37216-KM1-670

Unavailable

16

KNOB, TRIP METER (NOT AVAILABLE)

37217-KM1-670

Unavailable

17

SWITCH (NOT AVAILABLE)

37218-KM1-670

Unavailable

18

CAP

37219-KM1-670

Unavailable

19

GASKET A | Use up to Frame SN GK101898 This part replaces 37220-KM1-670.

37220-KM1-671

Unavailable

19

GASKET A

37220-KM1-671

Unavailable

20

GASKET B (NOT AVAILABLE)

37221-KM1-670

Unavailable

21

SEAL (NOT AVAILABLE)

37222-KM1-670

Unavailable

22

SOCKET

37223-KM1-770

Unavailable

23

CAP, WEDGE BASE BULB (NOT AVAILABLE)

37224-KM1-770

Unavailable

24

METER ASSY., FUEL

37300-KM1-771

Unavailable

25

SCREW-WASHER (3X22)

37305-KE5-008

$2.75

26

METER ASSY., TEMPERATURE

37450-KM1-671

Unavailable

27

CASE | Use up to Frame SN GK101898 This part replaces 37617-KM1-671.

37617-KM1-672

Unavailable

27

CASE

37617-KM1-672

Unavailable

28

CABLE, SPEEDOMETER This part replaces 44830-KM1-671.

44830-KM1-880

Unavailable

28

CABLE, SPEEDOMETER

44830-KM1-880

Unavailable

29

CABLE (INNER)

44831-KM1-671

Unavailable

30

SCREW, FLANGE (4X10)

90101-GG2-008

Unavailable

31

SCREW, PAN (2.3X7)

90107-GC8-000

$2.92

32

SCREW, OVAL (5X18)

93700-05018-0A

$1.49

33

SCREW, TAPPING (3X8)

93901-22120

$6.31

34

SCREW, TAPPING (4X16)

93901-24410

$1.49

35

SCREW, TAPPING (4X12)

93903-24320

$1.49

36

SCREW, TAPPING (4X16)

93903-24420

$1.49
