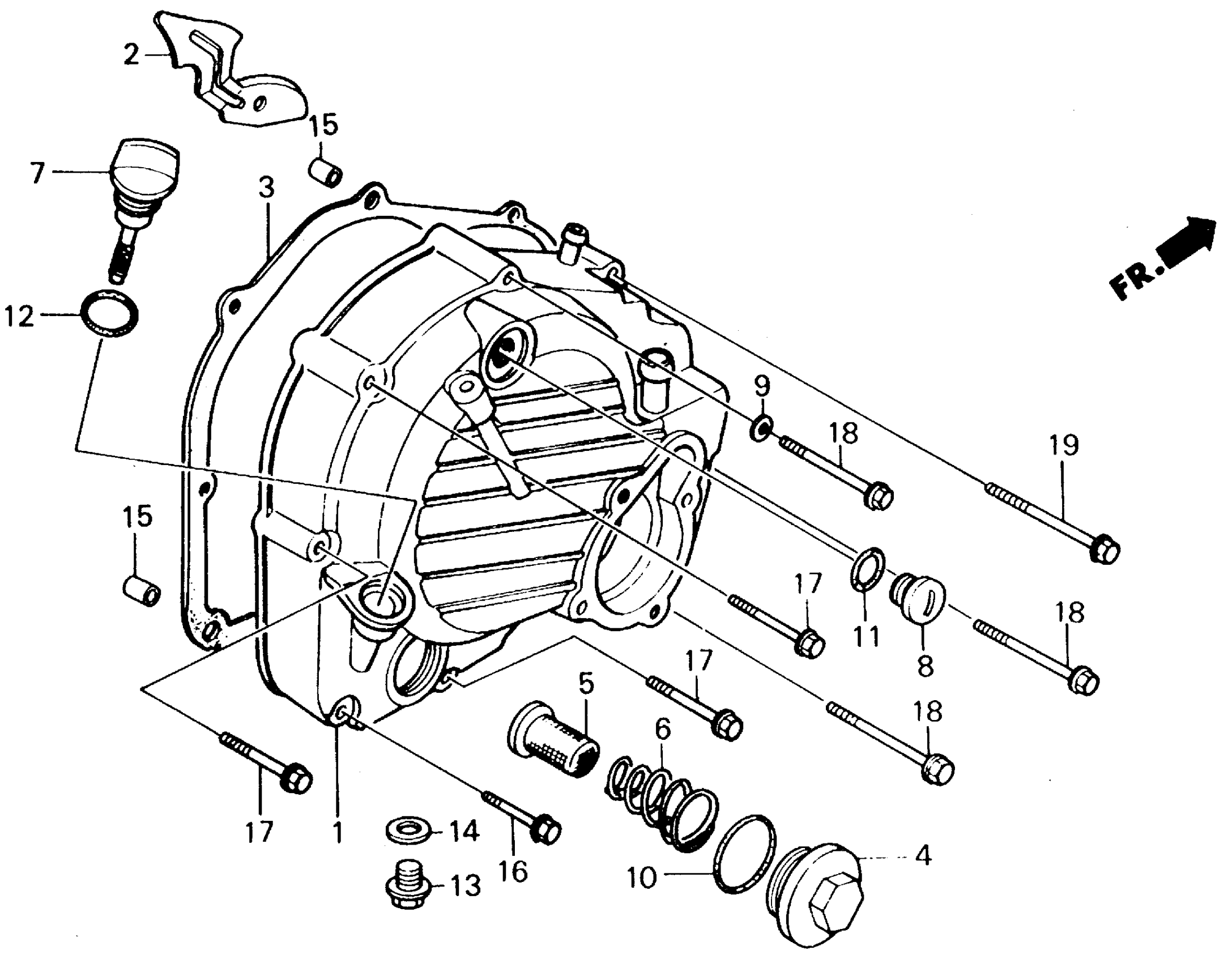

Honda CH250A (86) ELITE 250, JPN, VIN# JH2MF010-GK100001 TO JH2MF010-GK106405 RIGHT CRANKCASE COVER Diagram

COVER, R. This part replaces 11330-KM1-670.

11330-KM1-672

Unavailable

COVER, R. This part replaces 11330-KM1-671.

11330-KM1-672

Unavailable

COVER, R.

11330-KM1-672

Unavailable

PLATE, BREATHER

11338-KM1-010

$4.44

GASKET, R. COVER This part replaces 11394-KM1-010.

11394-KS4-692

$14.77

GASKET, R. COVER This part replaces 11394-KM1-020.

11394-KS4-692

$14.77

GASKET, R. COVER This part replaces 11394-KM1-306.

11394-KS4-692

$14.77

GASKET, R. COVER This part replaces 11394-KS4-690.

11394-KS4-692

$14.77

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

CAP, VALVE ADJ.

12361-300-000

Unavailable

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

SCREEN, OIL FILTER

15421-107-000

$6.31

SPRING, OIL FILTER SCREEN

15426-KM1-003

Unavailable

DIPSTICK, OIL

15651-KM1-000

$12.66

CAP, ALTERNATOR This part replaces 90084-428-000.

90084-471-000

Unavailable

CAP, ALTERNATOR

90084-471-000

Unavailable

WASHER A (6MM)

90478-700-000

$1.49

O-RING (30.8MM)

91302-001-020

$3.75

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (18X3)

91307-035-000

$2.92

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

BOLT, FLANGE (6X70) This part replaces 96000-06070-00.

96001-06070-00

$1.95

BOLT, FLANGE (6X70)

96001-06070-00

$1.95

BOLT, FLANGE (6X80) This part replaces 96000-06080-00.

96001-06080-07

$2.23

BOLT, FLANGE (6X80) This part replaces 96000-06080-07.

96001-06080-07

$2.23

BOLT, FLANGE (6X80)

96001-06080-07

$2.23
