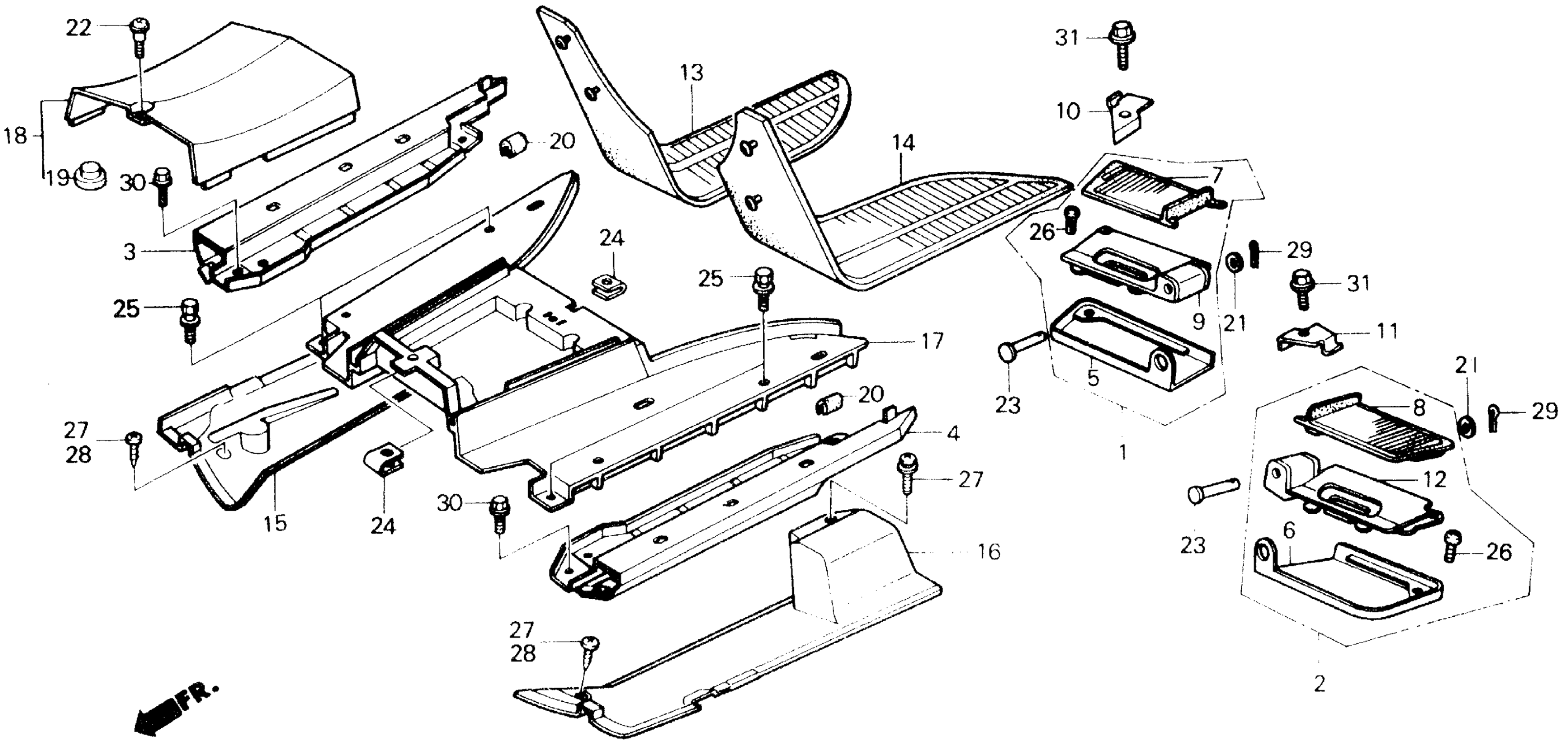

Honda CH250A (86) ELITE 250, JPN, VIN# JH2MF010-GK100001 TO JH2MF010-GK106405 FLOOR PANEL Diagram

#

Description
Price

1

STEP ASSY., R. PILLION *NH135PA* (PEARL SATIN WHITE) (NOT AVAILABLE)

50610-KM1-010ZB

Unavailable

1

STEP ASSY., R. PILLION *NH163P* (PEARL GOLD BLACK) (NOT AVAILABLE)

50610-KM1-010ZF

Unavailable

2

STEP ASSY., L. PILLION *NH135PA* (PEARL SATIN WHITE) (NOT AVAILABLE)

50611-KM1-010ZB

Unavailable

2

STEP ASSY., L. PILLION *NH163P* (PEARL GOLD BLACK)

50611-KM1-010ZF

Unavailable

3

BOARD, R. FLOOR *NH135PA* (PEARL SATIN WHITE) (NOT AVAILABLE)

50612-KM1-000ZE

Unavailable

3

BOARD,R.FLO*NH-1* This part replaces 50612-KM1-000ZH.

50612-KM1-000ZD

Unavailable

4

BOARD, L. FLOOR *NH135PA* (PEARL SATIN WHITE) (NOT AVAILABLE)

50614-KM1-000ZE

Unavailable

4

BOARD, L. *NH1* This part replaces 50614-KM1-000ZH.

50614-KM1-000ZD

Unavailable

5

COVER, R. PILLION STEP *NH135PA* (PEARL SATIN WHITE) (NOT AVAILABLE)

50619-KM1-310ZB

Unavailable

5

COVER, R. PILLION STEP *NH163P* (PEARL GOLD BLACK) (NOT AVAILABLE)

50619-KM1-310ZF

Unavailable

6

COVER, L. PILLION STEP *NH135PA* (PEARL SATIN WHITE)

50620-KM1-310ZB

Unavailable

6

COVER, L. PILLION STEP *NH163P* (PEARL GOLD BLACK) (NOT AVAILABLE)

50620-KM1-310ZF

Unavailable

7

RUBBER, R. PILLION STEP (NOT AVAILABLE)

50710-KM1-300

Unavailable

8

RUBBER, L. PILLION STEP (NOT AVAILABLE)

50712-KM1-300

Unavailable

9

BASE, R. PILLION STEP

50715-KM1-300

Unavailable

10

SPRING, R. PILLION STEP

50716-KM1-000

Unavailable

11

SPRING, L. PILLION STEP

50717-KM1-000

Unavailable

12

BASE, L. PILLION STEP

50718-KM1-300

Unavailable

13

FLOOR MAT, R.

64307-KM1-000

Unavailable

14

FLOOR MAT, L.

64308-KM1-000

Unavailable

15

COVER, R. FLOOR (LOWER) (NOT AVAILABLE)

64311-KM1-000

Unavailable

16

COVER, L. FLOOR (LOWER)

64312-KM1-000

Unavailable

17

PANEL, FLOOR *NH158* (CARBON GRAY)

64320-KM1-000ZE

Unavailable

18

COVER, BATTERY *NH158* (CARBON GRAY) (NOT AVAILABLE)

80154-KM1-000ZE

Unavailable

19

RUBBER, BATTERY MOUNTING

80155-KM1-000

Unavailable

20

RUBBER, BODY COVER STOPPER

83501-KM1-300

Unavailable

21

WASHER (7MM) (NOT AVAILABLE)

90026-888-000

Unavailable

22

BOLT, BATTERY COVER SETTING

90112-GC1-000

$4.65

23

PIN, PILLION STEP SETTING (NOT AVAILABLE)

90131-KM1-000

Unavailable

24

NUT, CLIP (6MM) | Use up to Frame SN GK101898

90344-692-003

$5.55

24

NUT, CLIP (6MM) | Use from Frame SN GK101899

90344-GM9-000

$4.75

25

BOLT-WASHER (6X16)

93404-06016-00

$1.55

25

BOLT-WASHER (6X16) This part replaces 93494-06016-00.

93404-06016-00

$1.55

26

SCREW, PAN (5X8)

93500-05008-0A

$1.49

27

SCREW-WASHER (5X10)

93891-05010-08

$1.49

29

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

29

PIN, COTTER (1.6X25)

94201-16250

$1.49

30

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

30

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

31

BOLT, FLANGE (6X10) This part replaces 95900-06010-07.

95701-06010-07

$1.62

31

BOLT, FLANGE (6X10)

95701-06010-07

$1.62
