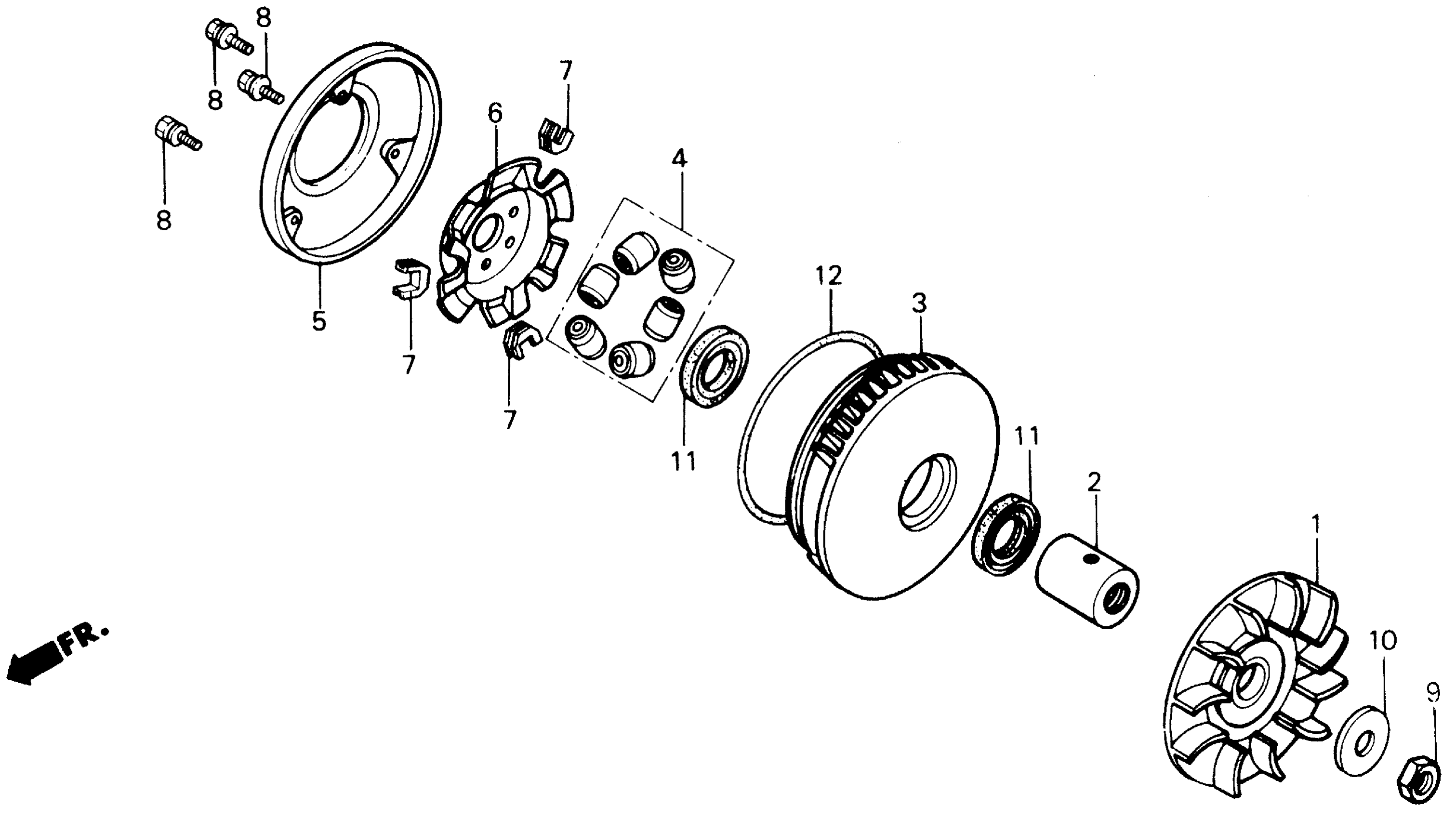

Honda CH250A (86) ELITE 250, JPN, VIN# JH2MF010-GK100001 TO JH2MF010-GK106405 DRIVE FACE Diagram

FACE, DRIVE This part replaces 22102-KM1-000.

22102-KM1-010

$42.38

FACE, DRIVE

22102-KM1-010

$42.38

BOSS, DRIVE FACE

22105-KAB-000

Unavailable

BOSS, DRIVE FACE This part replaces 22105-KM1-000.

22105-KAB-000

Unavailable

FACE, MOVABLE DRIVE

22110-KM1-000

$95.23

ROLLER SET, WEIGHT This part replaces 22123-KM1-306.

22123-KM1-316

Unavailable

ROLLER SET, WEIGHT

22123-KM1-316

Unavailable

SEAL, MOVABLE FACE

22126-KM1-000

$14.15

PLATE, RAMP

22131-KAB-000

Unavailable

PLATE, RAMP This part replaces 22131-KM1-000.

22131-KAB-000

Unavailable

PIECE, SLIDE This part replaces 22132-KM1-000.

22132-KAB-000

Unavailable

PIECE, SLIDE

22132-KAB-000

Unavailable

PIECE, SLIDE This part replaces 22132-KM1-010.

22132-KAB-000

Unavailable

BOLT-WASHER (4X10) This part replaces 90005-187-000.

90005-GAH-600

$1.62

NUT, SPECIAL (14MM)

90201-KBP-900

$4.99

NUT, SPECIAL (14MM) This part replaces 90201-KM1-000.

90201-KBP-900

$4.99

WASHER (14.2X30X2)

90402-KM1-000

Unavailable

OIL SEAL (27X34X3.5) (NOK)

91203-KM1-003

$7.19

OIL SEAL (27X34X3.5) (NOK) This part replaces 91203-KM1-005.

91203-KM1-003

$7.19

O-RING (111X2.6) (ARAI) This part replaces 91305-KM1-003.

91305-KM1-005

$5.44

O-RING (111X2.6) (ARAI)

91305-KM1-005

$5.44
