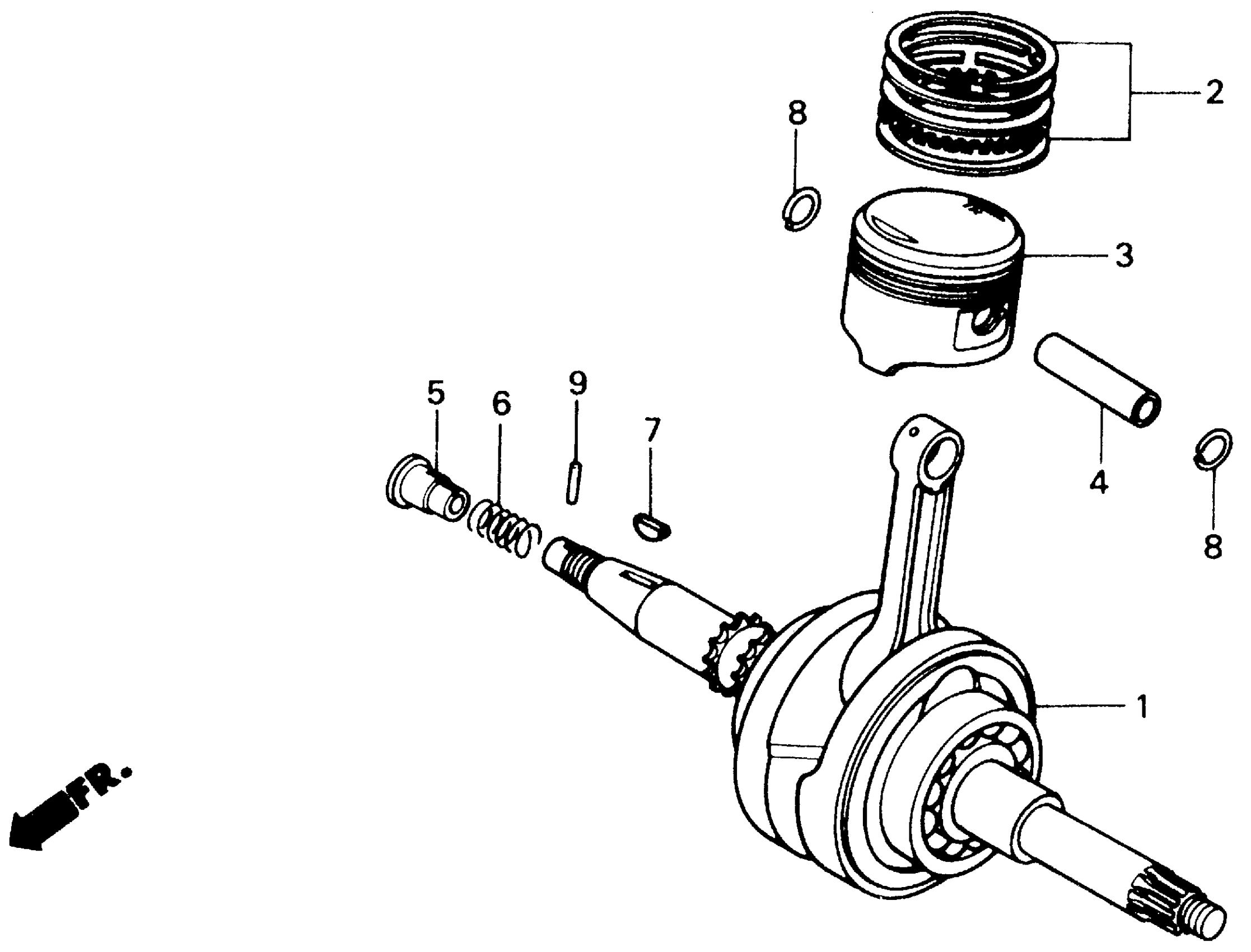

Honda CH250A (86) ELITE 250, JPN, VIN# JH2MF010-GK100001 TO JH2MF010-GK106405 CRANKSHAFT Diagram

#

Description
Price

NI

BEARING, RADIAL BALL (63/28) This part replaces 91001-KY7-003.

91009-HC0-003

$31.43

NI

BEARING, RADIAL BALL (63/28) This part replaces 91001-440-003.

91009-HC0-003

$31.43

NI

BEARING, RADIAL BALL (63/28)

91009-HC0-003

$31.43

1

CRANKSHAFT This part replaces 13000-KM1-020.

13000-KM1-305

Unavailable

1

CRANKSHAFT

13000-KM1-305

Unavailable

2

RING SET, PISTON (STD) This part replaces 13011-KM1-305.

13011-KFR-700

Unavailable

2

RING SET, PISTON (0.25) (RIKEN) | (Optional). This part replaces 13021-KM1-305.

13021-KAB-305

Unavailable

2

RING SET, PISTON (0.50) (RIKEN) | (Optional). This part replaces 13031-KM1-305.

13031-KAB-305

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.75) | (Optional). This part replaces 13041-KM1-305.

13041-KAB-305

Unavailable

2

RING SET, PISTON (1.00) | (Optional). This part replaces 13051-KM1-305.

13051-KAB-305

Unavailable

2

RING SET, PISTON (STD) This part replaces 13011-KAB-305.

13011-KFR-700

Unavailable

2

RING SET, PISTON (STD)

13011-KFR-700

Unavailable

2

RING SET, PISTON (OS 0.25) | (Optional).

13021-KAB-305

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional).

13031-KAB-305

Unavailable

2

RING SET, PISTON (OS 0.75) | (Optional).

13041-KAB-305

Unavailable

2

RING SET, PISTON (1.00) | (Optional).

13051-KAB-305

Unavailable

3

PISTON (STD) This part replaces 13101-KM1-670.

13101-KM1-000

Unavailable

3

PISTON (OS 0.25) (NOT AVAILABLE) | (Optional).

13102-KM1-305

Unavailable

3

PISTON (OS 0.50) (NOT AVAILABLE) | (Optional).

13103-KM1-305

Unavailable

3

PISTON (OS 0.75) (NOT AVAILABLE) | (Optional).

13104-KM1-305

Unavailable

3

PISTON (1.00) (NOT AVAILABLE) | (Optional).

13105-KM1-305

Unavailable

4

PIN, PISTON

13111-KM1-000

$20.97

5

THROUGH, OIL

15441-149-000

$10.12

6

SPRING, OIL THROUGH

15447-149-000

$2.92

7

KEY, WOODRUFF (25X14X4) This part replaces 90701-HB6-000.

90701-HB6-010

$3.78

7

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

7

KEY, WOODRUFF (25X14X4) This part replaces 90741-003-010.

90701-HB6-010

$3.78

8

CLIP, PISTON PIN (17MM)

94601-17000

$1.56

9

ROLLER (2X13.8)

96220-20138

$1.49
